10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
1 / 5
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers
10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers

10G SFP+ BIDI 20km 1270nm/1330nm LC DDM WDM Fiber Optic Transceivers

Send Inquiry

Product Description

Product Image
Specification

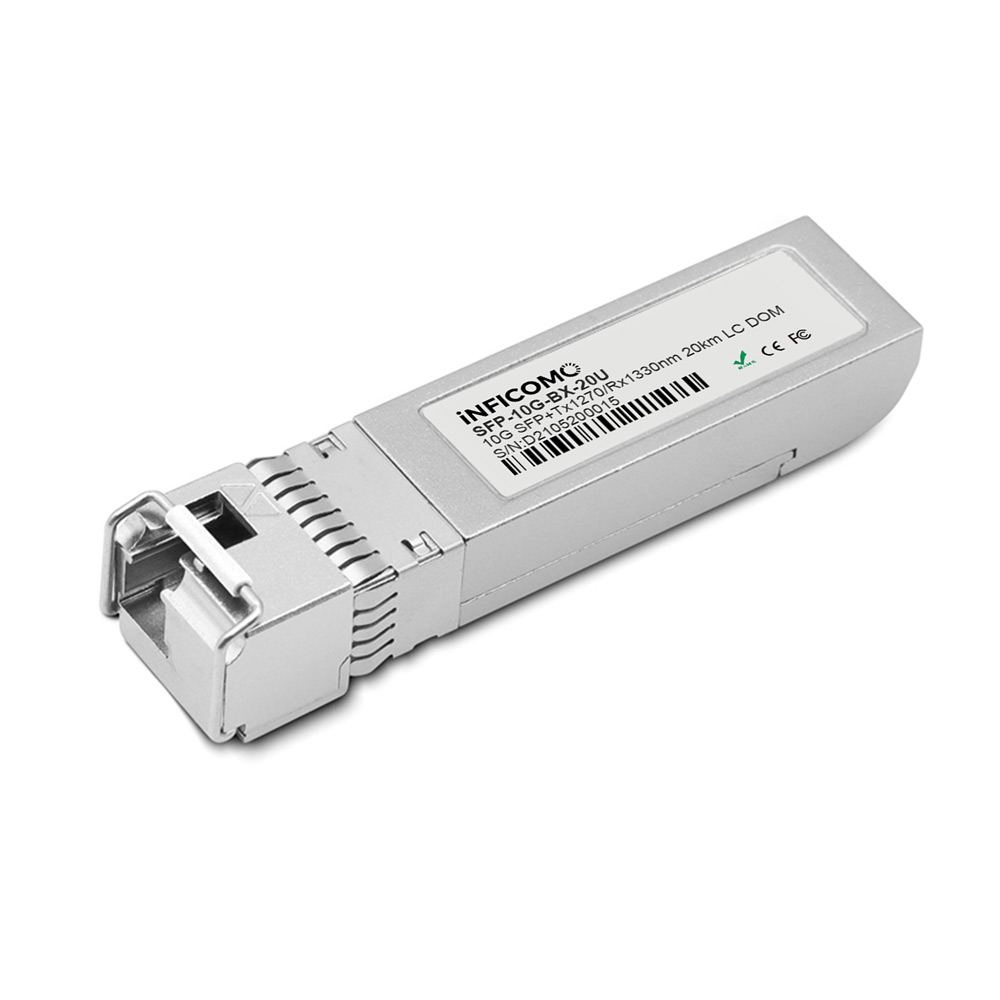

SFP-10G-BX-20U
Part No.
SFP-10G-BX-20U
Form Factor
SFP+
Max. Data Rate
10.3125Gbps
Wavelength
1270nm-TX/1330nm-RX
Max. Distance
20KM
Connector
Simplex LC
Optical Comp.
DFB
Media
SMF
DOM Support
Yes
TX Power
-6~3dBm
RX Sensitivity
< -14.4dBm
Temp. Range
0 to 70°C (32 to 158°F)
Protocols
SFP+ MSA Compliant, CPRI, eCPRI

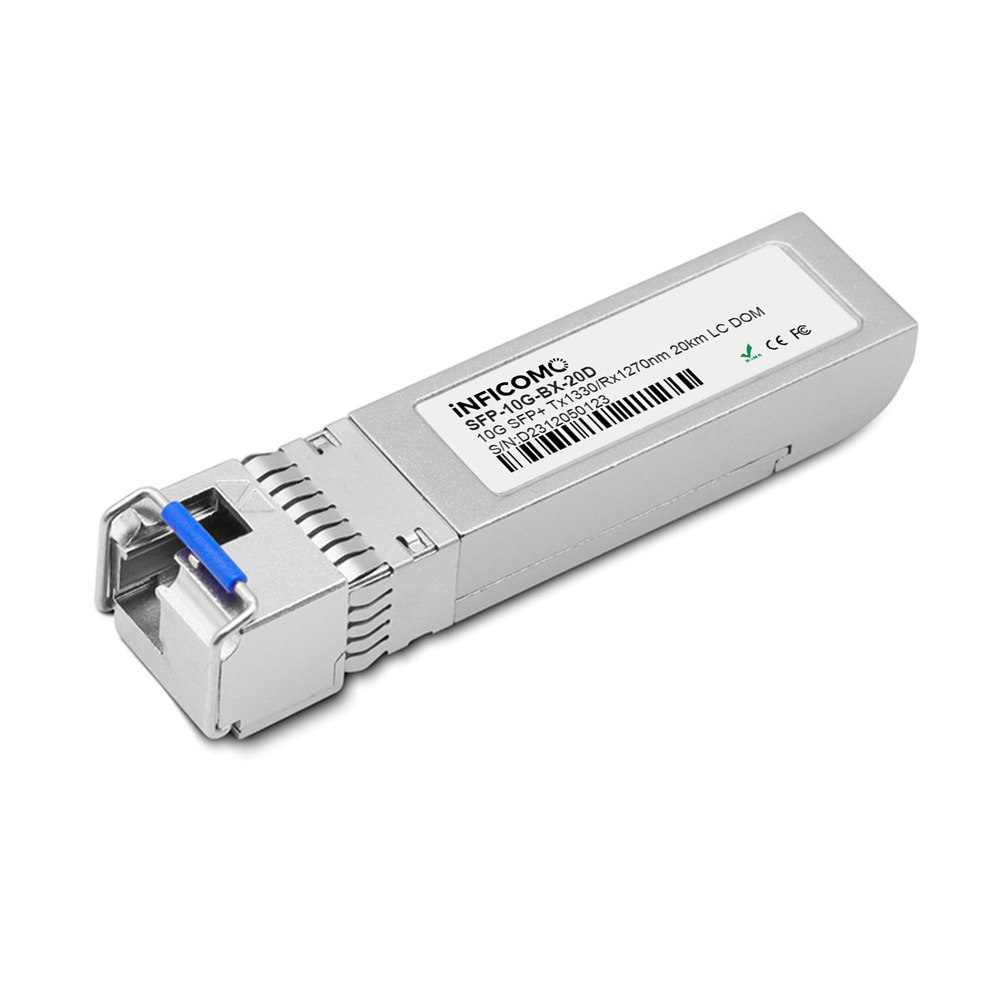

SFP-10G-BX-20D
Part No.
SFP-10G-BX-20D
Form Factor
SFP+
Max. Data Rate
10.3125Gbps
Wavelength
1330nm-TX/1270nm-RX
Max. Distance
20KM
Connector
Simplex LC
Optical Comp.
DFB
Media
SMF
DOM Support
Yes
TX Power
-6~3dBm
RX Sensitivity
< -14.4dBm
Temp. Range
0 to 70°C (32 to 158°F)
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Quality Guaranteed
Newly-Made, Quality Guaranteed
Proven Interoperability
Tested in Host Devices for Proven Interoperability
Reliability Testing
Comprehensive Testing Increases Reliability
Order Info
Model Introduction
SFP-10G-BX-10U 10G SFP+ BiDi Tx1270/Rx1330nm 10km LC DOM
SFP-10G-BX-10D 10G SFP+ BiDi Tx1330/Rx1270nm 10km LC DOM
SFP-10G-BX-20U 10G SFP+ BiDi Tx1270/Rx1330nm 20km LC DOM
SFP-10G-BX-20D 10G SFP+ BiDi Tx1330/Rx1270nm 20km LC DOM
SFP-10G-BX-40U 10G SFP+ BiDi Tx1270/Rx1330nm 40km LC DOM
SFP-10G-BX-40D 10G SFP+ BiDi Tx1330/Rx1270nm 40km LC DOM
SFP-10G-BX-60U 10G SFP+ BiDi Tx1270/Rx1330nm 60km LC DOM
SFP-10G-BX-60D 10G SFP+ BiDi Tx1330/Rx1270nm 60km LC DOM
SFP-10G-BX-80U 10G SFP+ BiDi Tx1490/Rx1550nm 80km LC DOM
SFP-10G-BX-80D 10G SFP+ BiDi Tx1550/Rx1490nm 80km LC DOM
SFP-10G-BX-100U 10G SFP+ BiDi Tx1490/Rx1550nm 100km LC DOM
SFP-10G-BX-100D 10G SFP+ BiDi Tx1550/Rx1490nm 100km LC DOM
