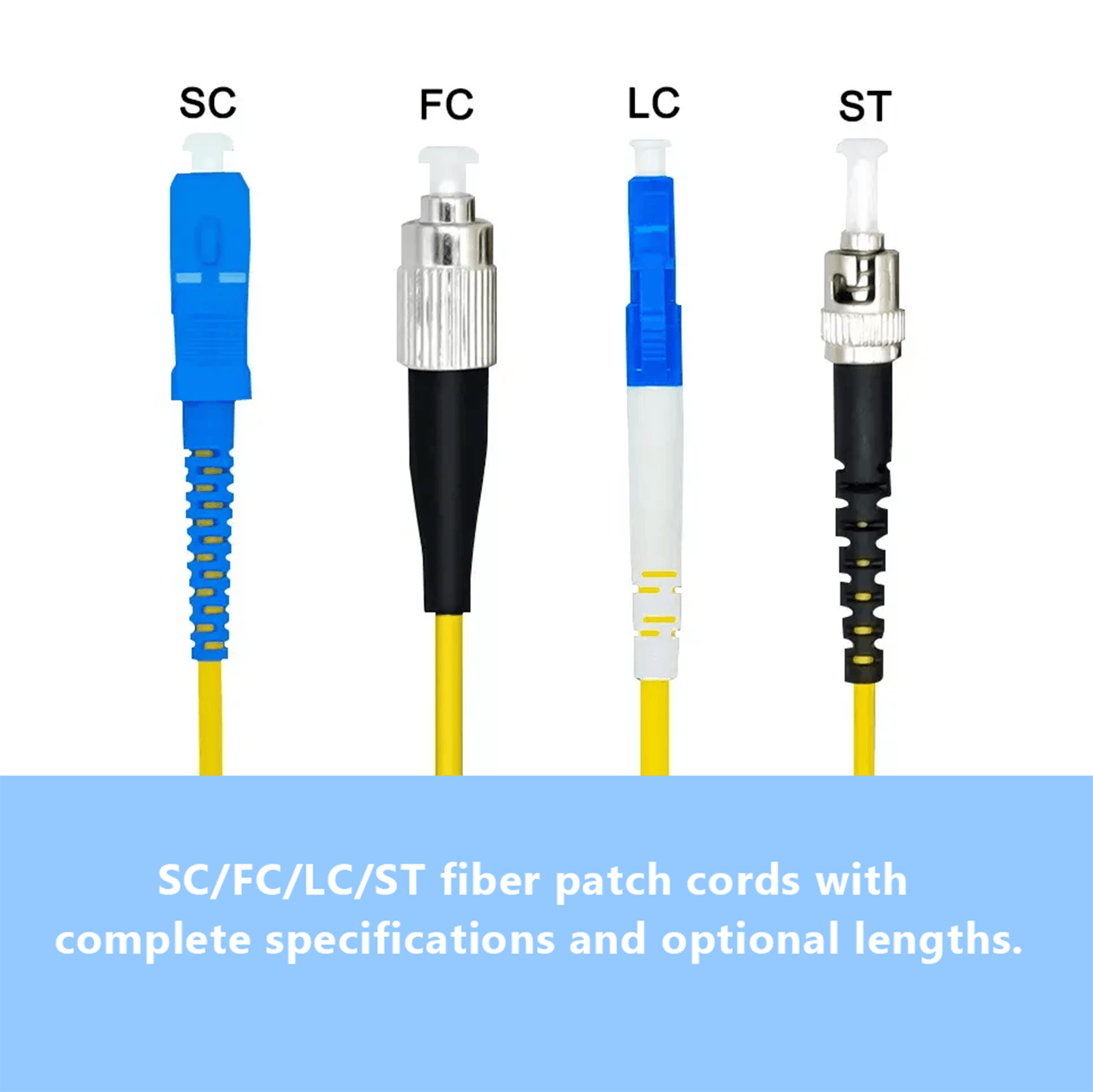

Fiber optic connector, also known as fiber optical patchcord, is a component for detachable connection between fiber and fiber. It precisely connects the two end faces of the fiber to maximize the coupling of the light energy output by the fiber to the receiving fiber, forming a continuous optical path.

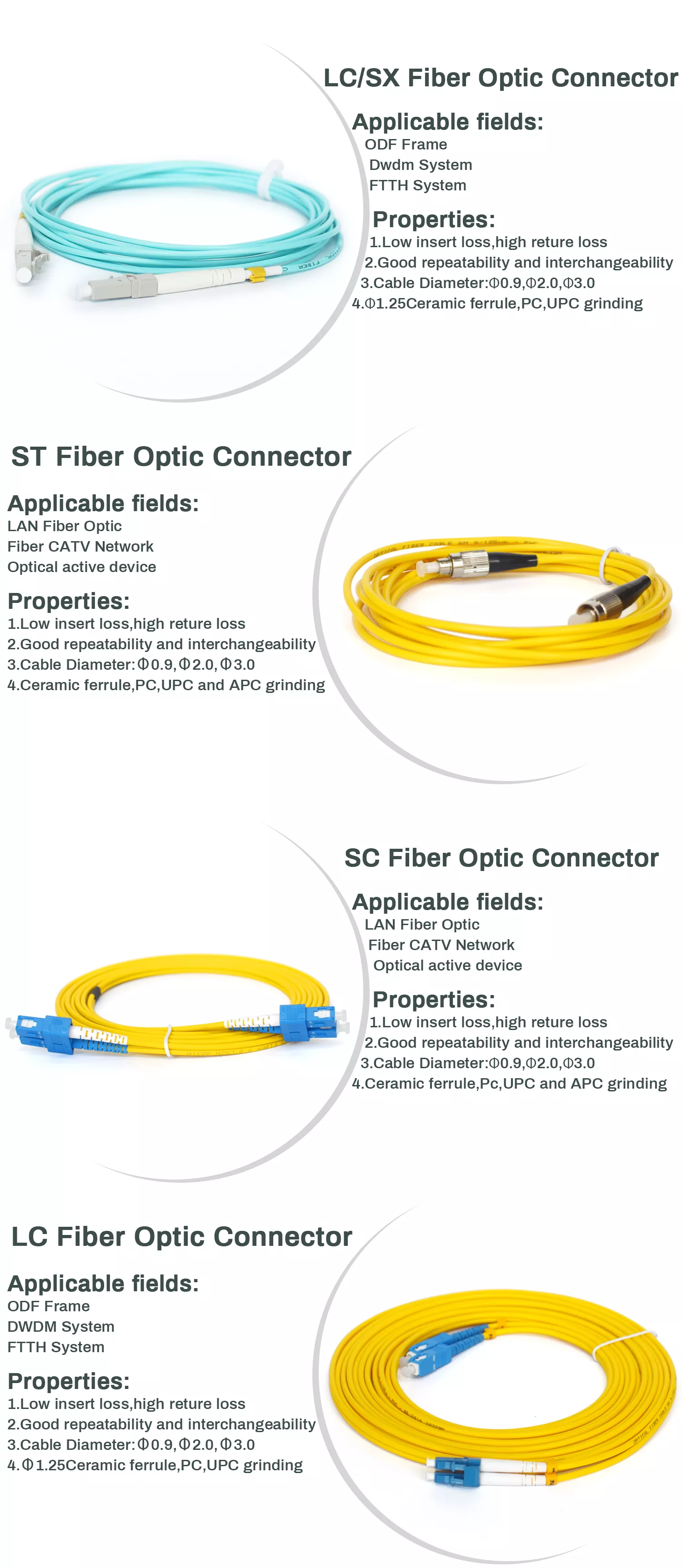

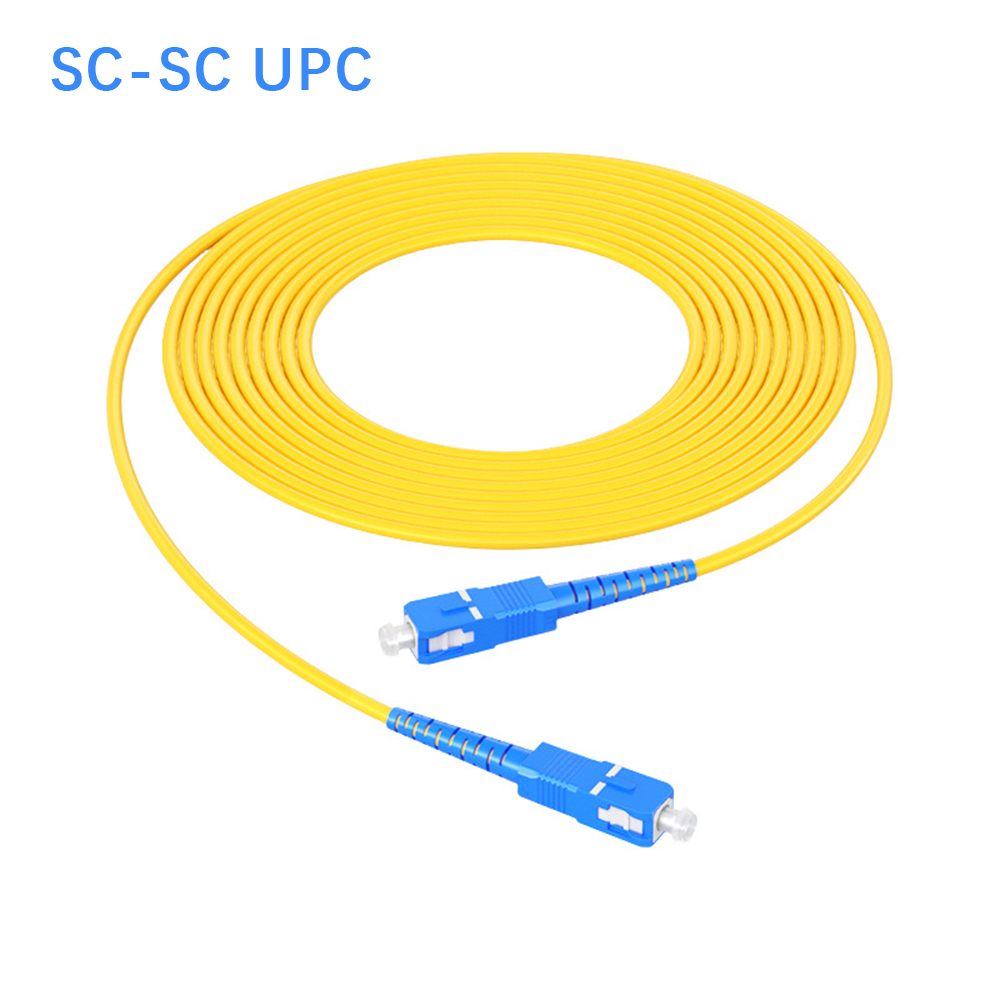

| SC Fiber Optic Connector |
| Connector |
PC (SM) |
UPC (SM) |
APC (SM) |
PC (MM) |
| Return Loss (dB) |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 35 |
| Insertion Loss (dB) |
≤ 0.2 (Typical) / ≤ 0.3 (MAX) |
| Repeatability (dB) |
≤ 0.1 |
| Durability (times) |
≥ 500 |
| Operating Temp (°C) |
-25 ~ +70 |
| Tensile Strength (N) |
≥ 90 (φ3) / ≥ 70 (φ2) |

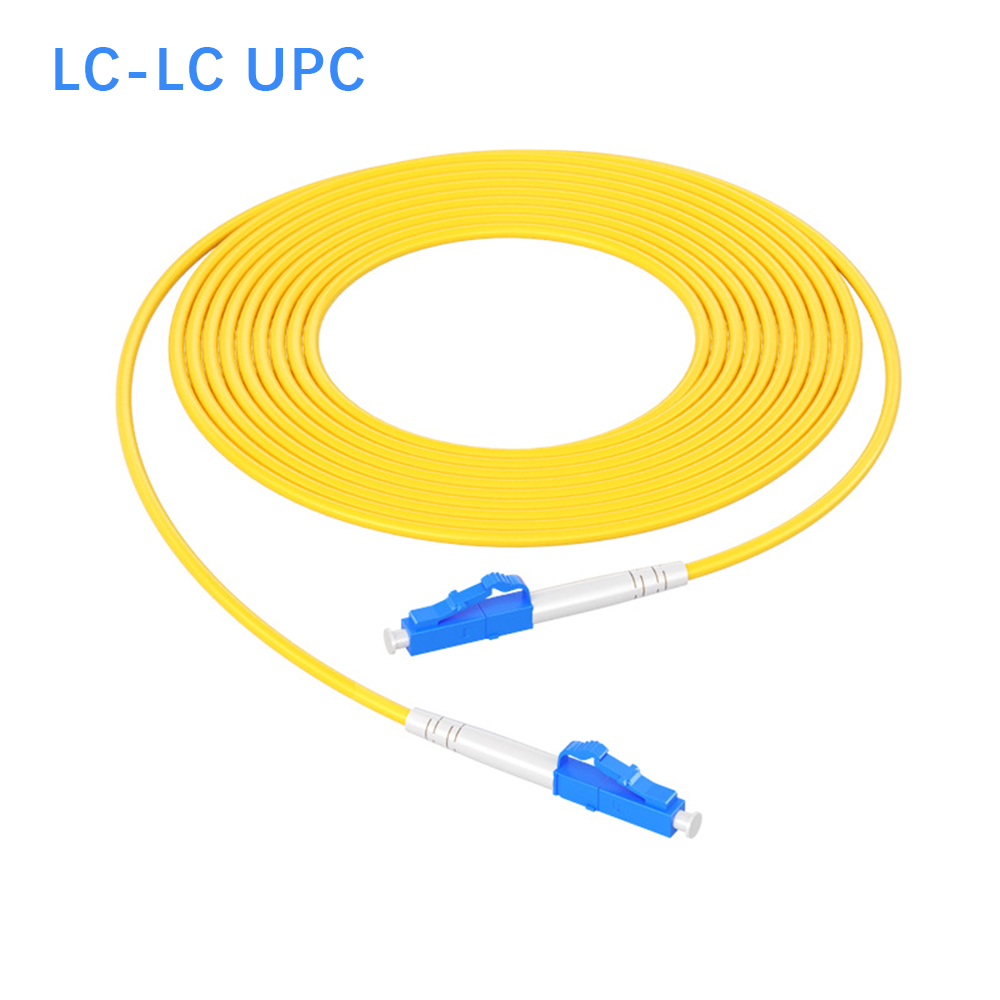

| LC Fiber Optic Connector |
| Connector |
PC (SM) |
UPC (SM) |
PC (MM) |
| Return Loss (dB) |
≥ 45 |
≥ 50 |
≥ 35 |
| Insertion Loss (dB) |
≤ 0.2 (Typical) / ≤ 0.3 (MAX) |
| Repeatability (dB) |
≤ 0.1 |
| Durability (times) |
≥ 500 |
| Operating Temp (°C) |
-25 ~ +70 |
| Tensile Strength (N) |
≥ 90 (φ3) / ≥ 70 (φ2) |

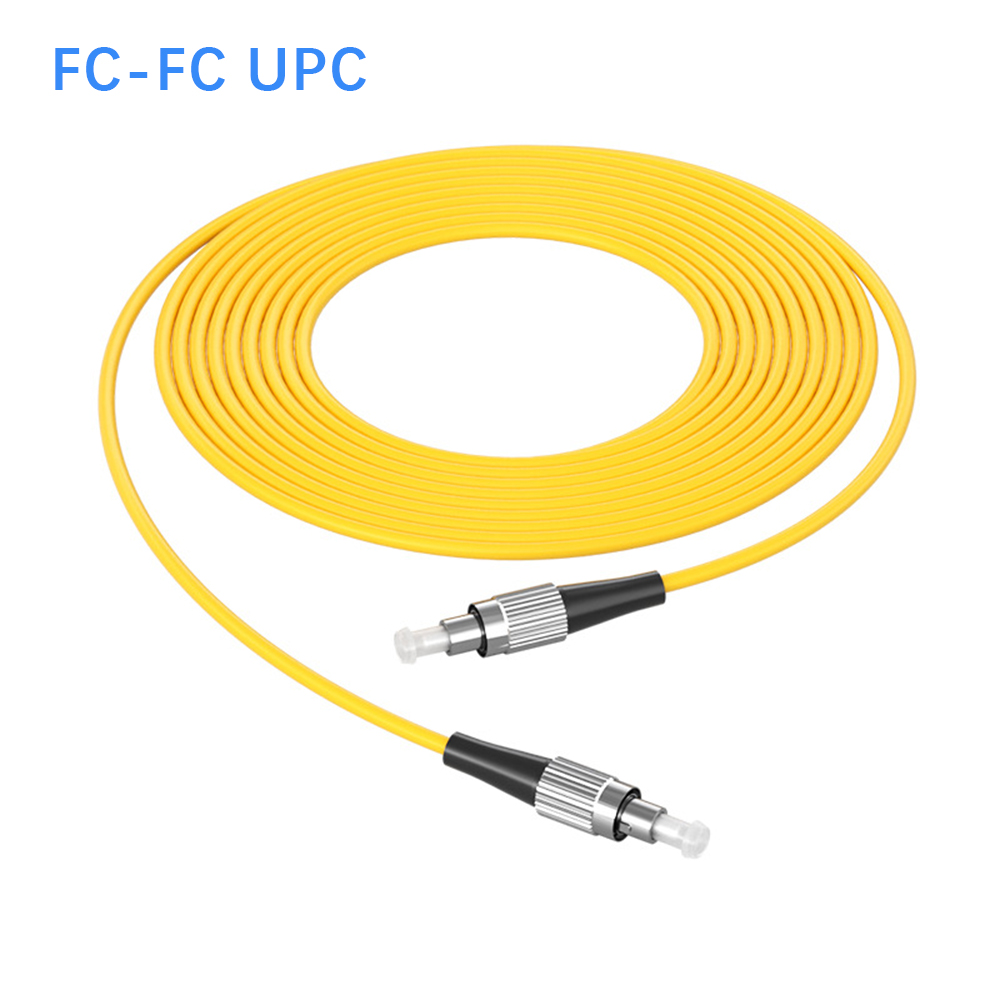

| FC/ST Fiber Optic Connector |
| Connector |
PC (SM) |
UPC (SM) |
APC (SM) |
PC (MM) |
| Return Loss (dB) |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 35 |
| Insertion Loss (dB) |
≤ 0.2 (Typical) / ≤ 0.3 (MAX) |
| Repeatability (dB) |
≤ 0.1 |
| Durability (times) |
≥ 1000 |
| Operating Temp (°C) |
-100 ~ +80 |
| Tensile Strength (N) |
≥ 90 (φ3) / ≥ 70 (φ2) |
Can we get a lower price? Any discount?
Yes, price is not a problem. Everything can be negotiated based on the ordered quantity.
Can I get a free sample?
Yes, simply send an inquiry to request your free sample.
We are new to the PON field, can you recommend suitable products?
Absolutely. It is our pleasure to guide you. Please provide us with more details about your application requirements.
What is the Minimum Order Quantity (MOQ)?
There is no MOQ requirement for any initial sample testing.

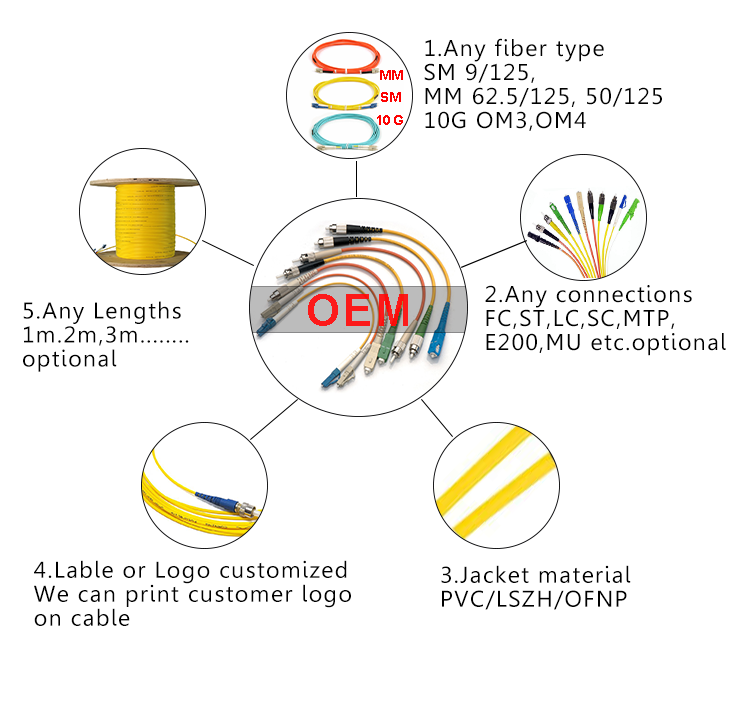

Are OEM/ODM services available?
Yes, we have a strong capacity to offer high-quality ODM and OEM products tailored to your needs, subject to specific MOQ requirements.
What are the trade terms, payments, and lead times?
Payment: We support T/T bank transfer, PayPal, and Western Union.
Price Terms: EXW, FOB, CIF.
Shipping: EMS, DHL, FedEx, TNT, UPS, by sea, or via your own designated shipping agent.
Lead Time: 3-7 working days for sample orders; 15-25 working days for bulk orders (following payment confirmation).
Warranty: 1 Year. Note that the warranty does not cover damage resulting from physical violence or unauthorized system updates.
