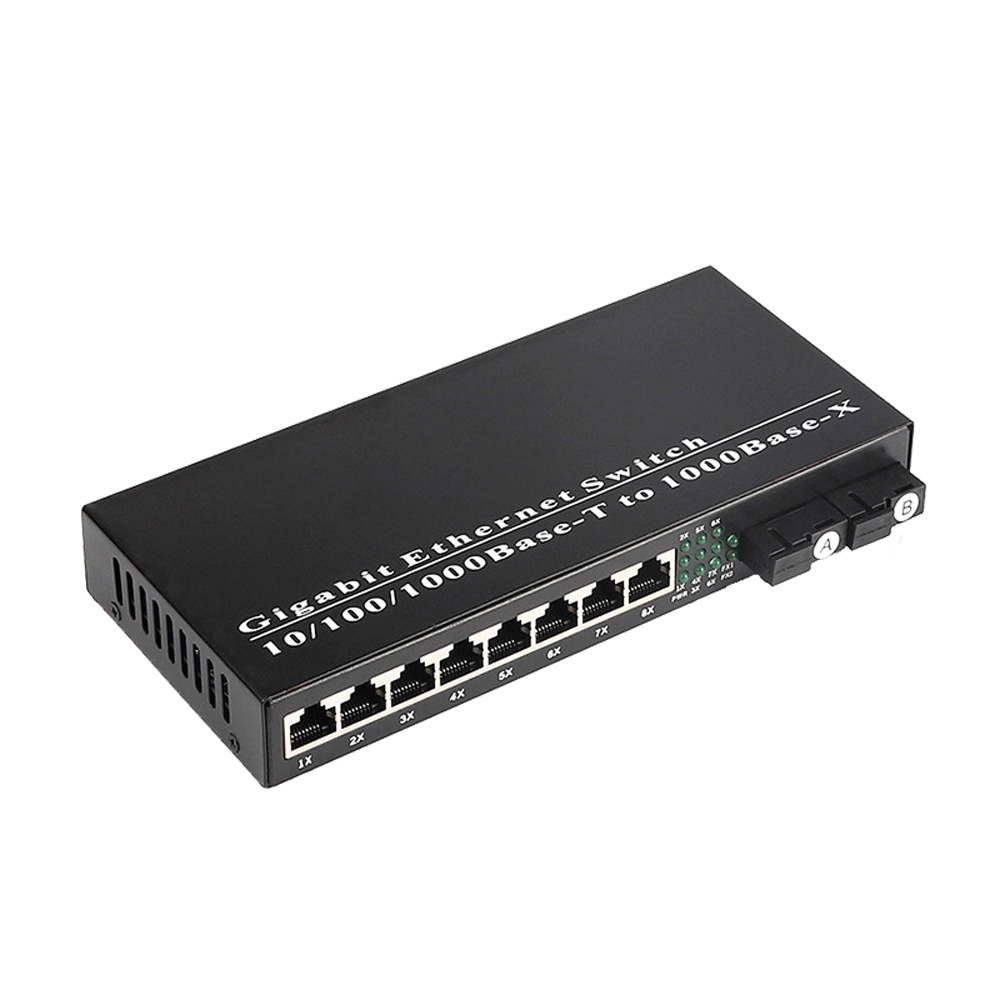

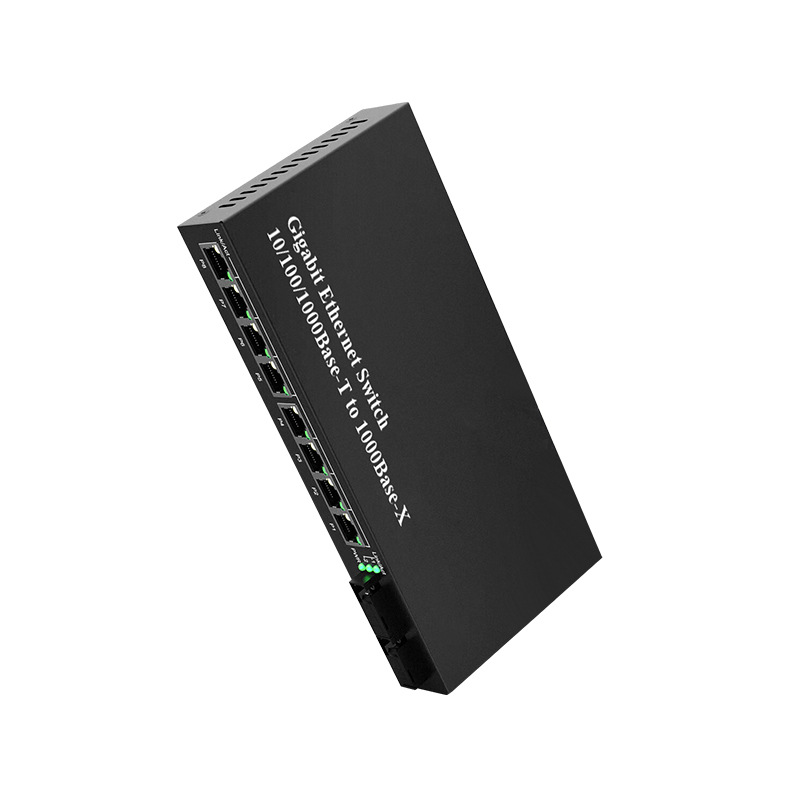

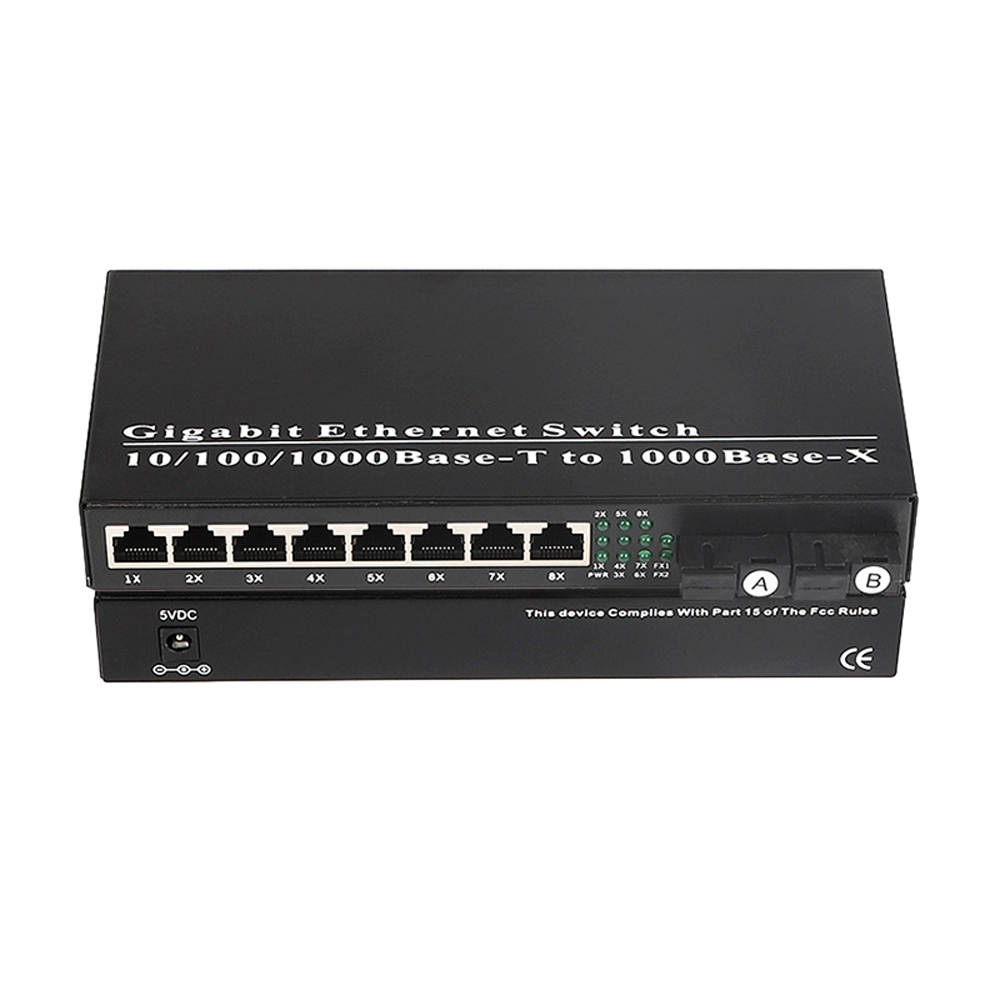

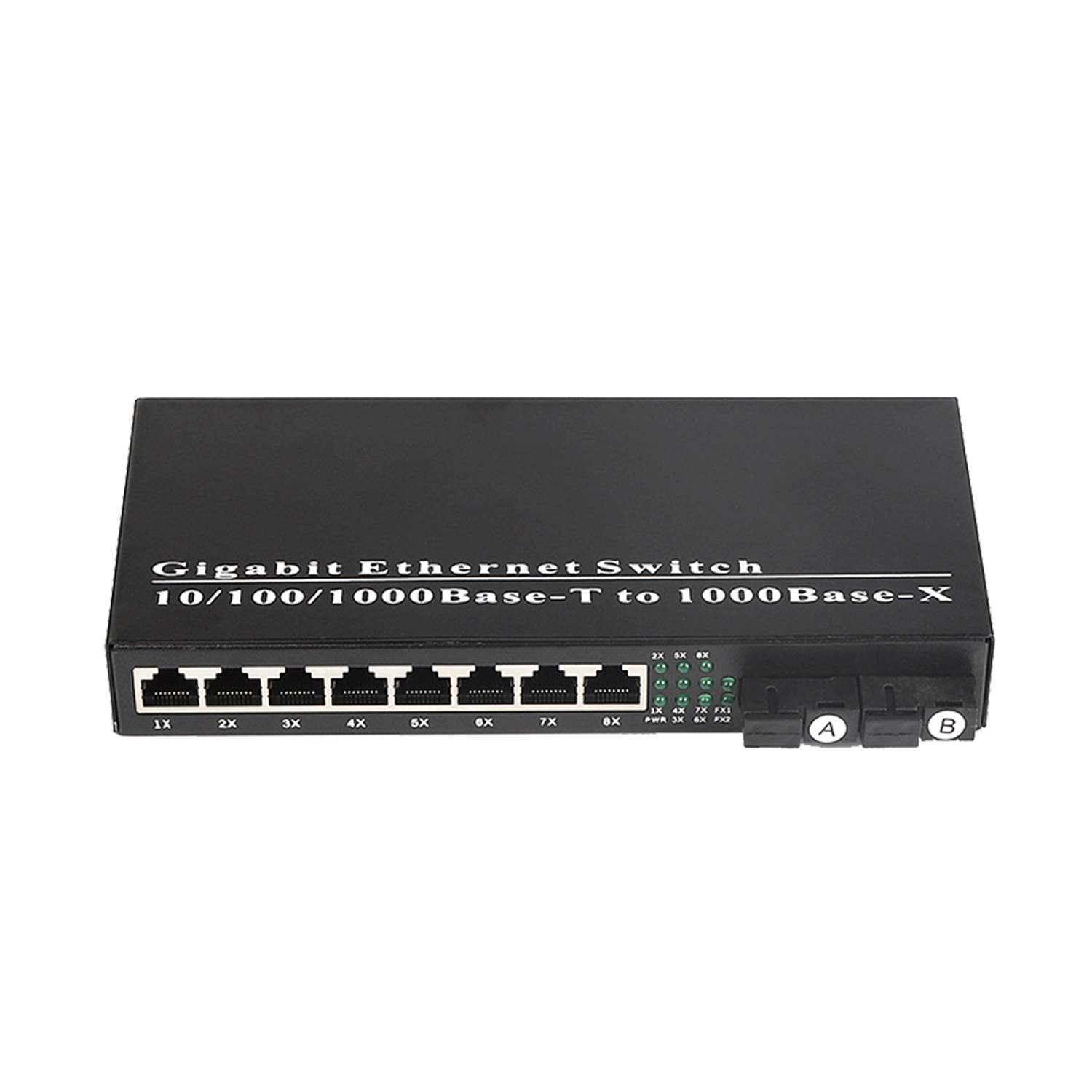

Fiber Optical Media Converter Self-adaptive 10/100/1000Mbps FTTH 2 SC to 8 RJ45 SM Single Fiber 20km

Product Description

Fiber Switch Banner

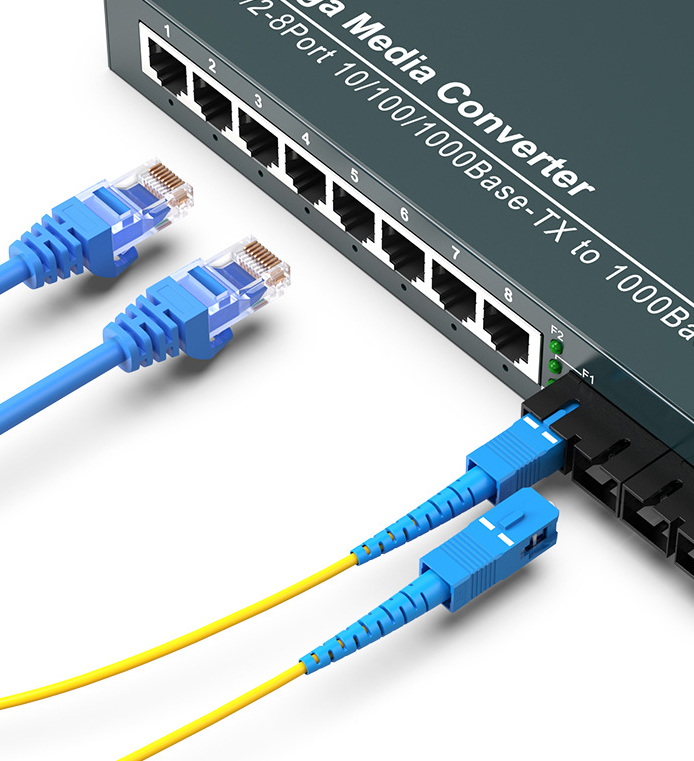

2 Gigabit fiber port with 8*10/100/1000Mbps RJ45 port

Point-to-multipoint high-speed forwarding

Gigabit Ports Configuration

Plug-and-play, no need for any configuration

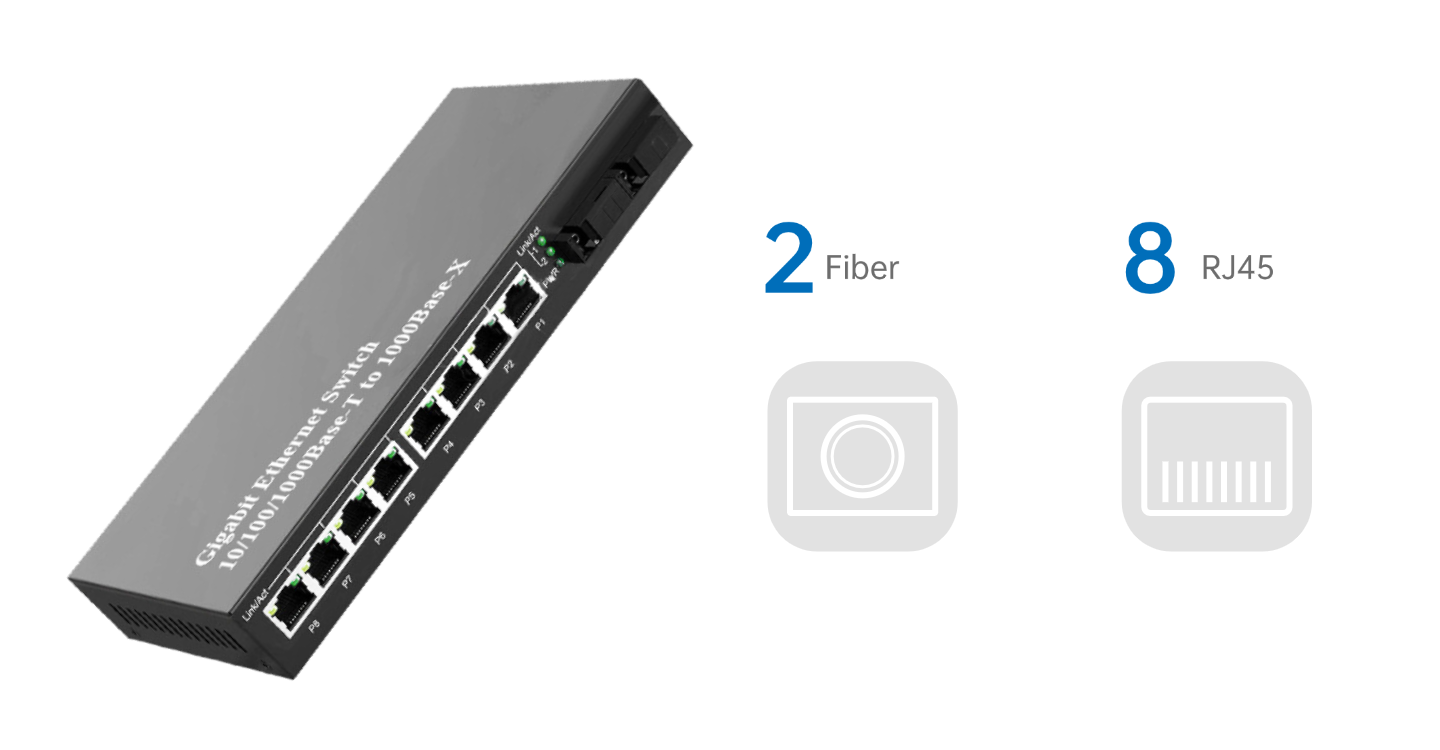

Plug and Play Feature

Product Dimensions and Interface Definitions

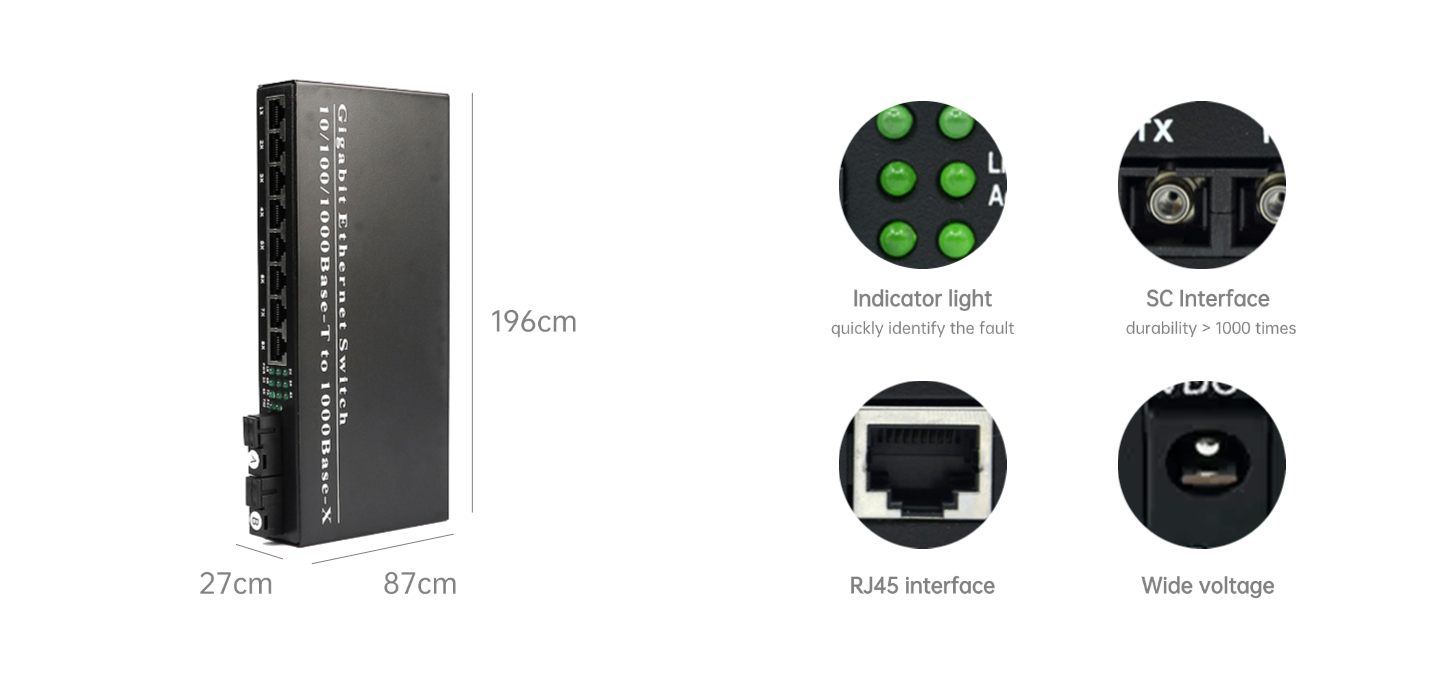

Product Dimensions

Application

Application Diagram 1

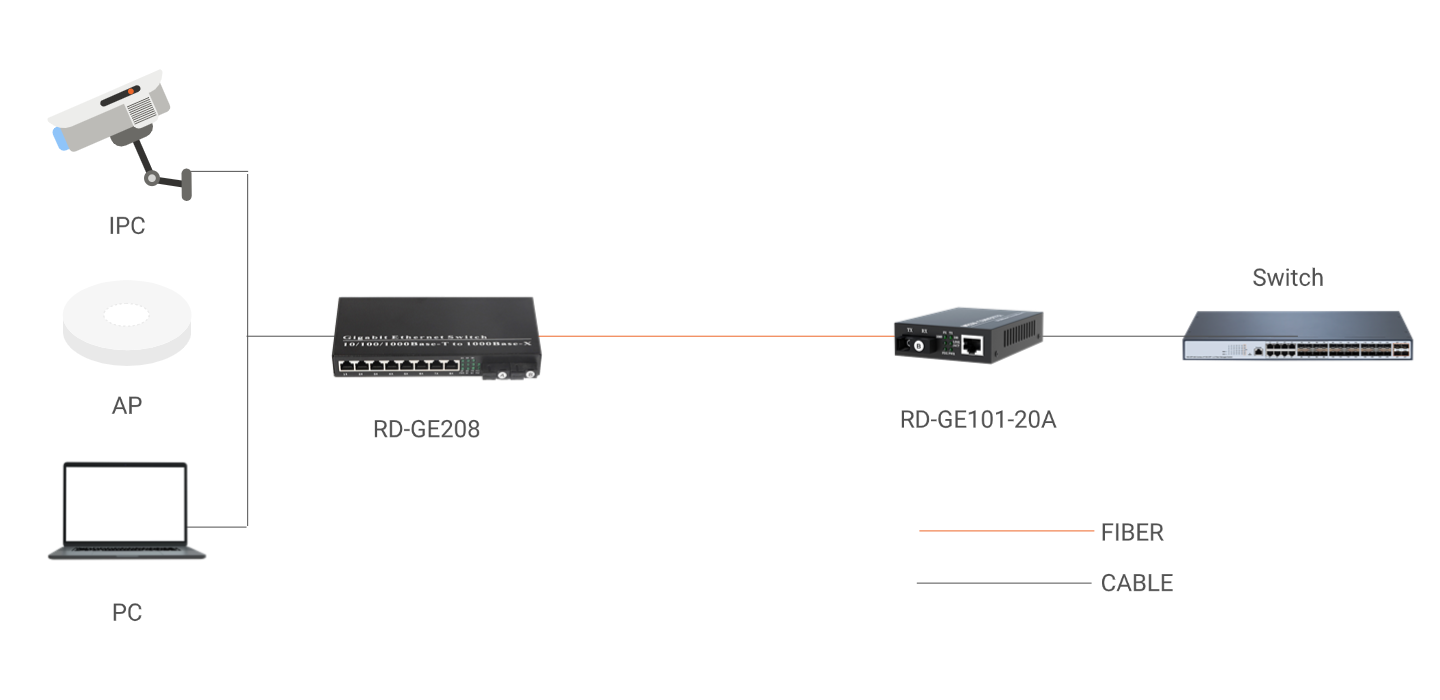

Application Diagram 2

Product Specifications

Hardware Specifications
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface
  • 2 * 1.25Gbps SC optical fiber interface
  • 8 * RJ45 10/100/1000Mbps
Distance
  • 100m @ CTE5
  • 20km @ SMF
Wavelength
  • A: Tx1310nm / Rx1550nm
  • B: Tx1550nm / Rx1310nm
Transmission Media
  • Cable: CTE5 or higher UTP and STP
  • Optical Fiber: 9/125um single-mode optical fiber
Optical Parameter
  • Average emission power: -9 to -3 dBm
  • Receiving sensitivity: -22 dBm

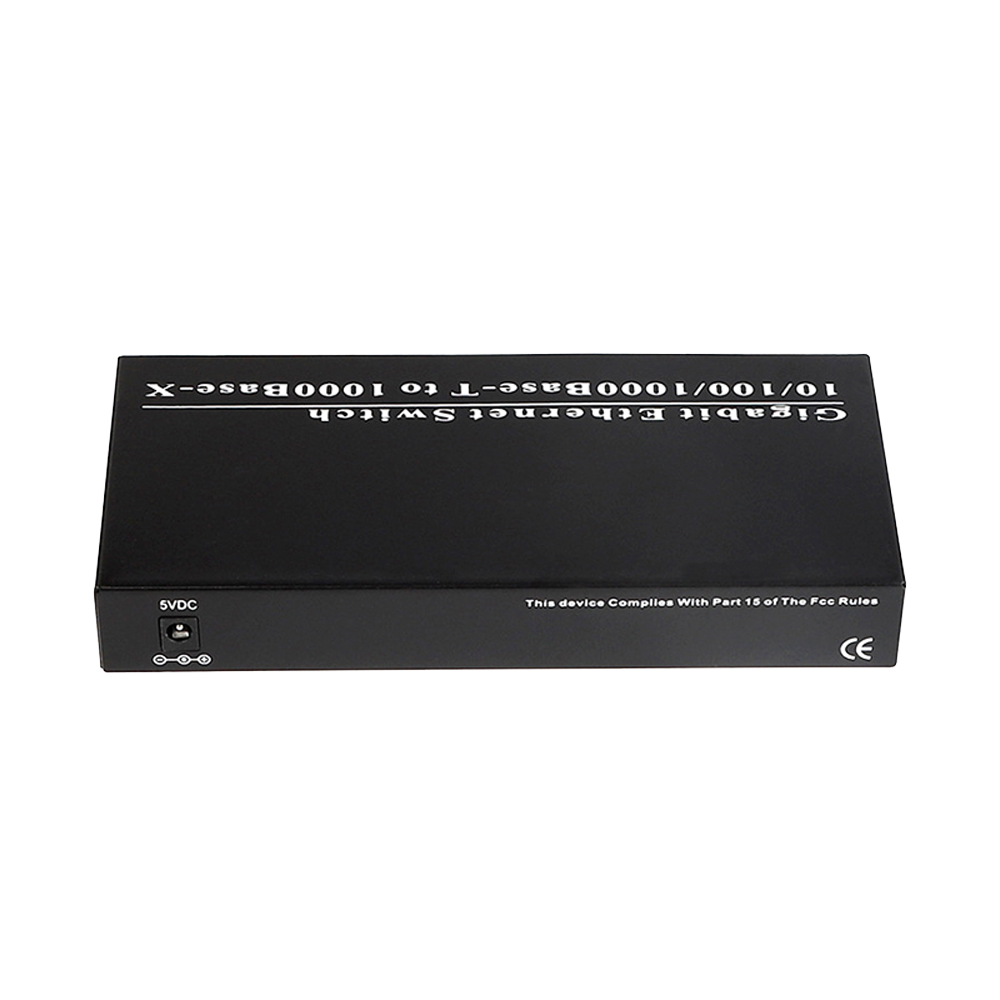

Power DC 12V / 2A
Size 196mm * 87mm * 27mm
Environment
  • Operating temperature: -5°C to 60°C
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: -40°C to 70°C
  • Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-GE208 Fiber Switch 10/100/1000MB 2*SC+8*RJ45 AB
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

FAQ

Q1: What is your MOQ request?

A1: It depends on the products. Different products have different MOQs. Please feel free to consult for more details.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to meet your specific requirements.

Q3: Do your products support other brands?

A3: Yes, all of our products are unlocked and highly compatible, supporting integrations with other brands as well.

Q4: Are you a manufacturer or a trading company?

A4: We are a professional manufacturer, and we support verified plant and factory evaluations.

Q5: Do you offer free samples?

A5: Yes, for certain models, we are able to provide free samples for your testing and evaluation purposes.

Q6: Are you able to provide local certificates?

A6: Yes, in accordance with contract agreements, we are capable of applying for local compliance certificates for you, such as CE, RoHS, etc.
