Product Description

About
10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’ requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.

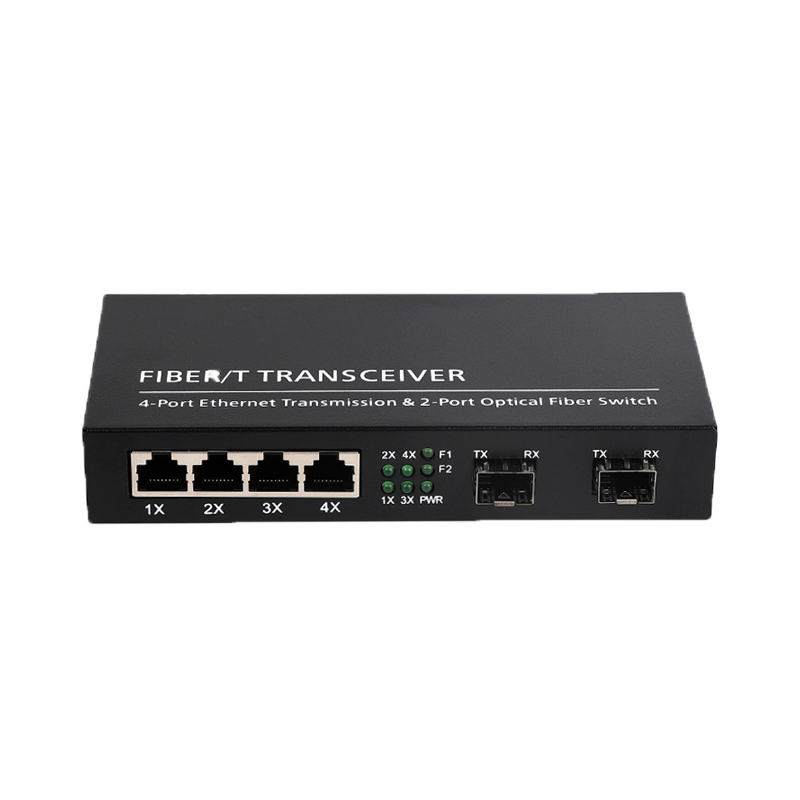

Media Converter Front View

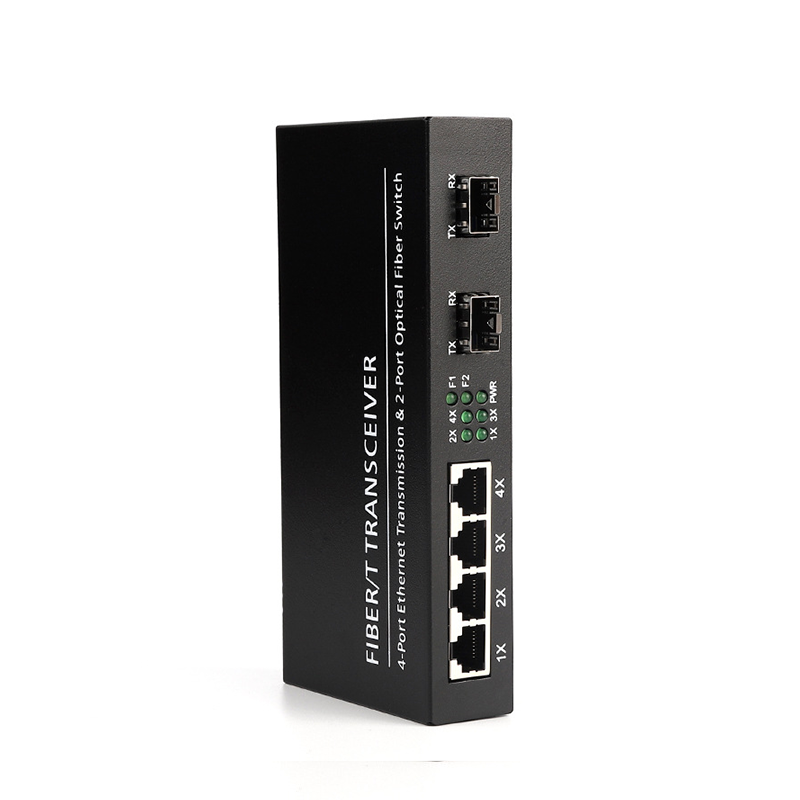

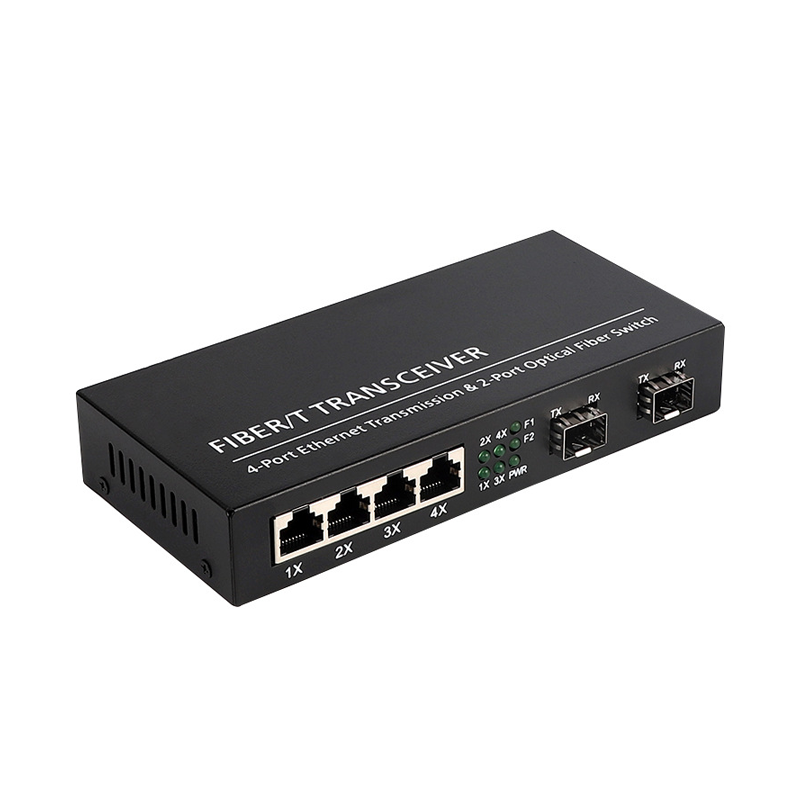

Media Converter Angled View
Specification
Media Converter Details
  • Conversion between auto-adaptation 10/100/1000Base–T to 100/1000Base–X , full duplex 1000M working pattern.
  • With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm.
  • With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensure reliable data transmission and long working life.
  • Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
Media Converter Interface
  • Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
  • Supporting 9kbyte super data packet transmission By store and forwarder mode.
  • Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/half duplex, data rate.
  • With more than 50,000 hours MTBF, complying with telecom operating standard.
Model No. RD-SFP-M14
Product Name 10/100/1000M SFP Port Fiber Optic Media Converter
Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI
Port 4*RJ45 port, 2*SFP port
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Forward Mode Store and forward
Power Supply DC5V1A
Certificates CE, FCC, RoHs
Dimensions (W x D x H) 95*70*30mm
Weight Product Weight: 0.2KG Packing Weight: 0.3KG
Working Environment Operating Temperature: 0°C~+70°C
Storage Temperature: -45°C~+95°C
Relative Humidity: 0~95% (non-condensing)
Warranty 1 Years
