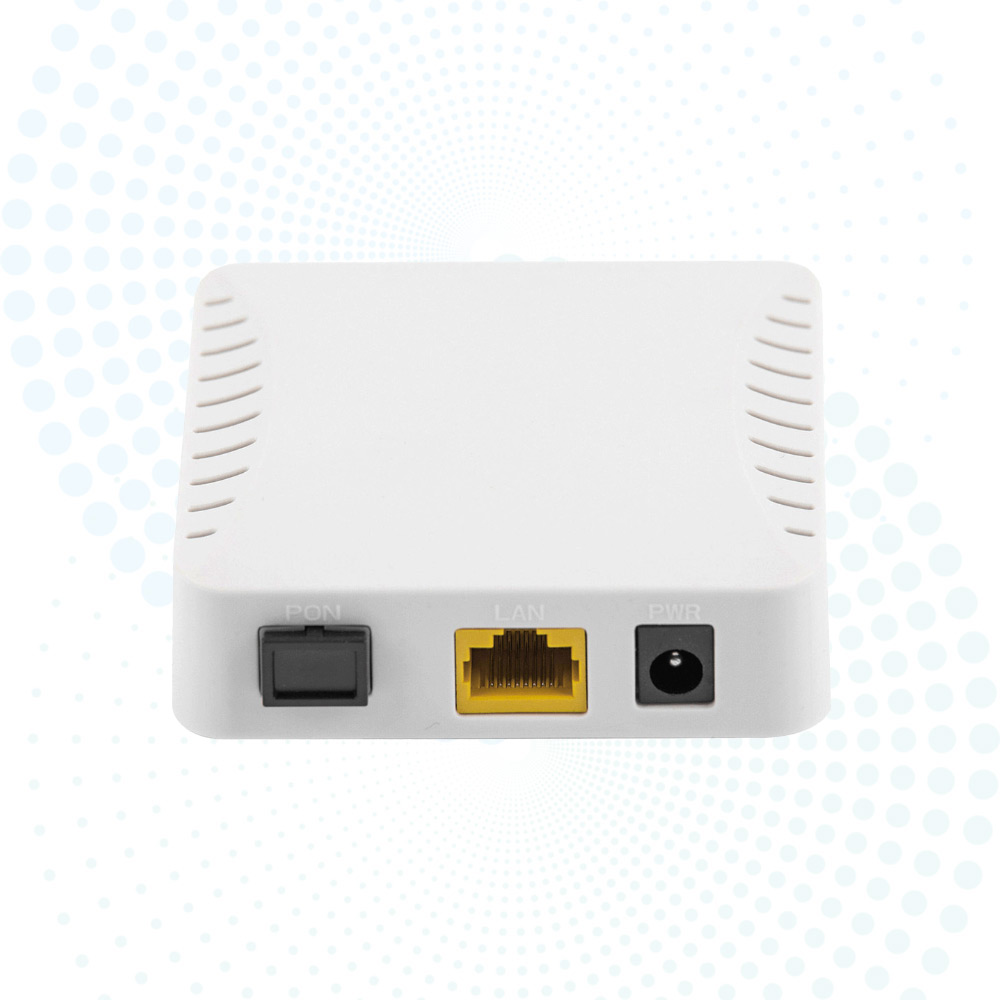

Broad Compatible FTTH 1GE ONT High Performance Optical Network Unit for ISP Projects Support OEM Logo

Product Description

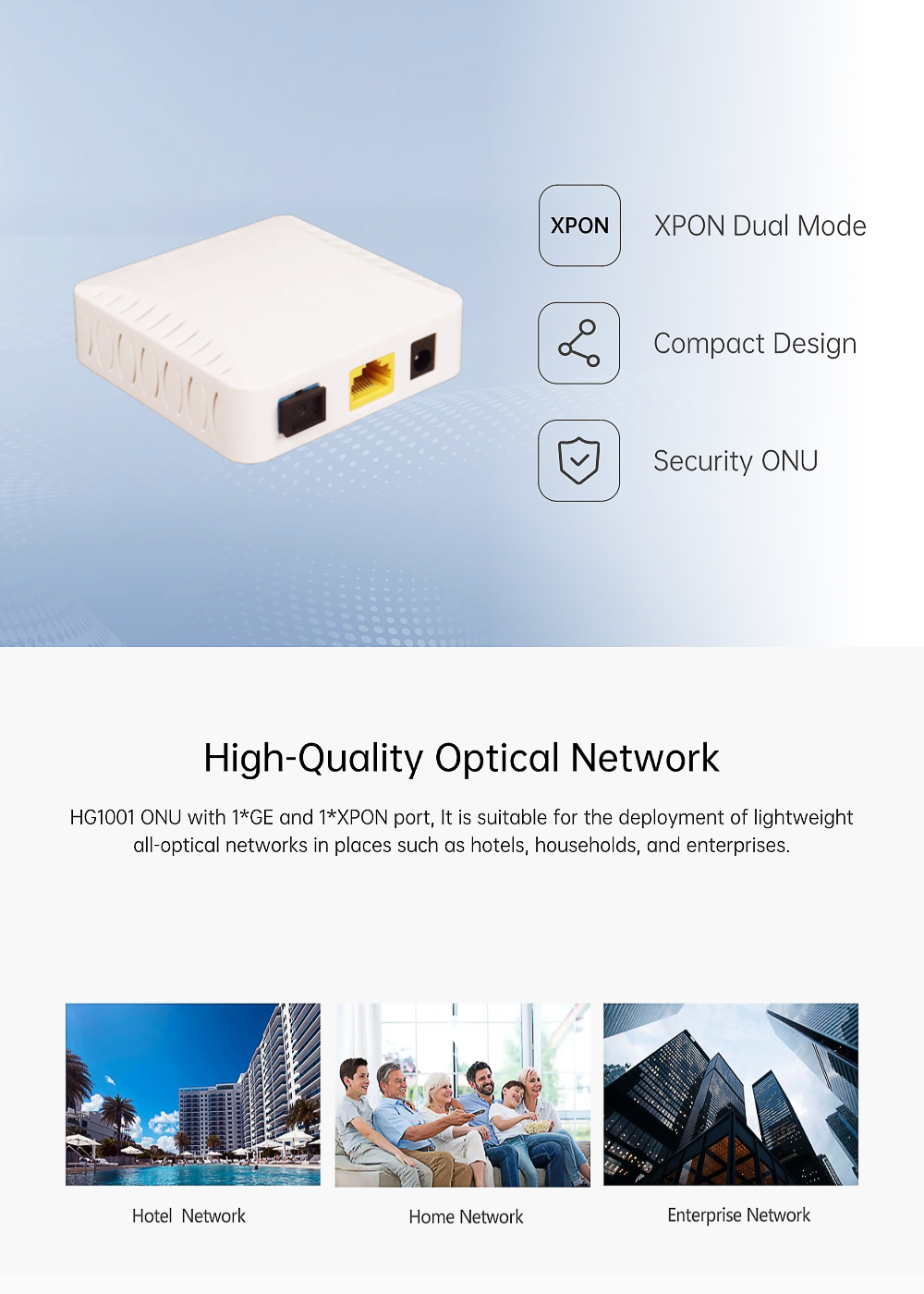

Product Layout 1

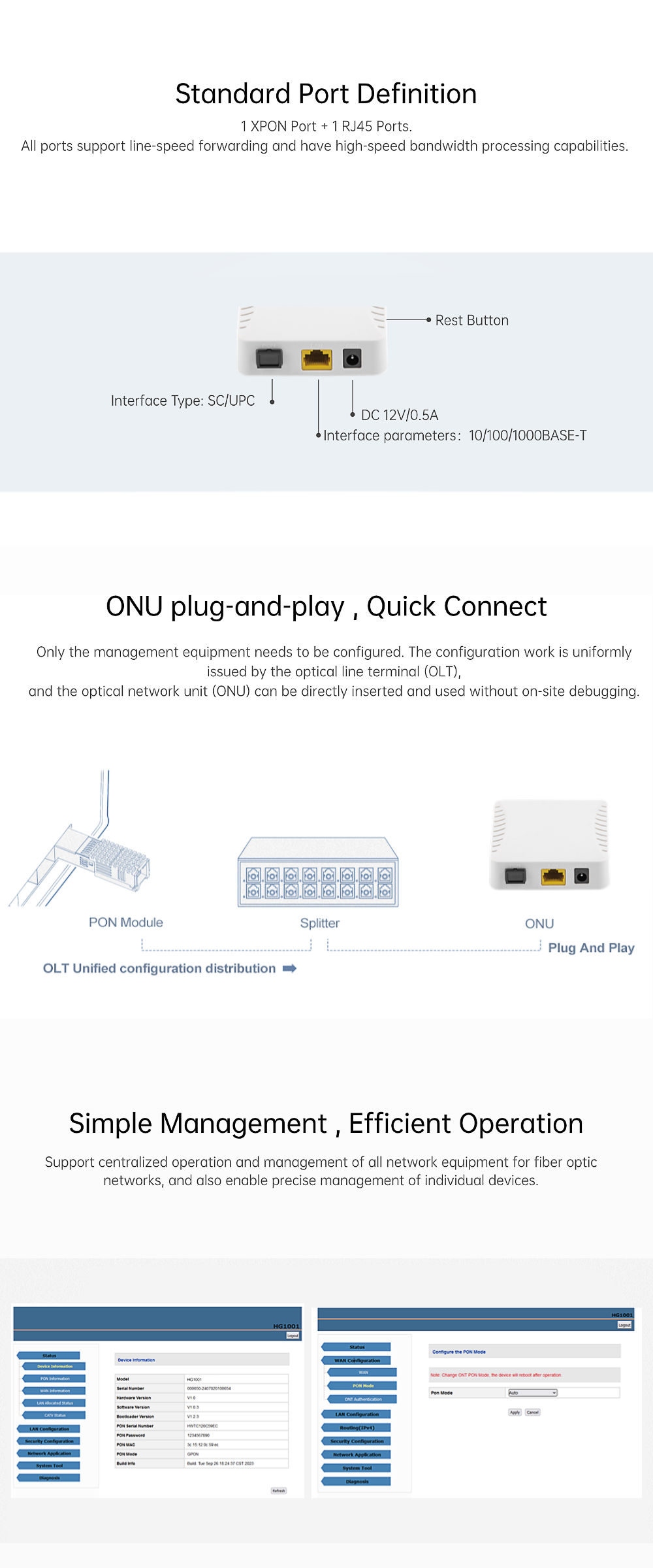

Product Layout 2
Hardware Specification
Hardware Parameters
Ethernet Interface
  • Interface type: 1 * RJ45
  • Interface parameters: 10/100/1000BASE-T
Buttons Reset Button
LED Indicators POWER / PON / LOS / LAN1
PON Interface
  • Interface Type: SC/UPC, CLASS B+
  • Transmission distance: 0 ~ 20km
  • Working wavelength: Upstream 1310nm; Downstream 1490nm
  • RX Optical power sensitivity: -27dBm
  • Transmission rate:
    • GPON: Upstream 1.244Gbps; Downstream 2.488Gbps
    • EPON: Upstream 1.244Gbps; Downstream 1.244Gbps
Power Supply DC 12V / 0.5A
Power Consumption < 18W
Working Temperature -20°C ~ +50°C
Environment Humidity 5% ~ 95% (non-condensing)
Dimension 78mm x 78mm x 21mm
Net Weight 0.06Kg (without package)
Software Specification
Software Features
Networking
  • Flexible packet classification
  • Up to eight queues
  • SP / WRR / SP+WRR
  • Ingress rate limit
  • Egress shaping
Security
  • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
  • DoS attack defending
  • Multiple VPN (IPSec, PPTP) passthrough
  • MAC address filtering
  • Broadcast / Unicast / Multicast attack protection
  • Broadcast packet rate limit
  • Dual image for firmware auto rollback
Management
  • OMCI management
  • WEB GUI management
  • Local built-in diagnostic function
  • Logs and statistics
  • Remote upgrade by HTTP

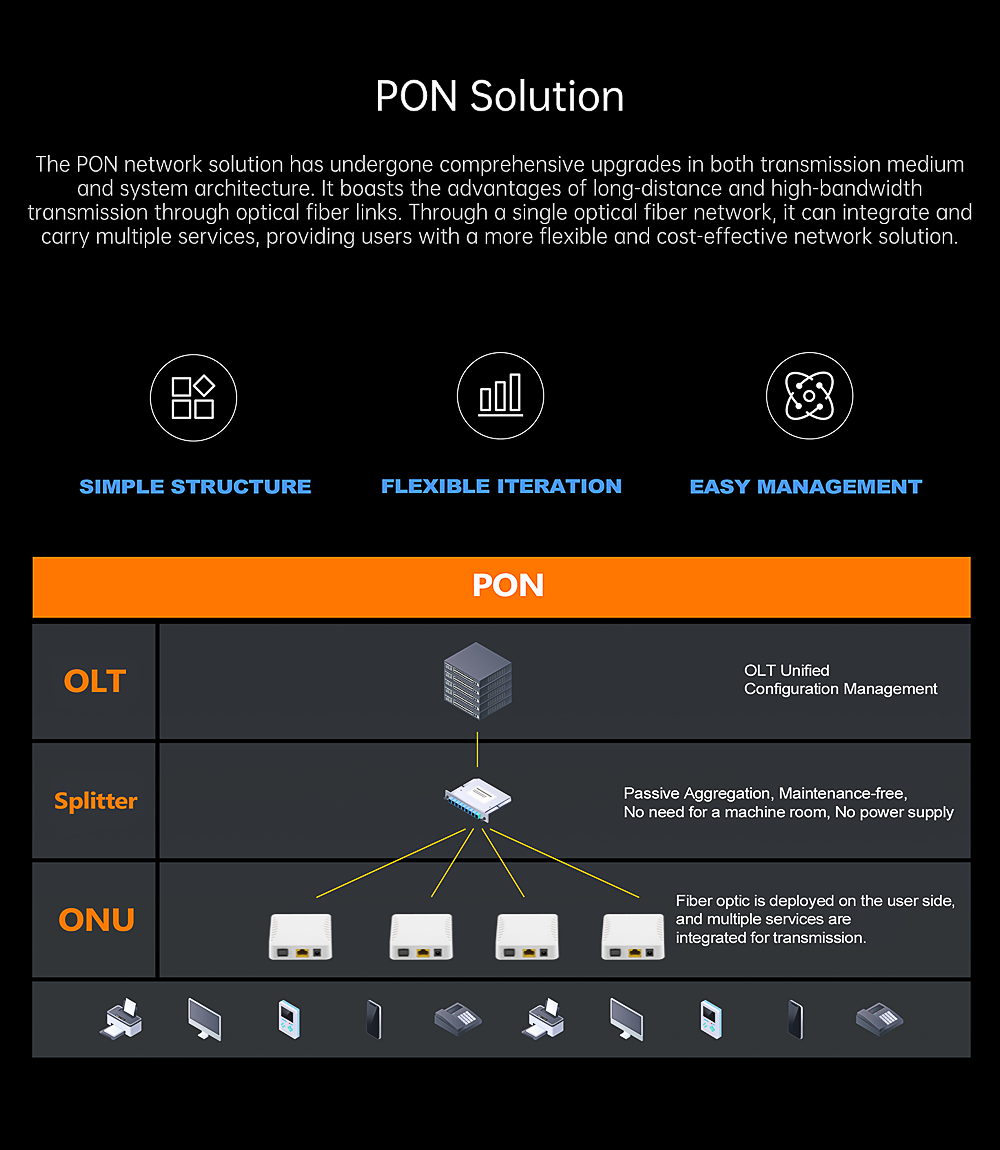

Detailed Dimension Diagram

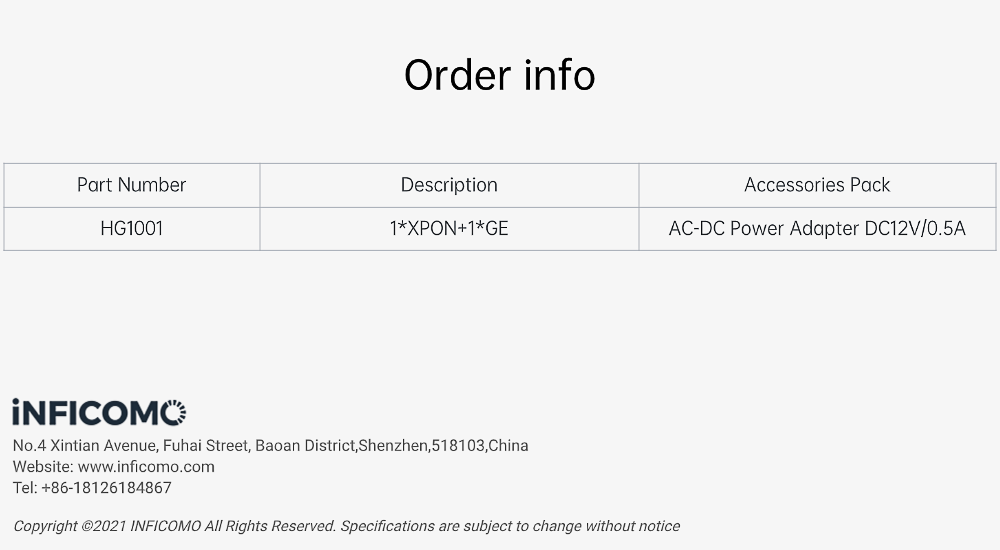

Installation Overview
Capabilities & Services
  • Comprehensive Quality Control: Pre-production samples verified before mass production, followed by 100% final inspection before shipment to ensure reliable network performance.
  • Broad Product Range: Specialized in FTTH ONU/OLT equipment, SFP Modules, Fiber Media Converters, PoE Switches, and key fiber optic accessories.
  • Expert Support: Strong focus on PON and switching solutions, backed by a dedicated engineering team delivering reliable support for partners worldwide.
  • Flexible Trade Terms: Supports FOB, CFR, CIF, EXW, DDP, Express Delivery, and multiple secure payment channels.
Production Workshop
Frequently Asked Questions
What core products are available in your fiber optic solutions?
We offer a complete suite of optical communication products, including FTTH ONU/OLT terminals, SFP modules, fiber media converters, PoE switches, and other high-performance fiber optic equipment.
How is product quality ensured before delivery?
Quality control is maintained via strict pre-production sample evaluations preceding manufacturing runs, along with a mandatory 100% final testing and inspection process for all units before shipping.
What transmission capabilities do the PON interfaces support?
The PON interfaces support dual-mode transmission up to 20km. For GPON, it supports downstream speeds of 2.488Gbps and upstream of 1.244Gbps. For EPON, it supports symmetrical speeds of 1.244Gbps downstream and upstream.
What built-in security features do these devices offer?
Devices feature integrated DoS attack defending, traffic filtering (based on UNI port, VLAN ID, 802.1p), multiple VPN (IPSec, PPTP) passthrough, MAC address filtering, broadcast/unicast/multicast storm protection, and dual-image system rollback for secure upgrades.
Can the firmware be managed and upgraded remotely?
Yes, the software supports convenient remote upgrades via HTTP, alongside standard OMCI management, a user-friendly Web GUI interface, local built-in diagnostics, and comprehensive logs and statistics tools.
What payment options and delivery structures are available?
We support diverse delivery terms including FOB, CFR, CIF, EXW, DDP, and Express Delivery. Supported payment options include T/T, L/C, PayPal, Western Union, Credit Card, and Escrow, with transactions accepted in multiple currencies such as USD, EUR, and CNY.
