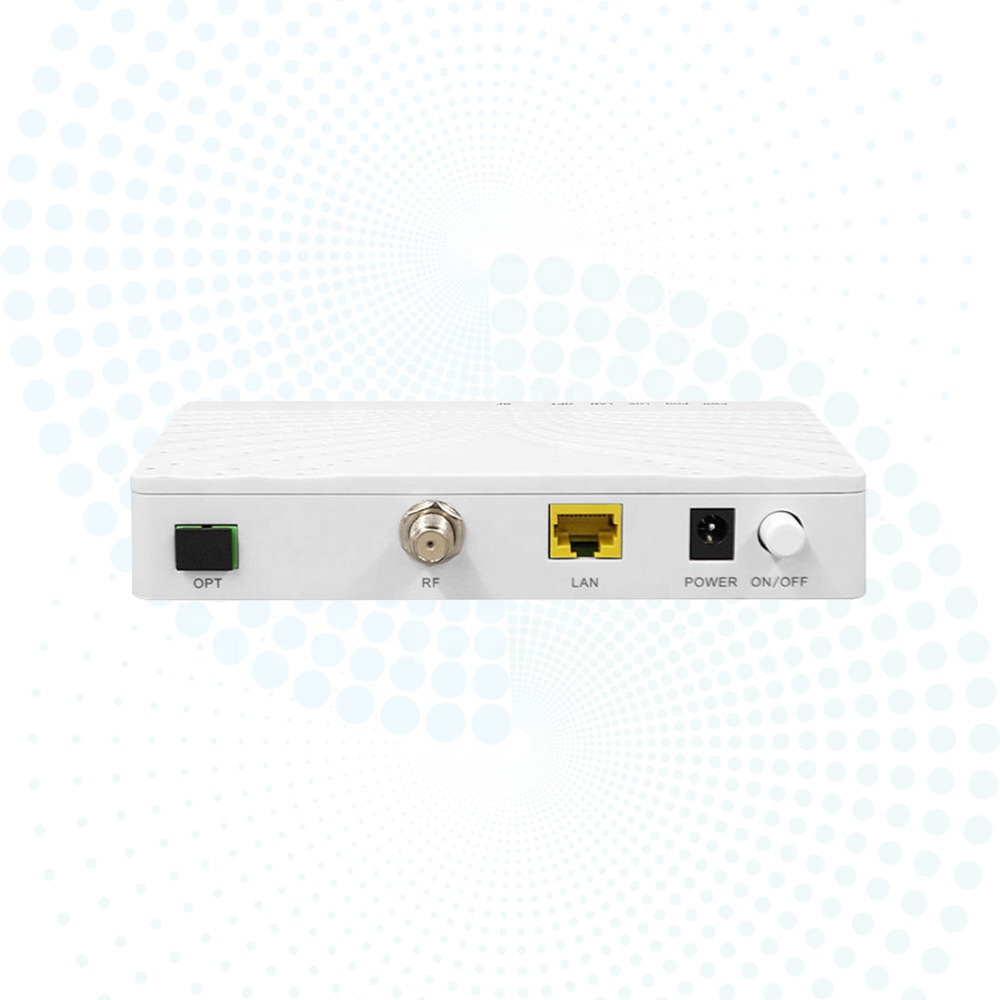

OEM FTTH XPON ONU 1GE + CATV RF Port Optical Fiber Modem Dual Mode GPON EPON Router HG1011

Send Inquiry

Product Description

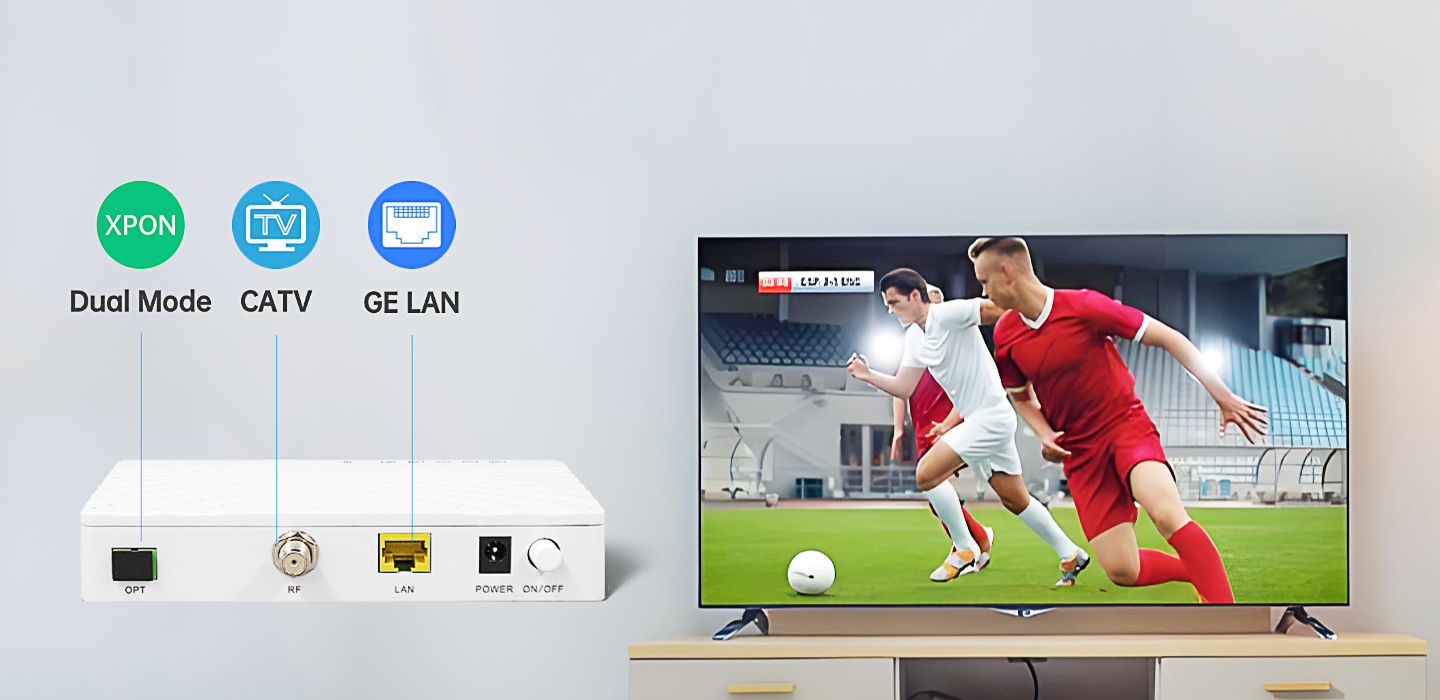

CATV ONT HG1011

XPON Dual Mode GE LAN CATV Service

HGU/SFU Support

Flexible access network setup supporting both Bridge Mode & Router Mode.

Easy Management

Supports remote control capabilities for seamless management and configuration.

Small Size, Plug & Play

Compact design, easy to deploy, reducing setup and operational overhead.

Hardware Specifications

Parameter	Specification Details

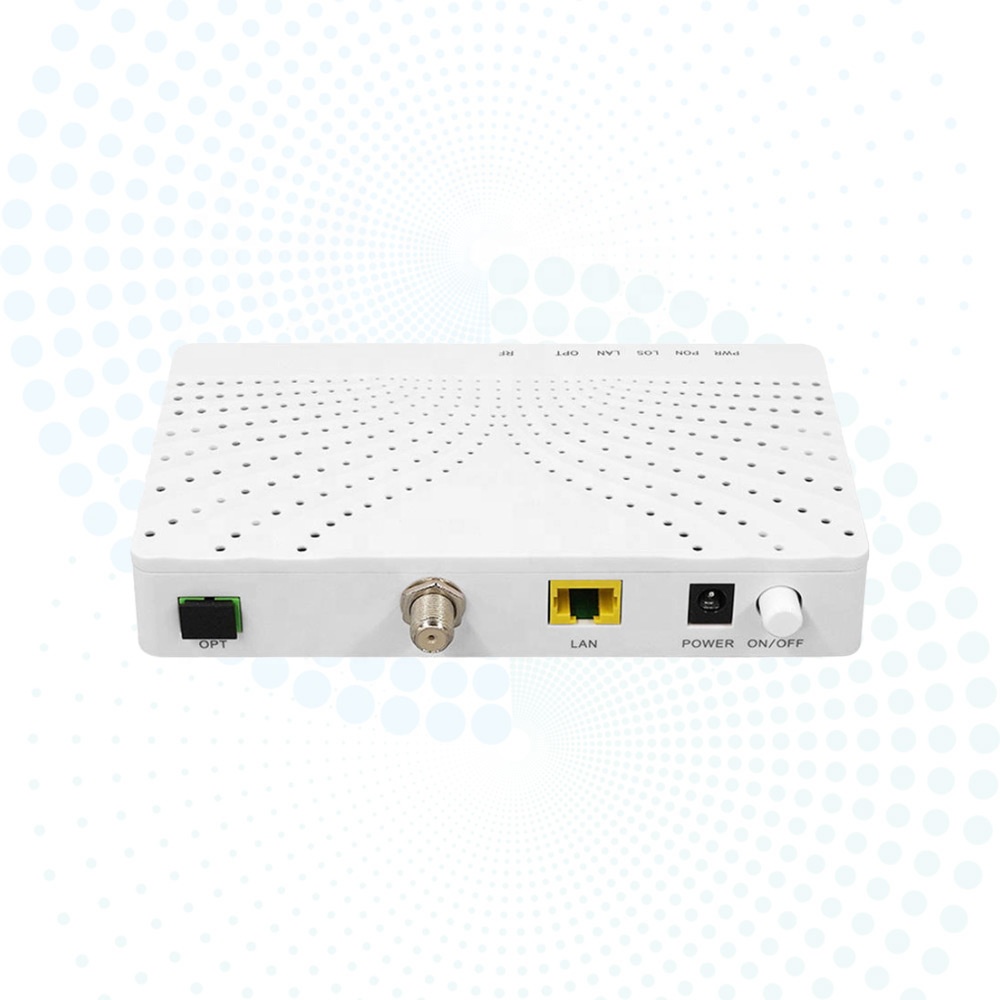

Ethernet Interface	• Interface type: 1* RJ45 • Interface parameters: 10/100/1000BASE-T
Buttons	Reset Button

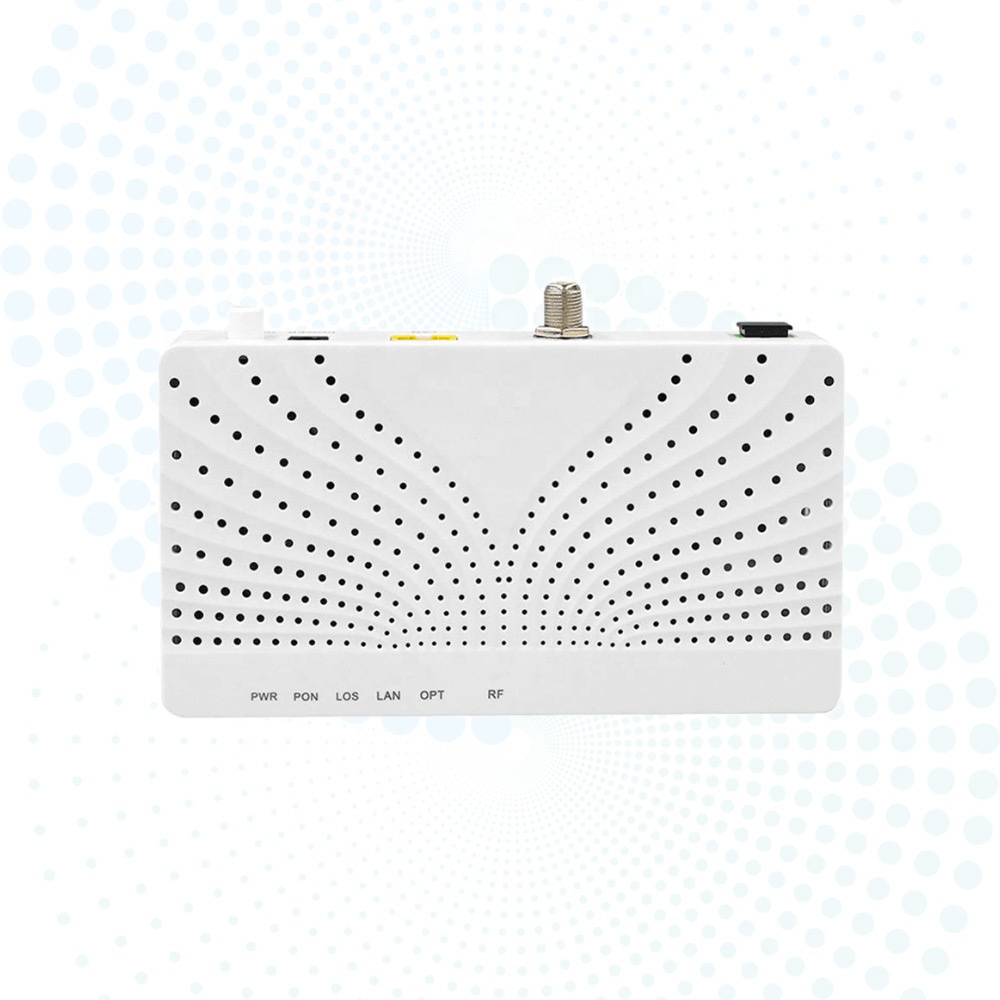

LED	POWER / PON / LOS / LAN1 / RF / OPT

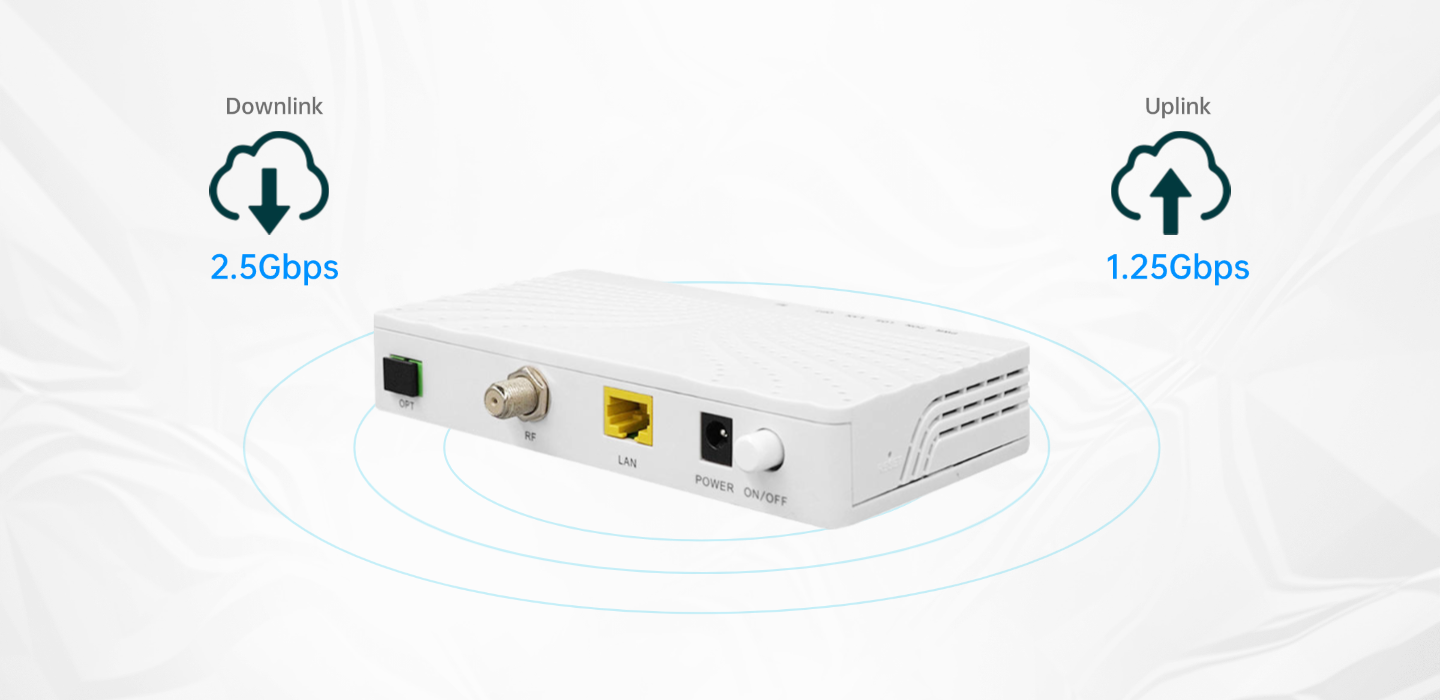

PON Interface	• Interface Type: SC/APC, CLASS B+ • Transmission distance: 0 ~ 20km • Working wavelength: Up 1310nm, Down 1490nm, CATV 1550nm • RX Optical power sensitivity: -27dBm • Transmission rate: GPON: Up 1.244Gbps / Down 2.488Gbps; EPON: Up 1.244Gbps / Down 1.244Gbps
Power Supply	DC 12V/1A
Power Consumption	< 18W
Working Temperature	-20°C ~ +50°C
Environment Humidity	5% ~ 95% (non-condensing)
Dimension	157mm x 86mm x 28mm (L×W×H)
Net Weight	0.15Kg (without package)

Function Data

Features	Details
PON Mode	XPON Dual Mode

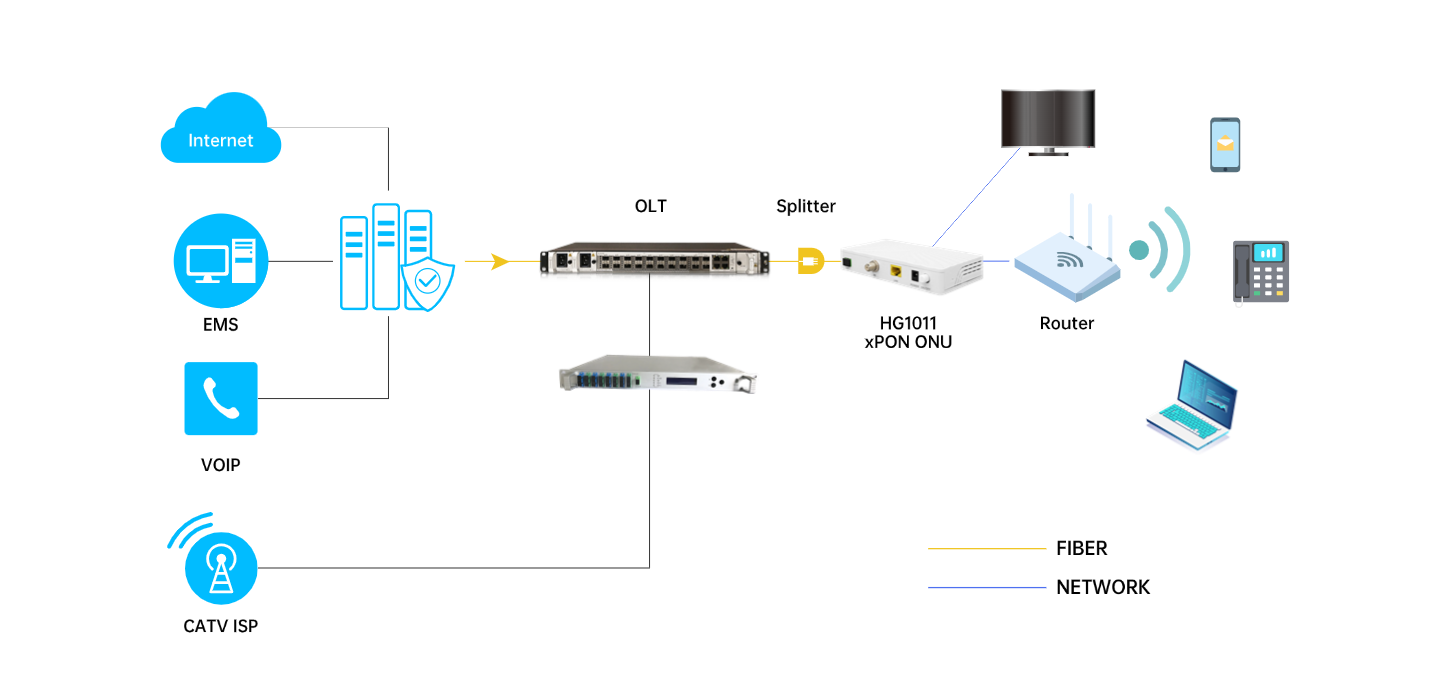

Uplink Mode	• Bridging and Routing Mode • High compatibility with mainstream OLTs
CATV	Support CATV Remote management
Standard	• Support CTC OAM 2.1 and 3.0 • Support ITU-T G.984.x OMCI
Layer 2	• 802.1D & 802.1ad bridging • 802.1p CoS • 802.1Q VLAN
Layer 3	• IPv4 • DHCP Client/Server • PPPoE, NAT, DMZ, DDNS
Multicast	IGMP v2/v3, IGMP snooping
Security and Firewall	• Prevent Rogue ONU • DDoS protection, Filtering based on ACL/MAC/URL
O&M	Support EMS / WEB / Telnet / CLI

Order Information

Part Number	Description	Accessories Pack
HG1011	1XPON + 1GE + CATV	AC-DC Power Adapter DC12V/1A

Frequently Asked Questions

Q1: What is your MOQ request?

A1: It depends on the products. Different products have different MOQ requirements.

Q2: Do you Support ODM/OEM service?

A2: Yes, we offer complete customization services to meet your specific needs.

Q3: Do your products support other brands?

A3: Yes, all of our products are unlocked and offer broad compatibility with other brands.

Q4: Are you a manufacturer or trading company?

A4: We are a manufacturer, and we support factory view tours.

Q5: Do you offer free samples?

A5: Yes, for certain models we are able to provide free samples for testing purposes.

Q6: Are you able to provide local certificates?

A6: Yes, according to our agreement, we can apply for local certificates such as Postel, CE, RoHS, Anatel, etc.
