| Item | Parameter |
|---|---|
| Fiber Count | Simplex, Duplex |
| Fiber Mode | Single mode: 9/125um, OS2 G652D G657 Multimode: 50/125um, OM2, OM3, OM4, OM5, 62.5/125um, OM1 |
| Fiber Grade | Single mode: OS2, ITU-T G.652D., ITU-T G.657 Multimode: ITU-T G.651, OM2, OM3, OM4, OM5, OM1 |
| Cable Diameter | 0.9mm, 1.6mm, 1.8mm, 2mm, 3mm |
| Flame Retardant | Riser (OFNR), Plenum (OFNP) |
| Jacket Material | PVC, LSZH, TPU, Hytrel |
| Jacket Color | OS2 G657: Yellow, Blue OM1 Orange, OM2 Orange, OM3 Aqua, OM4 Magenta, OM5 Lime Green |

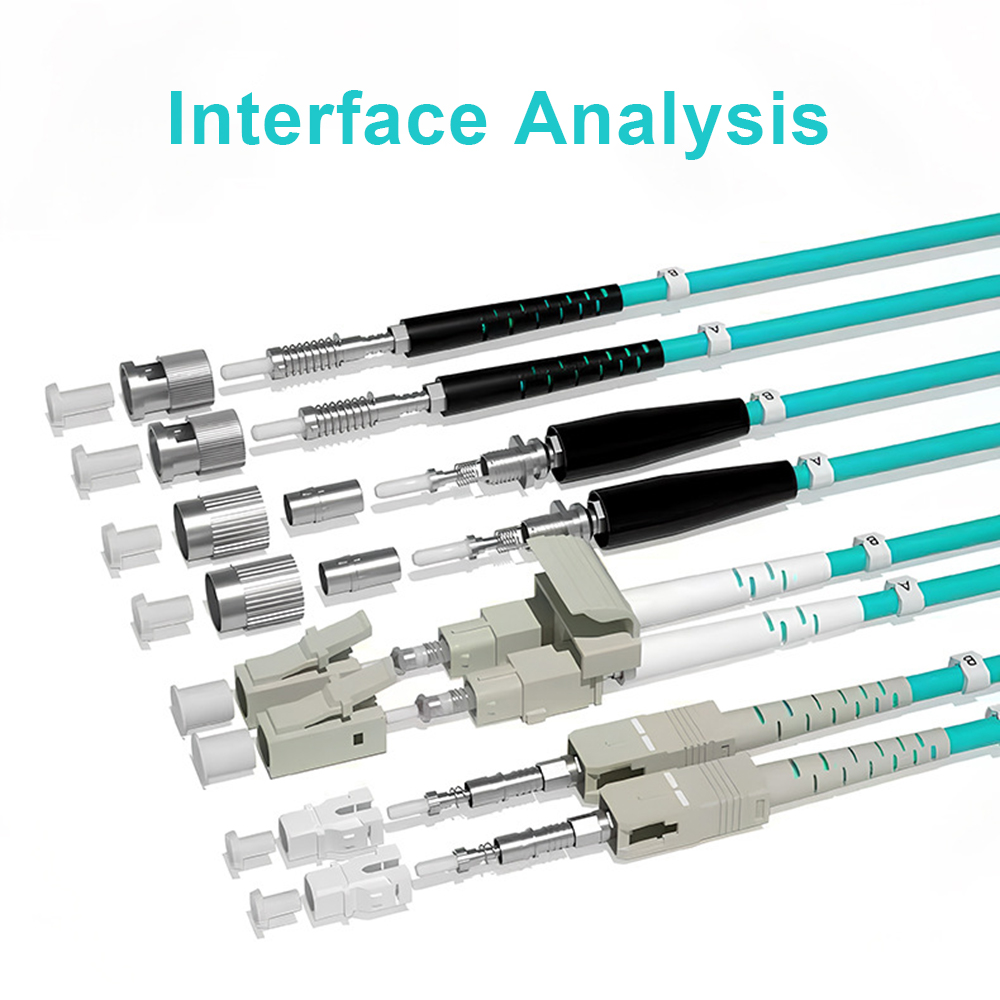

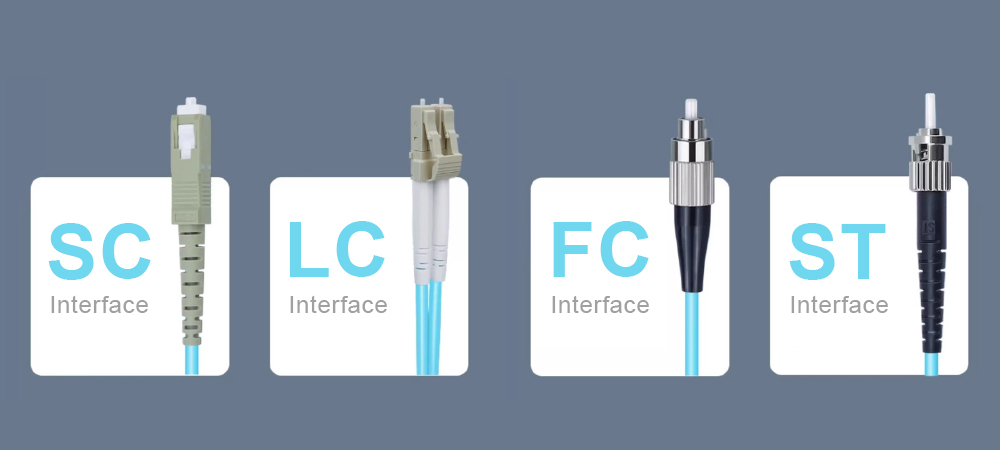

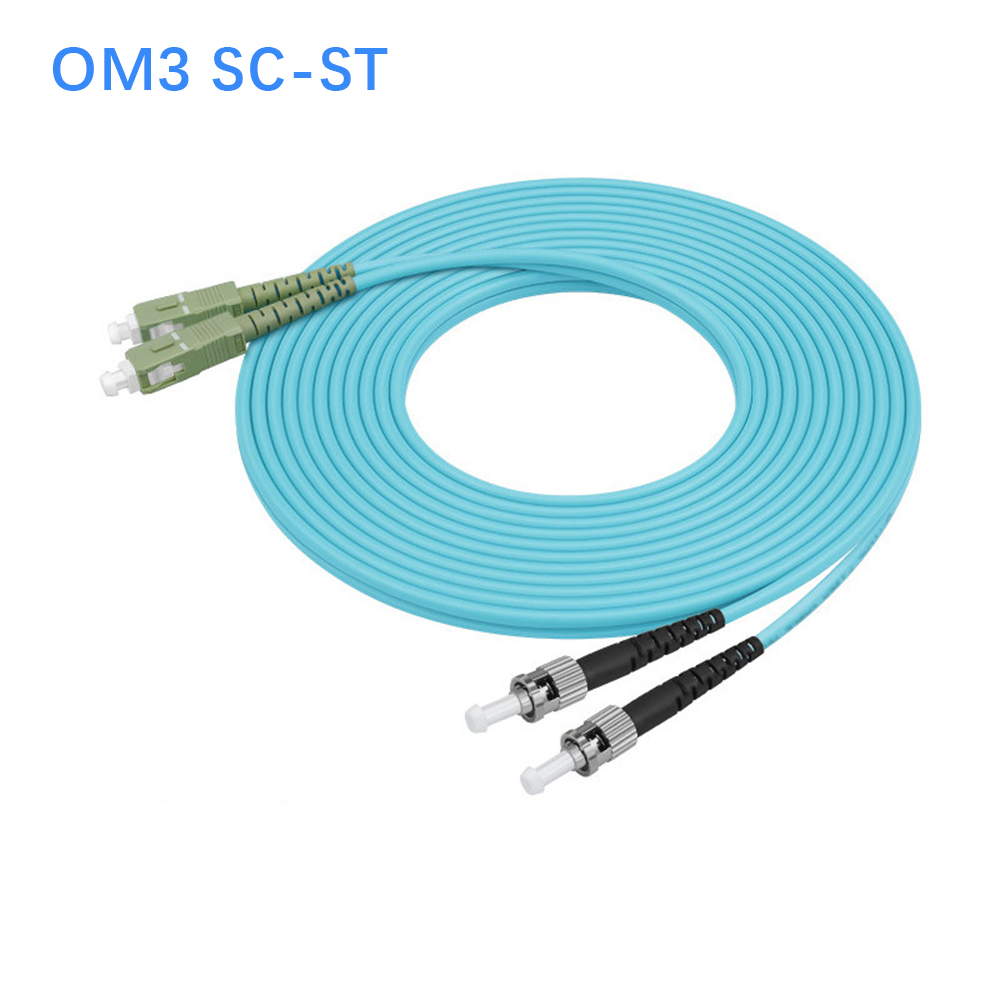

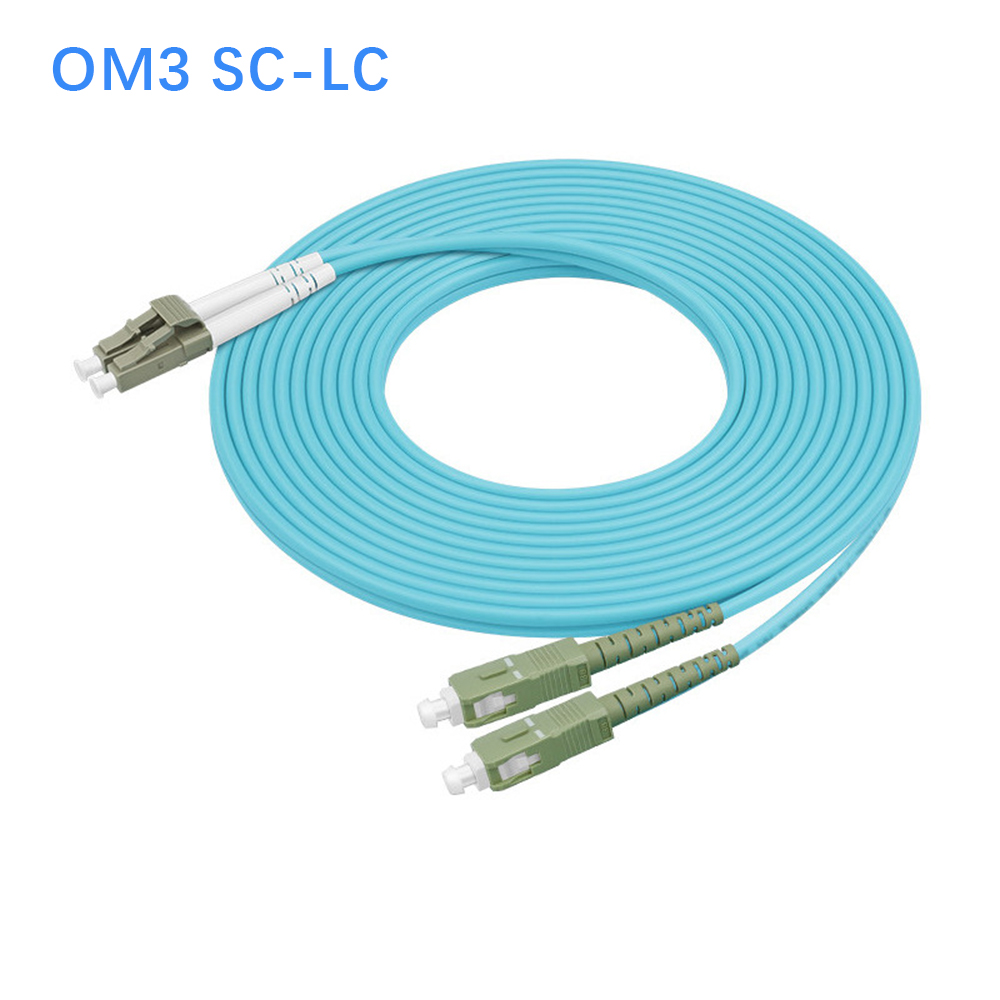

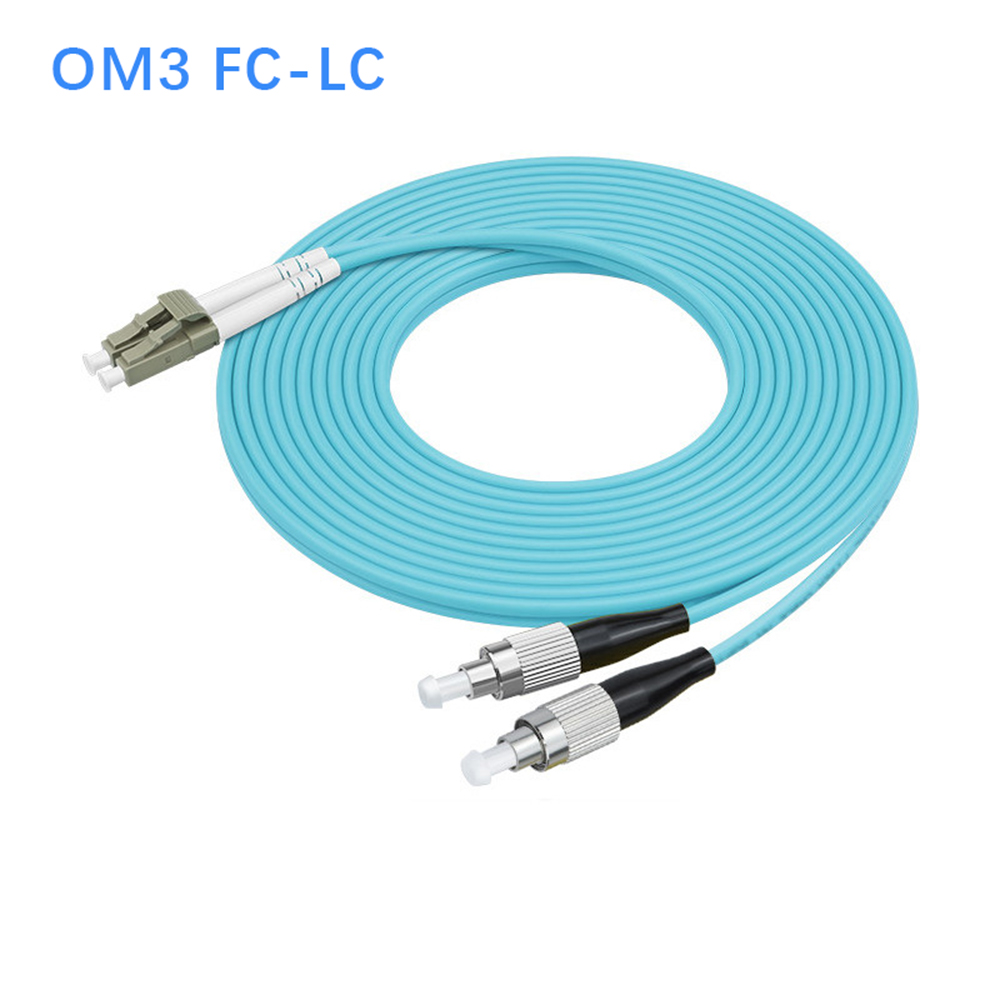

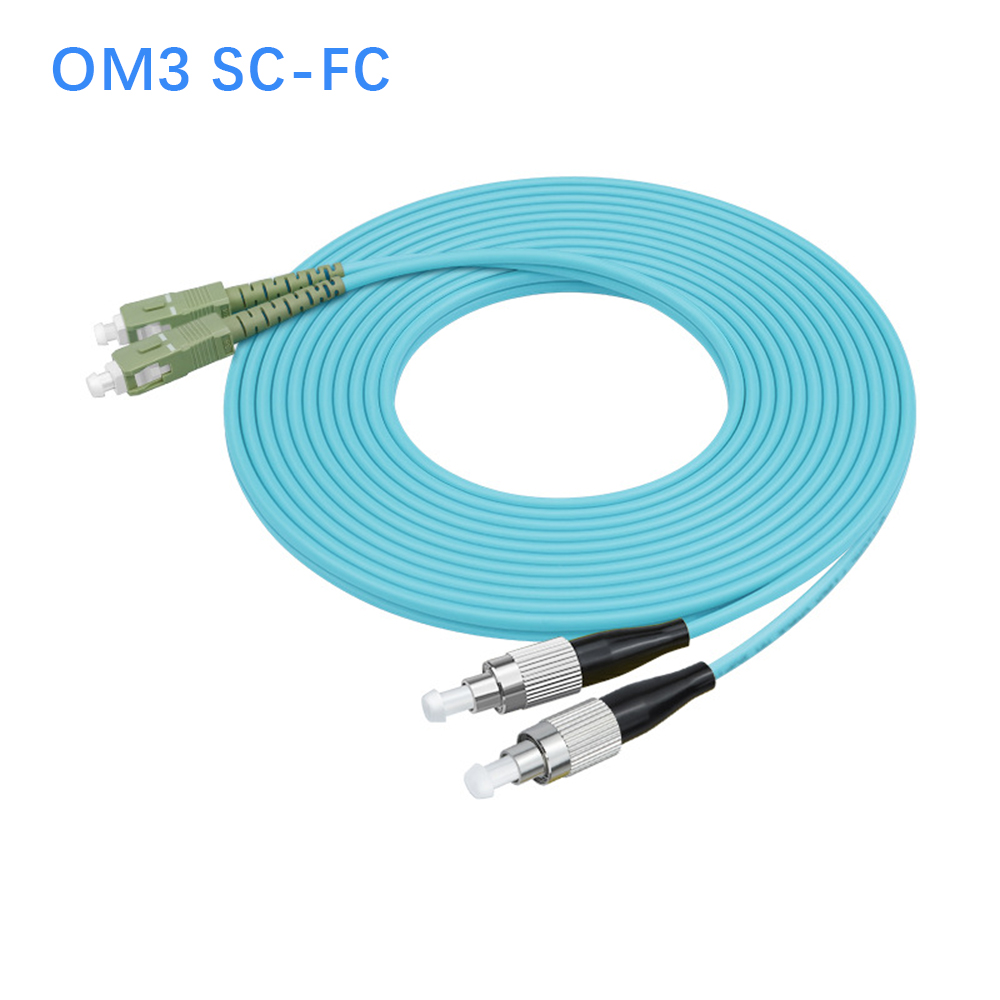

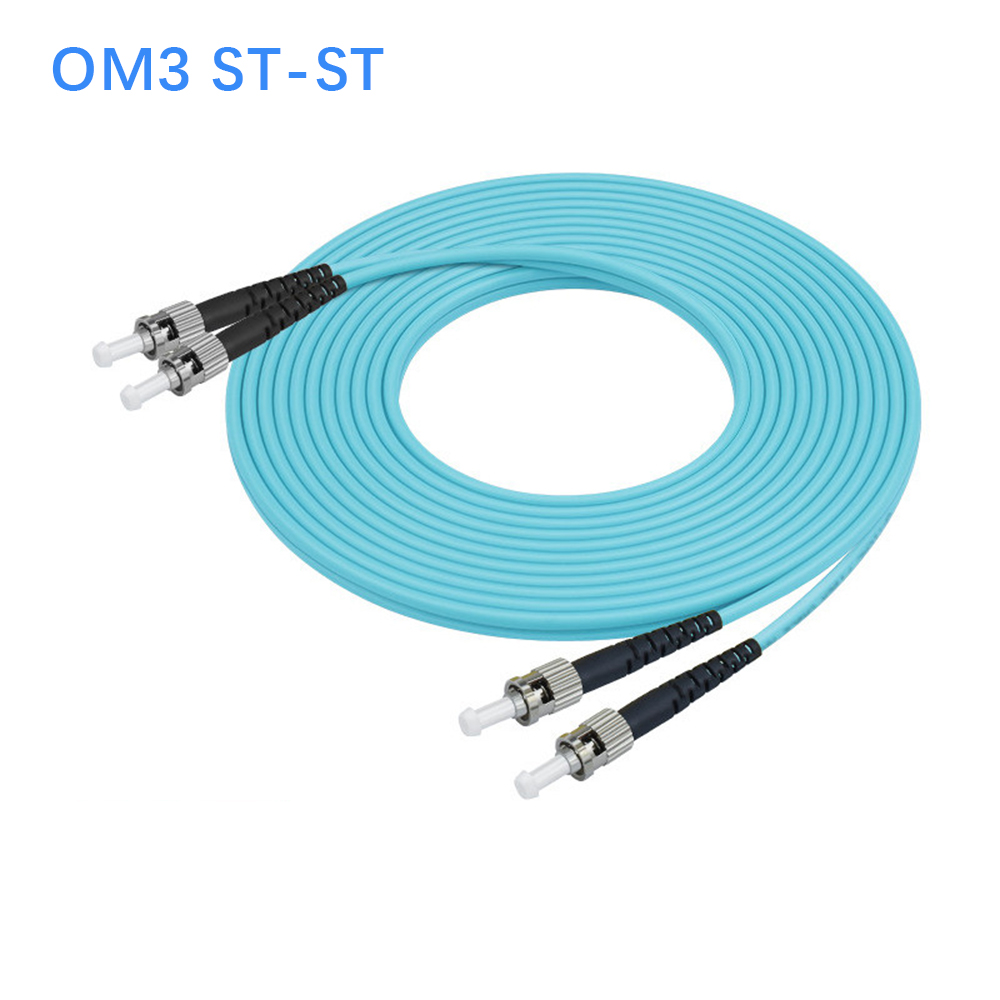

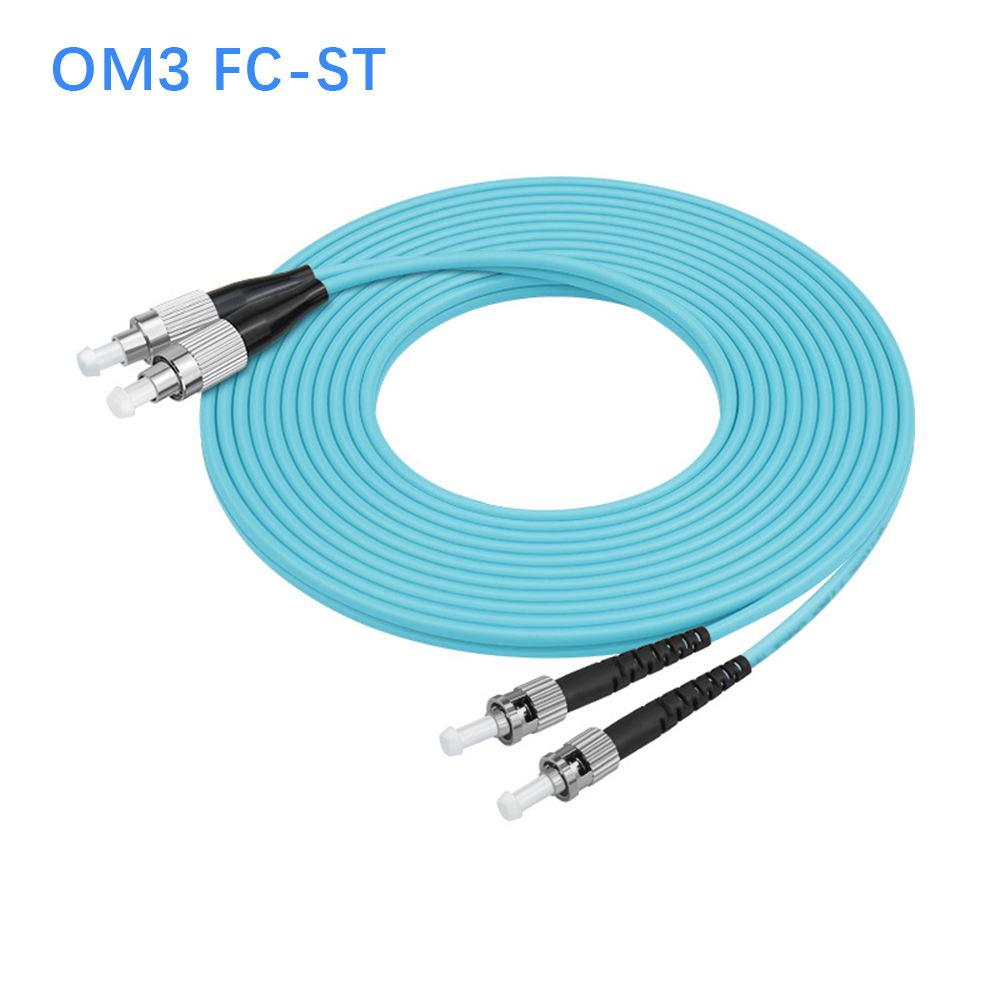

| Connector Type | SC LC FC ST E2000 MU MPO MTP MDC |
| Physical Contact | APC, UPC |
| Insertion Loss | ≤ 0.3dB / ≤ 0.2dB / ≤ 0.15dB |
| Return Loss | SM UPC ≥ 50dB, APC ≥ 60dB; MM PC ≥ 25dB |
| Operating Temperature | -20 °C ~ +70 °C |
| Storage Temperature | -40 °C ~ +85 °C |
