Save time, Reduce costs, More convenient
Automatically identify POE-connected devices

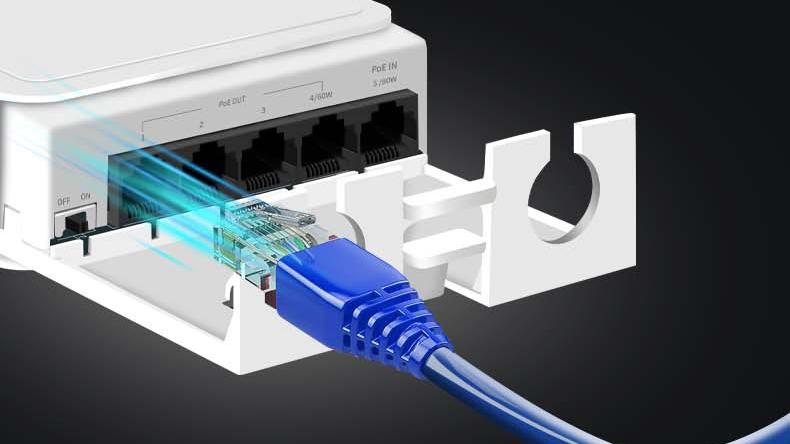

No need for power supply, Just plug in the network cord and it can be used

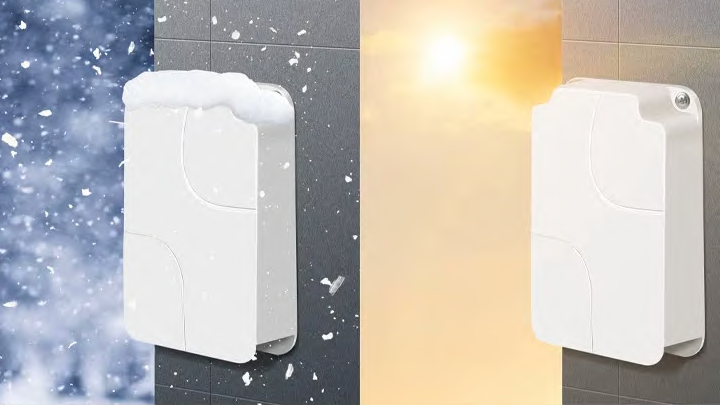

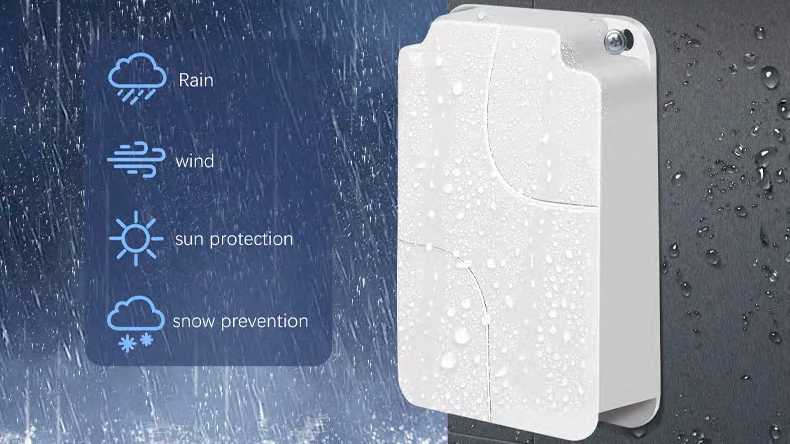

Using a highly weather-resistant shell, it can adapt to various extreme weather conditions.
| Model | WAT13-C | WAT13G-C | WBT14-A | WBT14G-A |
|---|---|---|---|---|
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT/BT | ||
| Port | 10/100Mbps | 10/100/1000Mbps | ||
| POE Power | POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W | POE Input: 44~57V/90W, POE Output: Port2: 60W max, Port(3~5): 30W max | ||
| POE Connection |
POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission |
|||
| Performance |
Store and forward MAC address table 2k |
|||
| Forwarding Rate |
10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port |
10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port |
||
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode | |||
| Environment | Operating Temperature: -10°C - 55°C | |||
| Power | Input: DC44-57V | |||
| Weight & Size | 180g, 98mm × 148mm × 34mm (L × W × H) | |||
| Model | Introduction |
|---|---|
| WAT13-C | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 3-OUT, 100m POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| WBT14-A | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 4-OUT, 100m POE Input: 44~57V/90W, POE Output: Port2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
| WAT13G-C | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| WBT14G-A | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 4-OUT, 100m POE Input: 44~57V/90W, POE Output: Port2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
Depends on products, different products have different MOQ, pls contact our sales for more details.
Yes, we can offer the customization service to you.
Yes, all of our products is without lock, support to another brands too.
We are the manufacturer, we support factory view tour.
Yes, for some models we are able to provide the free samples for your testing purpose.
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
