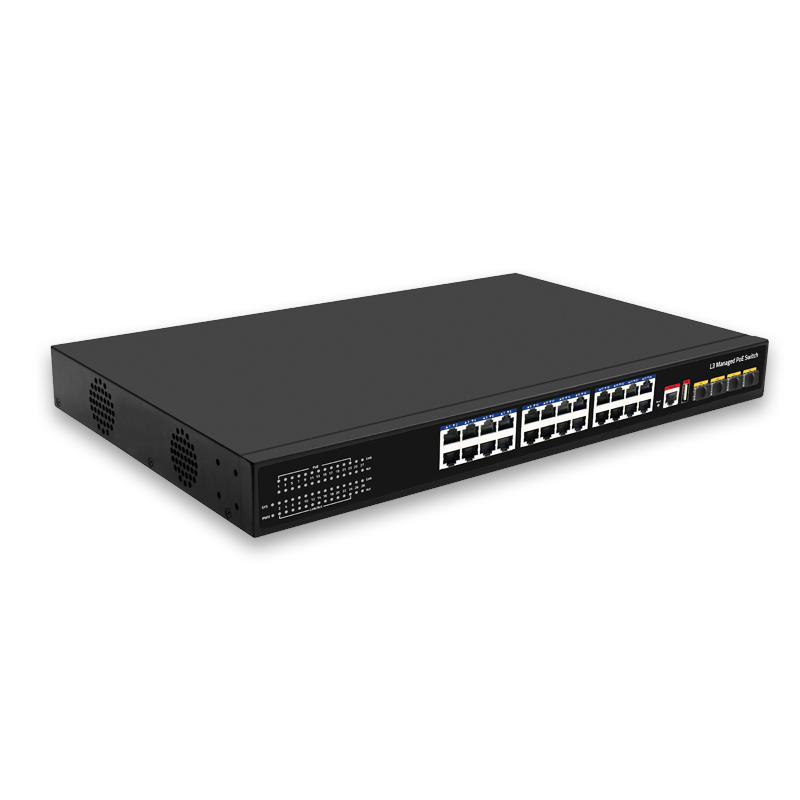

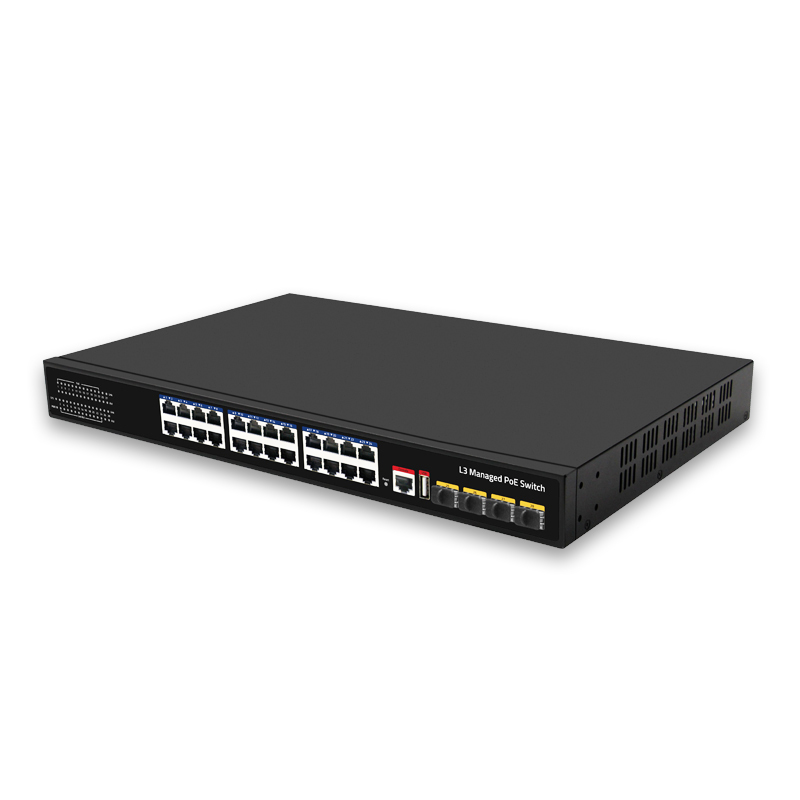

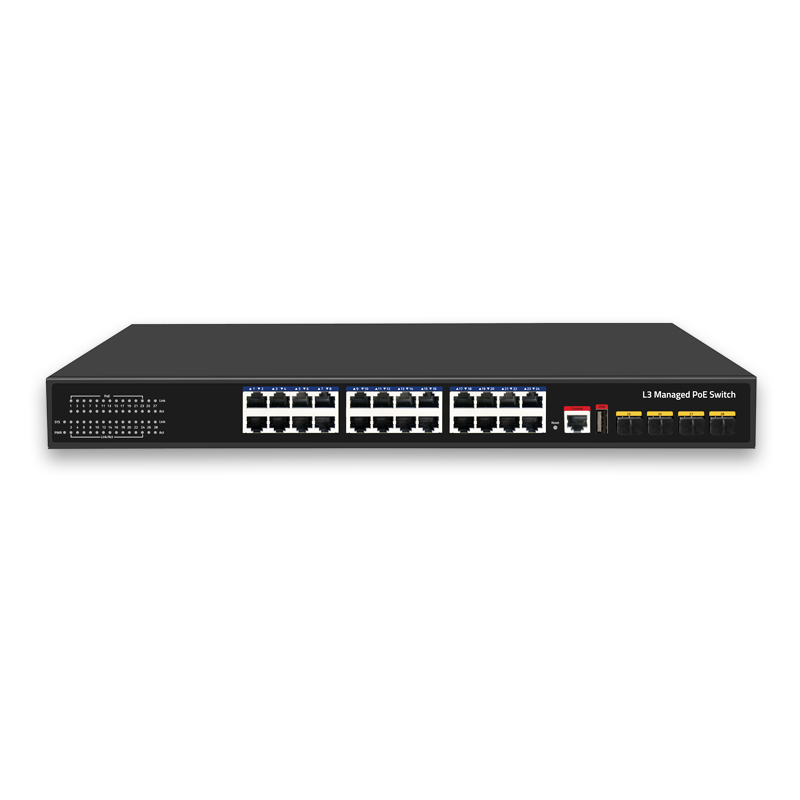

28 Port 10G Uplink 24 Port Gigabit L3 Managed Ethernet POE Switch, which provide 24*10/100/1000 adaptive POE electrical port, 4*10G SFP+ Port, 1*Console port, 1*USB series port. Designed with a high-quality high-speed network IC and the most stable POE chips. POE ports satisfy the IEEE 802.3 af/at standard. This series POE Switch can provide no-gap links for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to the power receiving device that meets the standard, while intelligent detection of non-PoE devices does not supply power, transmitting data only.
| Power | AC100-240V / 50-60Hz |
| Ethernet | 24*10/100/1000Mbps POE Port 4*10G SFP Port 1*RJ45 Console Port 1*USB Port |
| Capacity | 128Gbps |
| Packet Forwarding Rate | 95.23Mpps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Packet Buffer Memory | 12Mbit |
| MAC Address | 16K |
| Jumbo Frame | 12Kbytes |
| VLANs | 4096 |
| MTBF | 100000 hours |
| Network Protocol |
IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet (optical fiber) IEEE 802.3az: Energy-efficient Ethernet IEEE 802.3ad: Standard method of performing link aggregation IEEE 802.3x: flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer 2 Qos/Cos protocol related to traffic priority IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
| PoE Protocol |
IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) |
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m) 100Base-TX: Cat5 or above UTP/STP (≤100m) 1000Base-TX: Cat5 or above UTP/STP (≤100m) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
| PWR (Power Indicator) |
Lighting: Powered Un-Light: No Power |
| SYS (System Indicator) |
Flashing: not start or fail Lighting: System Running |
| Link (Link Indicator) |
Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect |
| PoE/ACT (PoE Indicator) |
Lighting: PoE on Un-Light: PoE off |
| ACT (Data light) |
Steady on: Link connected Flashing: data transmission No light: The link is unreachable |
| Power Voltage |

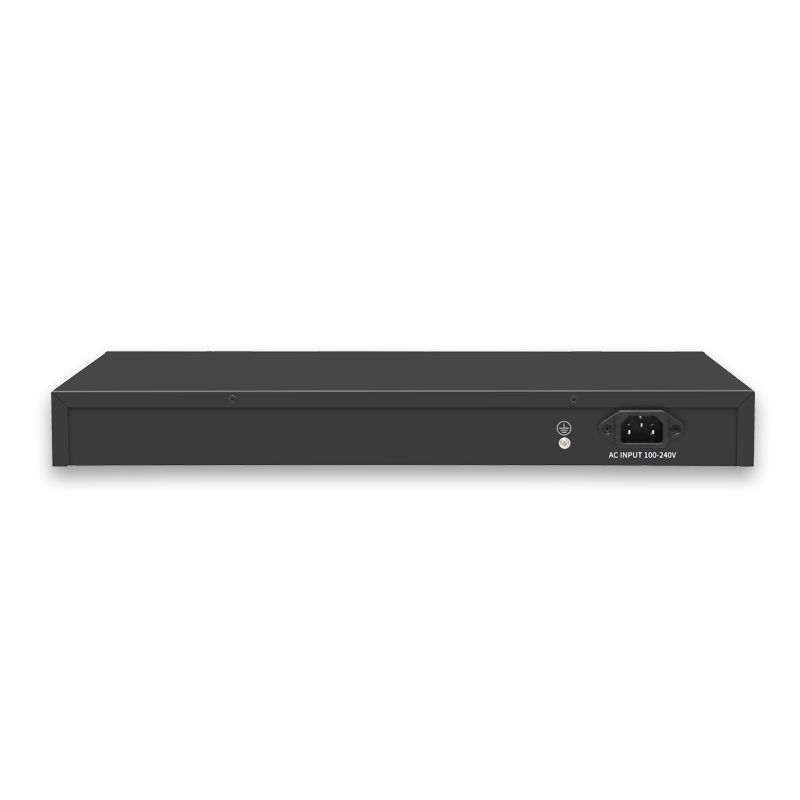

Input voltage: AC100-240V/50-60Hz Power supply: 52V 7.5A 12V 4A |
| Power Consumption |
Product Consumption: 33W PoE Budget: 390W Total Power Consumption: 440W |

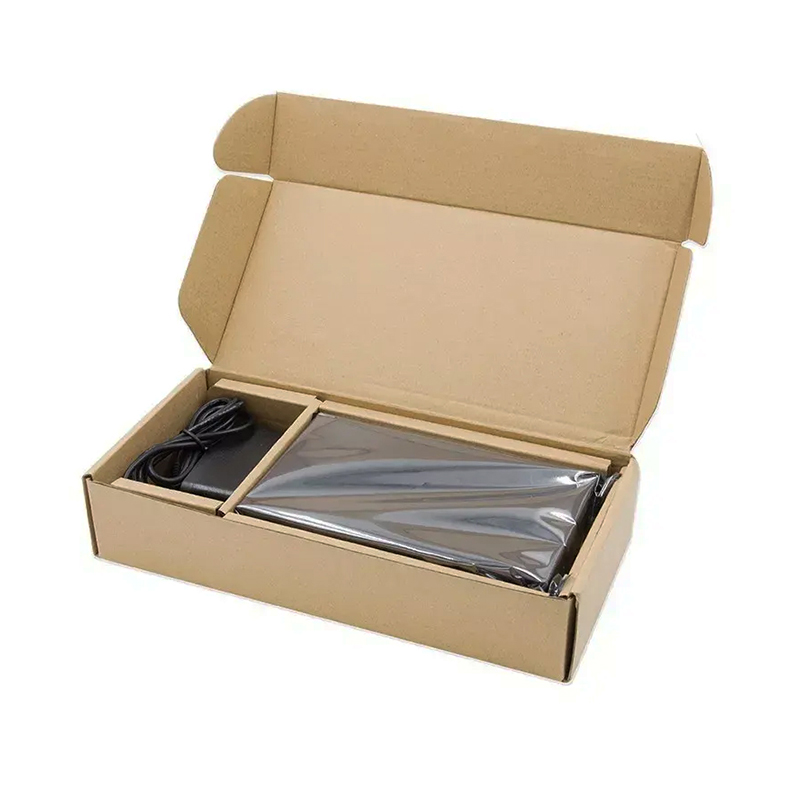

| Package List | Ethernet switch 1 set, Instruction manual 1 pcs, Certificate 1 pcs, Power cord 1 pcs, Serial cable 1 pcs, Brackets 1 pair |
