L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
1 / 5
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design
L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design

L3 Managed 48-Port POE Gigabit Ethernet Switch with SNMP and QoS Stackable Design

Send Inquiry

Product Description

L3 Manage POE Switch
48*1000M PoE + 4*10G SFP + 1*Console + 1*USB serial

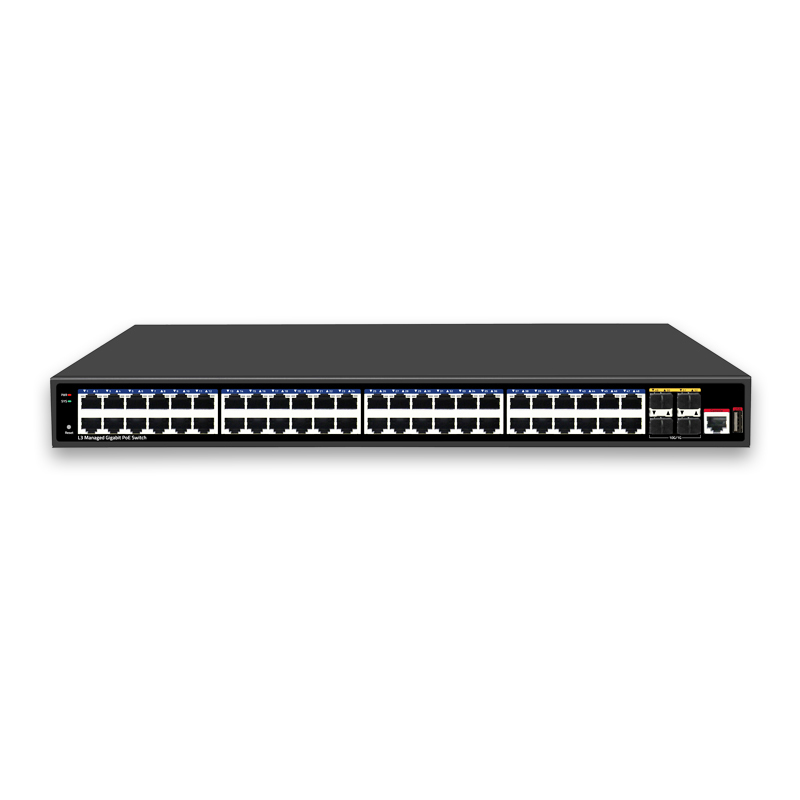

L3 Manage POE Switch front view

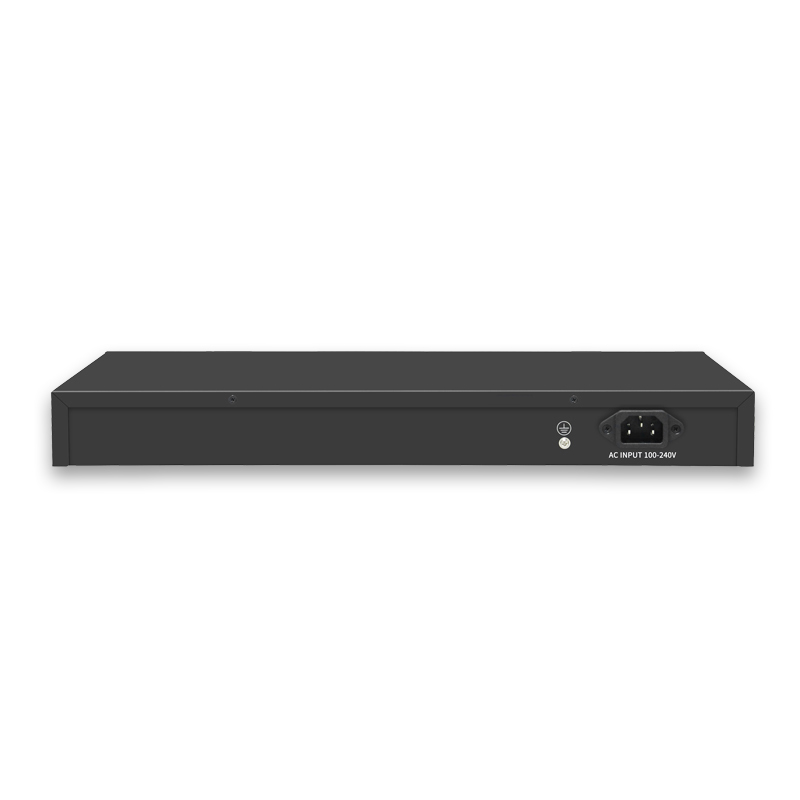

L3 Manage POE Switch ports view
52-port 10-gigabit Ethernet Layer 3 management POE switch provides 48 10/100/1000 adaptive POE electrical ports, four 10 Gb SFP + ports, one console port, and one USB serial port. Improved security control policy and CPU protect policy improve fault tolerance, ensure stable network operation and link load balancing; The device supports automatic DoS attack defense, SNMP, IEEE 802.1, spanning tree and fast spanning tree protocol, and link aggregation. Advanced security features and advanced quality of Service (QoS), which can be used as a core, distributed or access layer switch with high-end port density and easy management, are ideal for a variety of business networking applications.
Specification
  • 1. Compatible with IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;
  • 2. L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2;
  • 3. Support Spanning Tree Protocol STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);
Specification image 1
  • 4. Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN;
  • 5. Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection;
  • 6. Support IPV4/IPV6, RIP, OSPF;
  • 7. Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standards;
  • 8. Support PoE management, PoE watchdog.

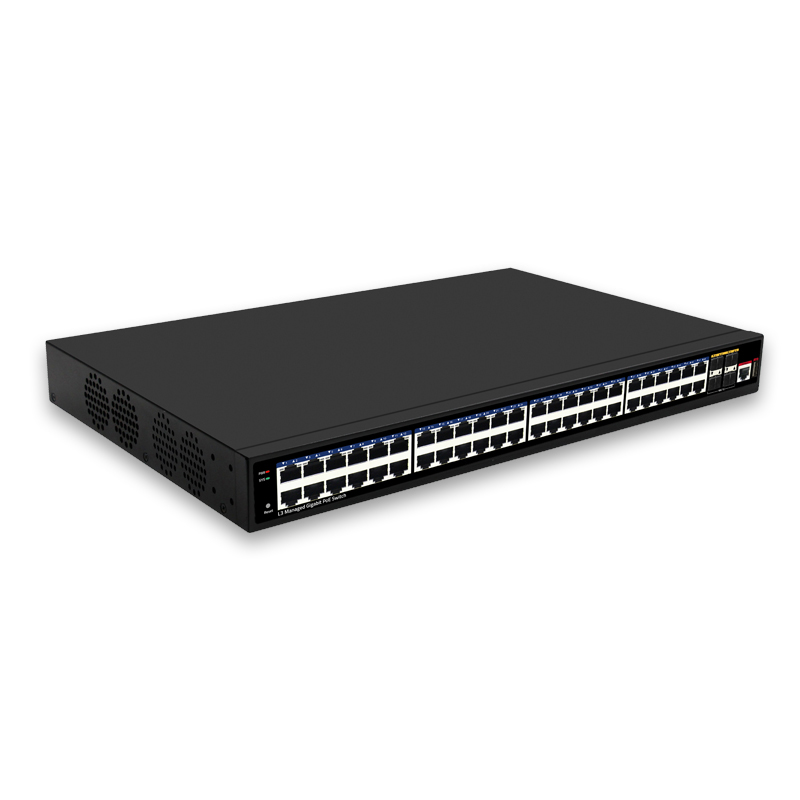

Specification image 2
Power AC100-240V/50-60Hz
Ethernet 48*10/100/1000Mbps POE Port
4*10G SFP Port
1*RJ45 Console Port
1*USB Port
Capacity 176Gbps
Packet Forwarding Rate 131Mpps
DDR SDRAM 512MByte
Flash Memory 32MB
Packet Buffer Memory 16Mbit
MAC Address 32K
Jumbo Frame 12Kbytes
VLANs 4096
MTBF 100000 hours
Network Protocol IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae: 10G Ethernet (optical fiber)
IEEE 802.3az: Energy-efficient Ethernet
IEEE 802.3ad: Standard method of performing link aggregation
IEEE 802.3x: flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer 2 Qos/Cos protocol (multicast filtering function) related to traffic priority
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP
PoE Protocol IEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3bt (90W)
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Network Medium 10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m)
100Base-TX: Cat5 or above UTP/STP (≤100m)
1000Base-TX: Cat5 or above UTP/STP (≤100m)
Multi-mode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Working Environment Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
PWR (Power Indicator) Lighting: Powered
Un-Light: No Power
SYS (System Indicator) Flashing: not start or fail
Lighting: System Running
Link (Link Indicator) Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect
PoE/ACT (PoE Indicator) Lighting: PoE on
Un-Light: PoE off
ACT (Data light) Steady on: Link connected
Flashing: data transmission
No light: The link is unreachable
Power Voltage Input voltage: AC100-240V/50-60Hz
Power supply: 52V 7.5A 12V 4A
Power Consumption Product Consumption: 33W
Total Power Consumption: 600W
Package List Ethernet switch 1 set, Instruction manual 1 pcs, Certificate 1 pcs, Power cord 1 pcs, Serial cable 1 pcs, Brackets 1 pair

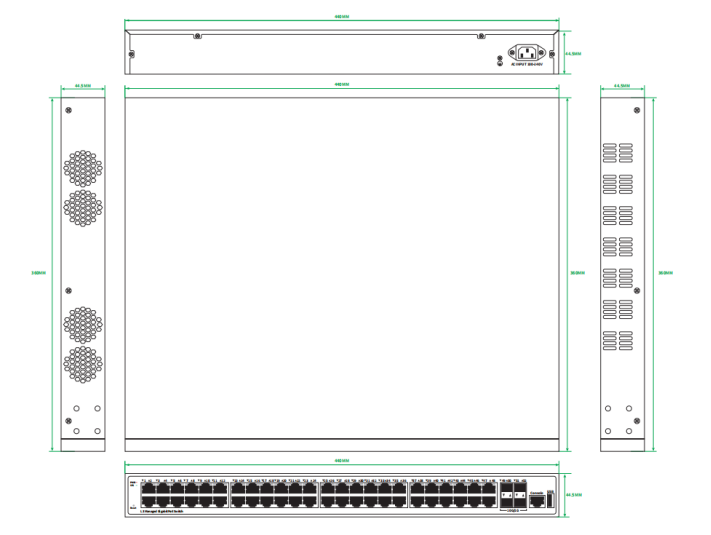

Switch configuration detail

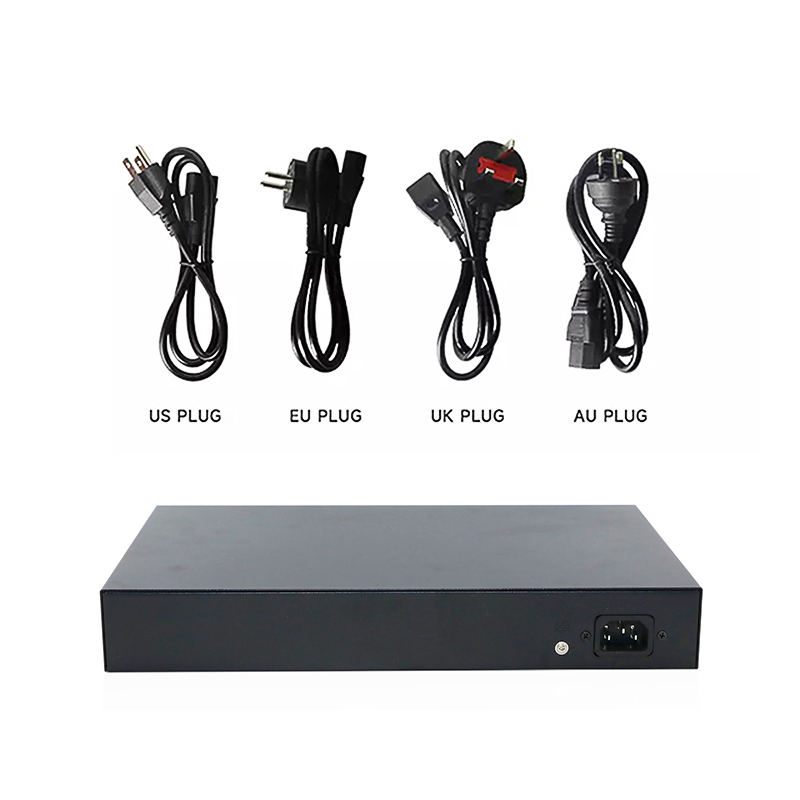

Switch detail front view
Switch detail side view
