| Ethernet | 24* 10/100/1000Mbps PoE Port 4* 1000M RJ45 Port(Combo) 4*1000M SFP Port (Combo) 1 * RJ45 Console Port |
| Switching Capacity | 56Gbps |
| Throughput | 41.66Mpps |
| Packet Buffer | 4Mb |
| Flash Memory | 16MB |
| DDR SDRAM | 128MB |
| MAC Address | 8K |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100,000 hours |
| Network Protocol |
IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3ad: Link aggregation method IEEE 802.3x: Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer QoS/CoS Traffic Prioritization IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Industry Standards | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP (≤100m) 100Base-TX: Cat5 or above UTP (≤100m) 1000Base-TX: Cat5 or above UTP (≤100m) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working Environment |
Working Temperature: -10 ~ 50°C Storage Temperature: -40 ~ 70°C Working Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5% ~ 90%, non-condensing |
| LED Indicators | PWR (power supply), SYS (System), 1-24 PoE&ACT (PoE), 1-24 Link&ACT (Link&Act), 25-28 Link (Link), 25-28 Act (Act) |
| DIP Switch | Reset |
| Power Voltage | Input Voltage: AC 100-240 V Power supply: 52V 7.69A |

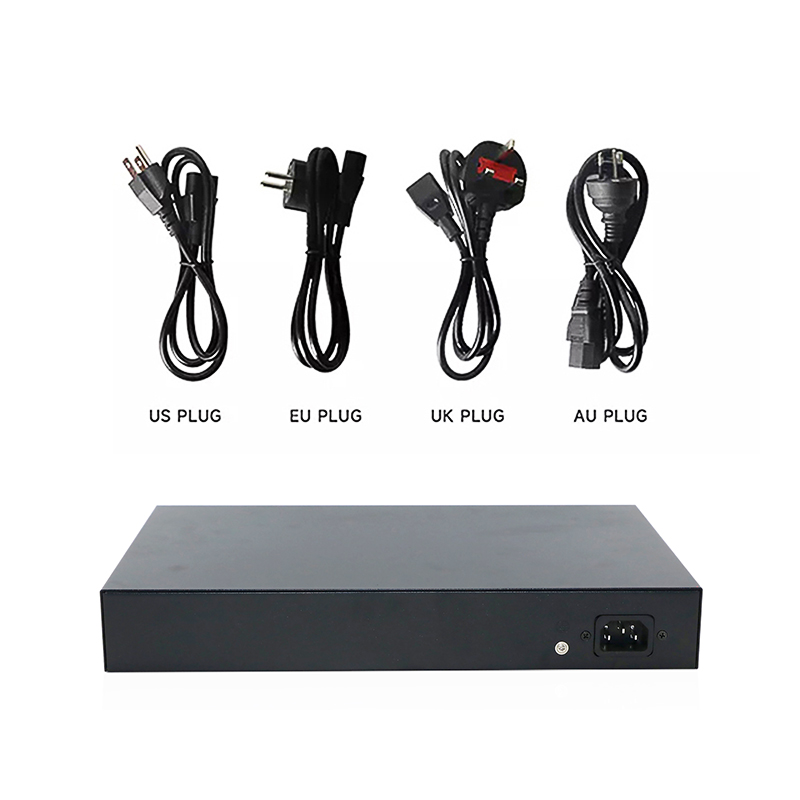

| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair (Selectable) |
