| Ethernet Specifications | |
| Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3af Power over Ethernet, IEEE802.3at Power over Ethernet |
| Processing Type | Store-and-Forward |
| Forward Filter Rate | 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) |
| Packet Buffer Memory | 1 Mbit |
| Max Packet Length | 9K Bytes |
| Address Table Size | 2K MAC Addresses |

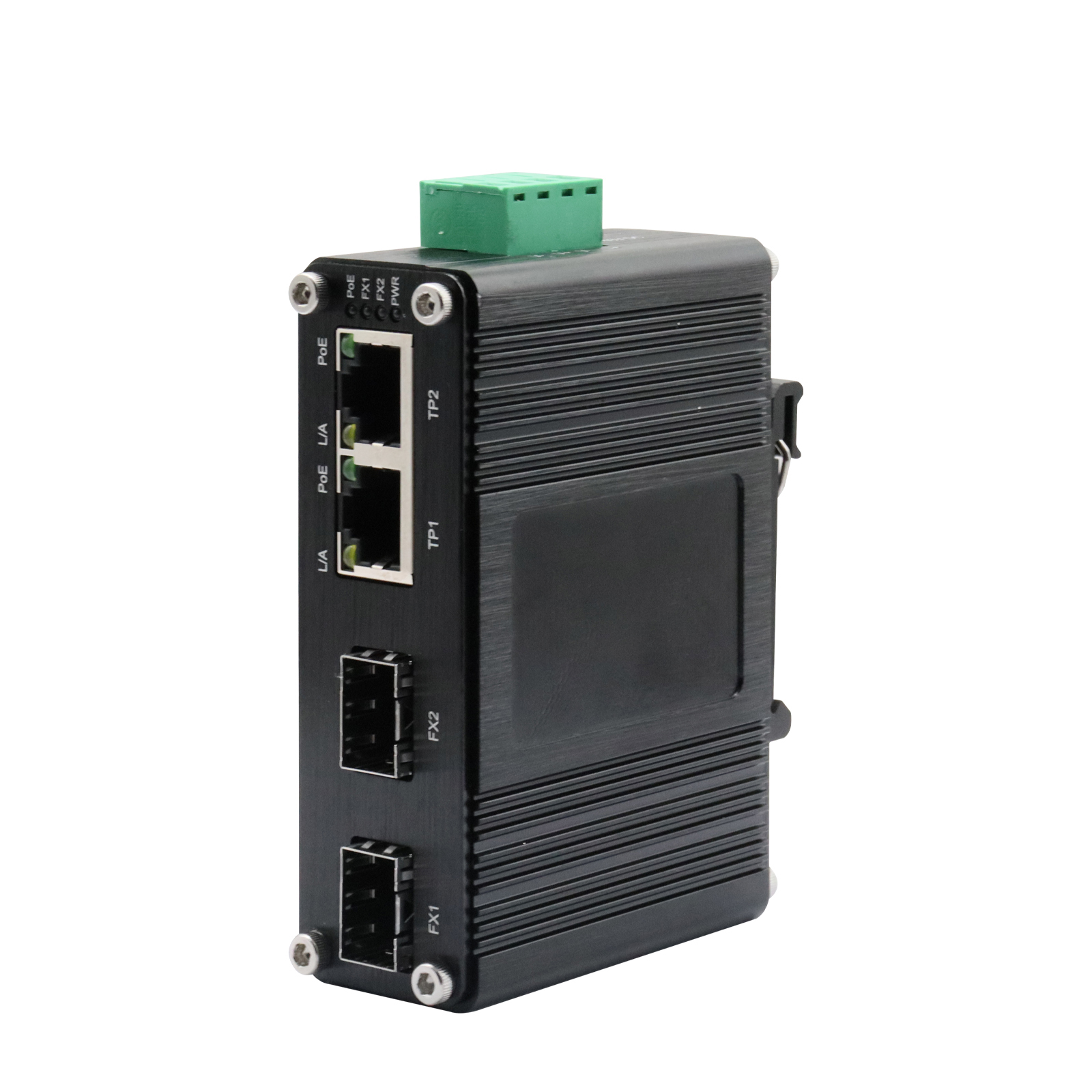

| Interface | |
| Connector | 2 x RJ45 |
| Optical Port | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power | 12~48V DC, 4-pin terminal block |
| Output Power | 48V DC |
| Power Consumption | 65W Max. (5W Max. 0.1A@48V DC with PoE not in use) |
| Dimensions (WxDxH) | 95 x 70 x 30 mm |
| Weight | 0.25Kg |
| Casing | Aluminum Case |

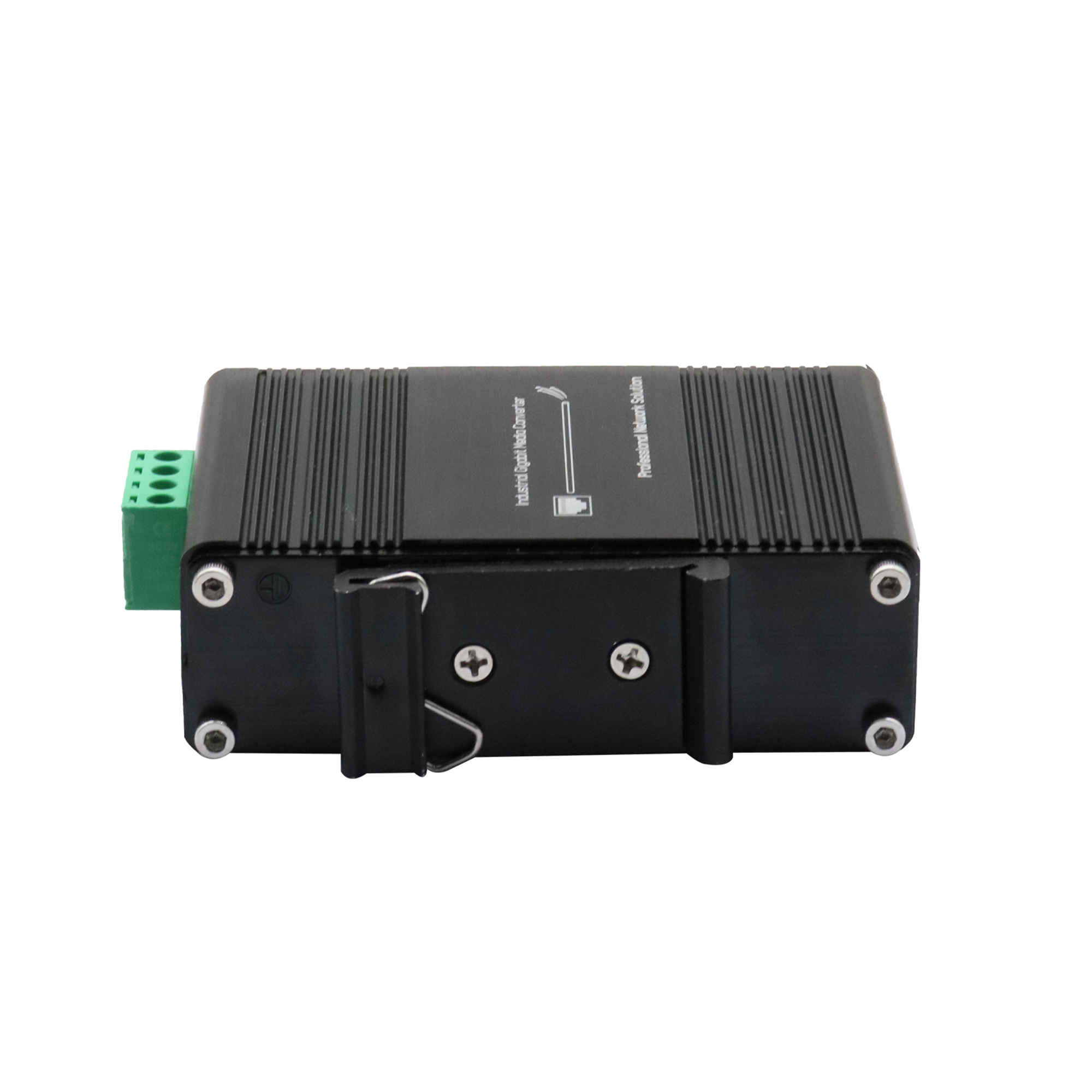

| Mounting Options | DIN-Rail / Wall-mount |
| PoE | |
| Port | RJ45 Port 1 ~ Port 2 |
| Max. Power per Port | 30W Max per port (Alternative B Mode) |
| LED Indicators | |
| PWR | Power Status |
| RJ45 | LINK/Activity |
| SFP | LINK |
| PoE | Per Port Status |
| Environmental Parameters | |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| Certifications | ISO9001, CE, FCC, RoHS |
| EMI |
EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS |
IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
| Model | Description |

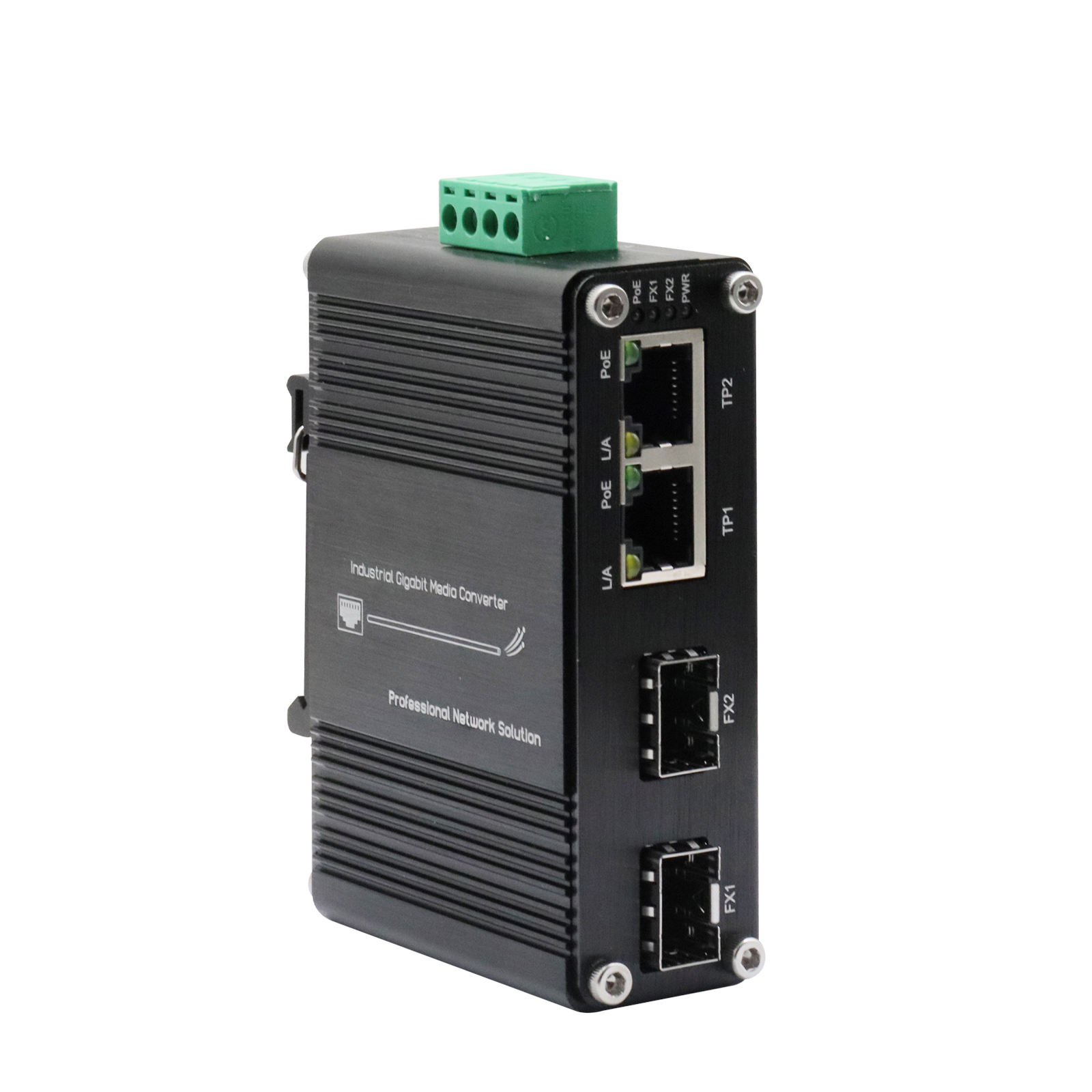

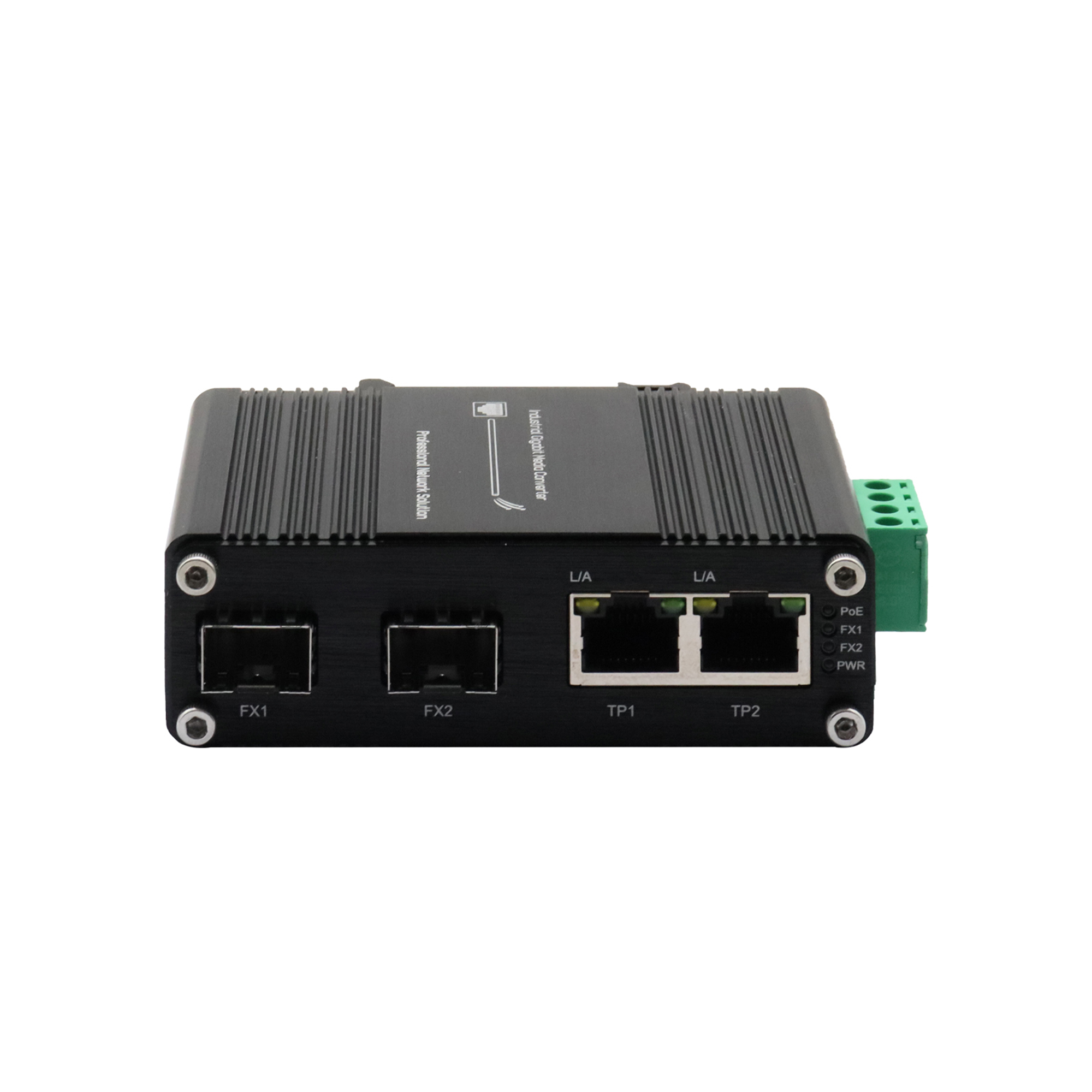

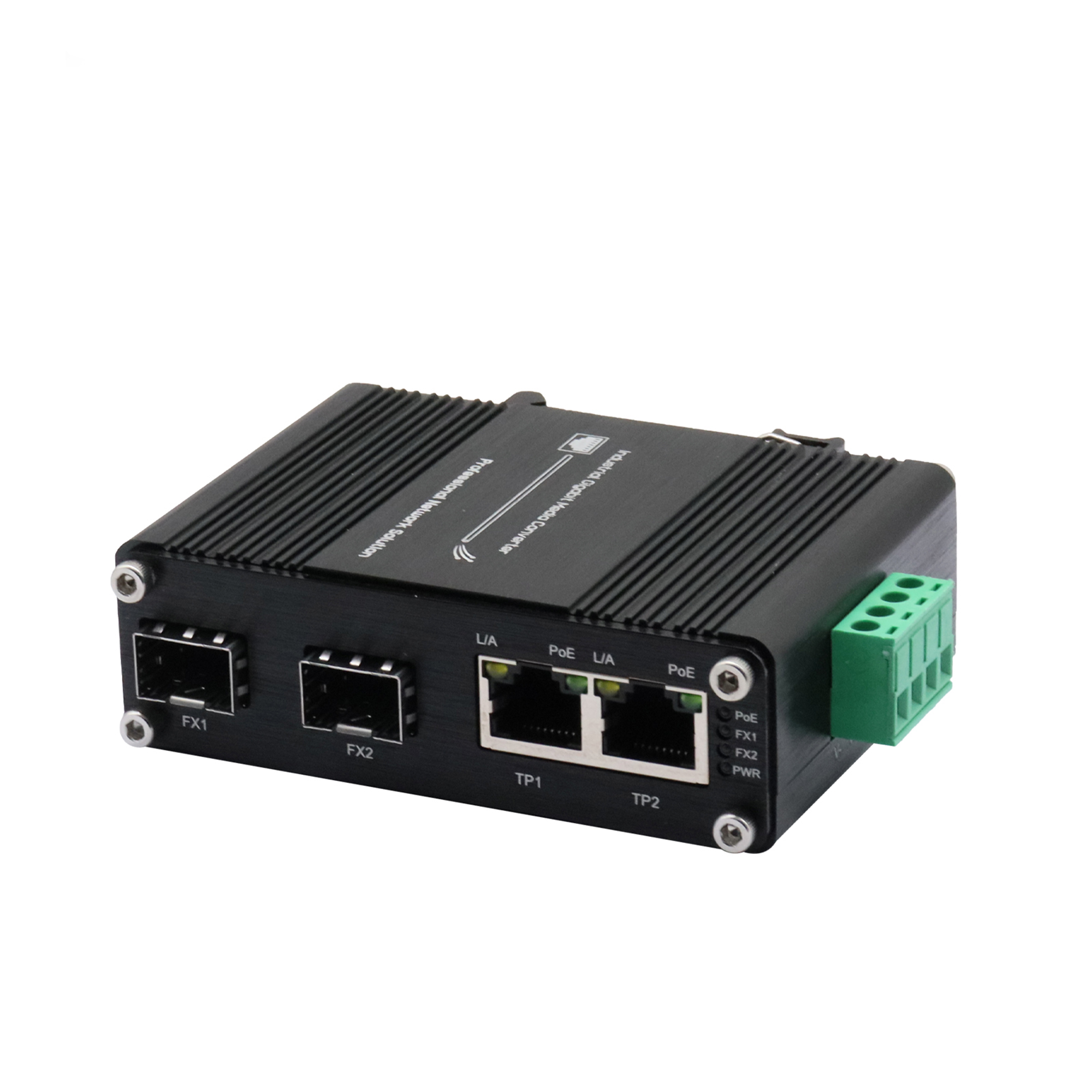

| POE-IMC202GP-SFP | Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options |
• SFP option. Please select your SFP on our Industrial SFP options catalog. • SFP module is to be purchased separately. |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
• 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block. • Power Supply is to be purchased separately. |
