Save time, Reduce costs, More convenient

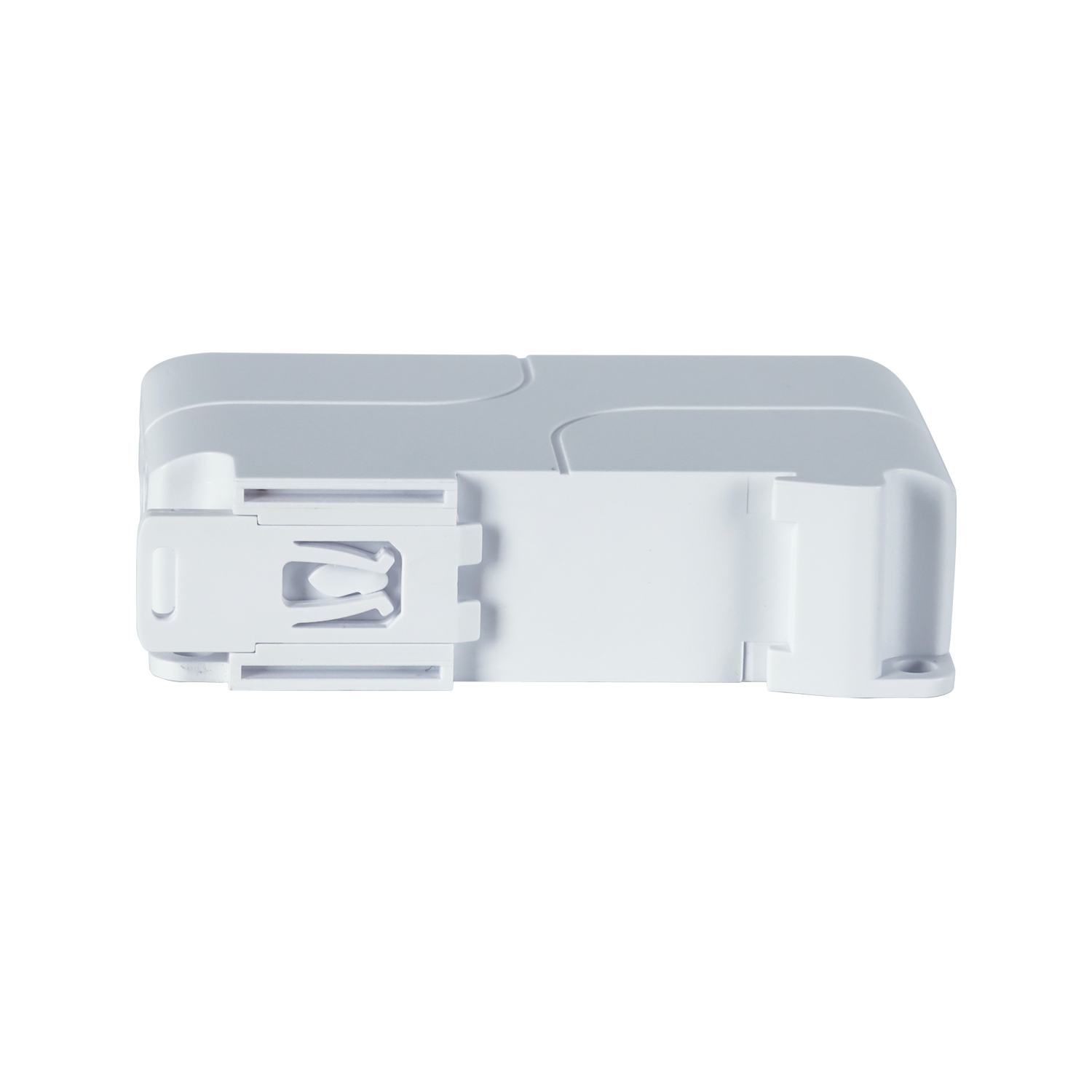

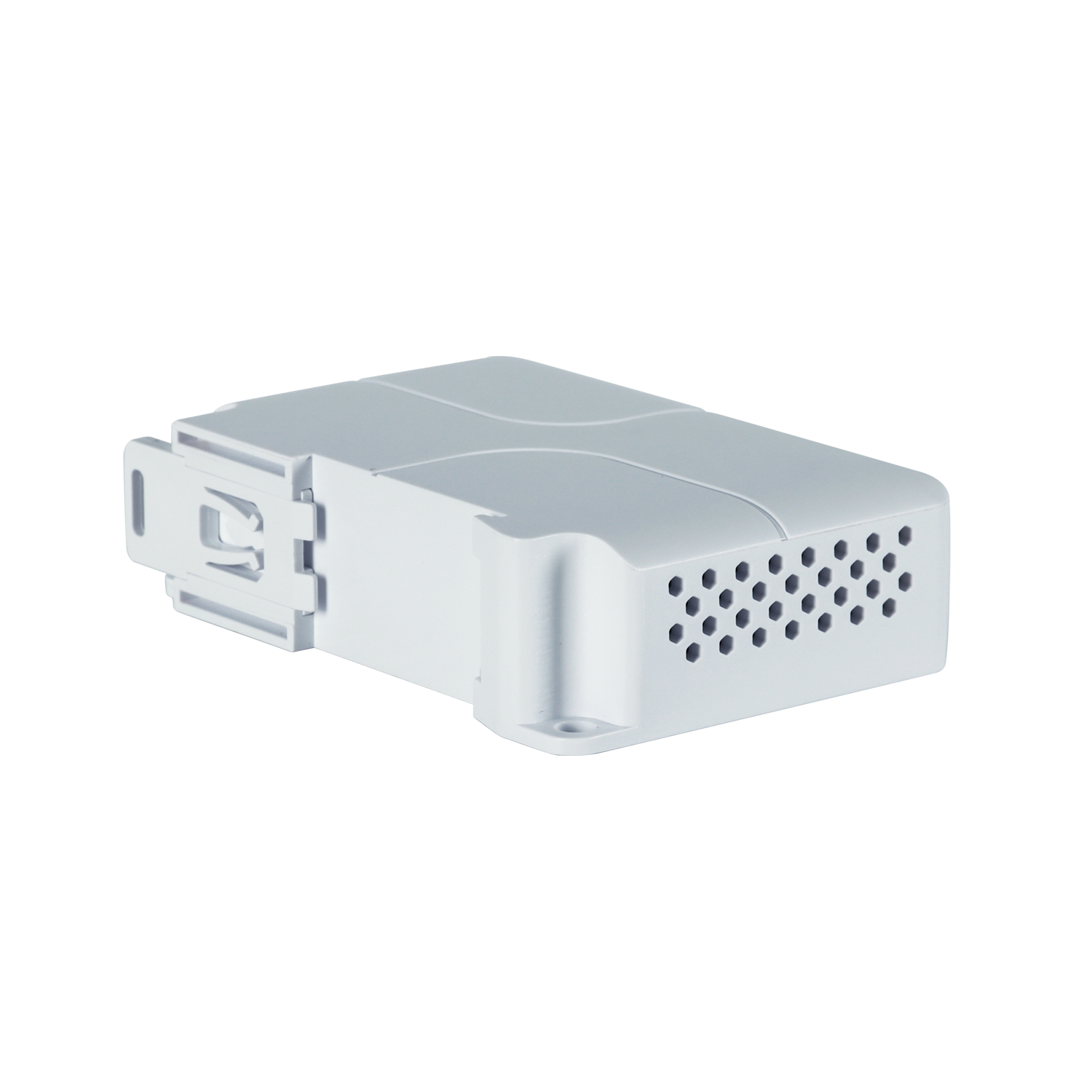

Designed for industrial and enterprise networking environments, facilitating easy rail-mount installation for structured networks.
Automatically identify POE-connected devices, protecting non-PoE network equipment from damage while delivering optimal power delivery.

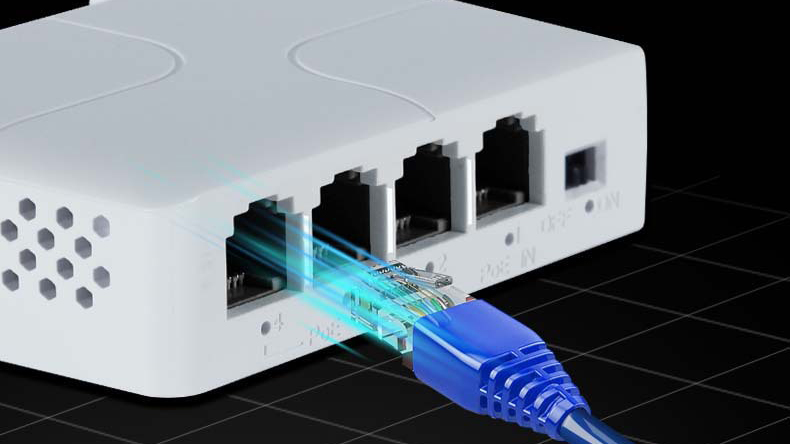

No need for additional power supply installation. Simply connect the network cable and extend your transmission range instantly.
| Model | AT13-C | BT14-A | AT13G-C | BT14G-A |
|---|---|---|---|---|
| Rate | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps | 10/100/1000Mbps |
| POE Port | 1 in 3 out | 1 in 4 out | 1 in 3 out | 1 in 4 out |
| Power Input Pin | 1/2+, 3/6-, 4/5+, 7/8- | |||
| Power Output Pin | 1/2+, 3/6- | |||
| Whole Power | ≤25W | Port 2: 60W max, Port(3~5): 30W max | ≤25W | Port 2: 60W max, Port(3~5): 30W max |
| POE Protocol | IEEE 802.3af/IEEE 802.3at | |||
| Power Distance | ≤250m | |||
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at | |||
| Data Distance | ≤100m | |||
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging, IEEE802.3X Full-duplex mode and backpressure for Half-duplex mode | |||
| Working Temp | -10°C - 55°C | |||
| Weight | 0.55kg | |||

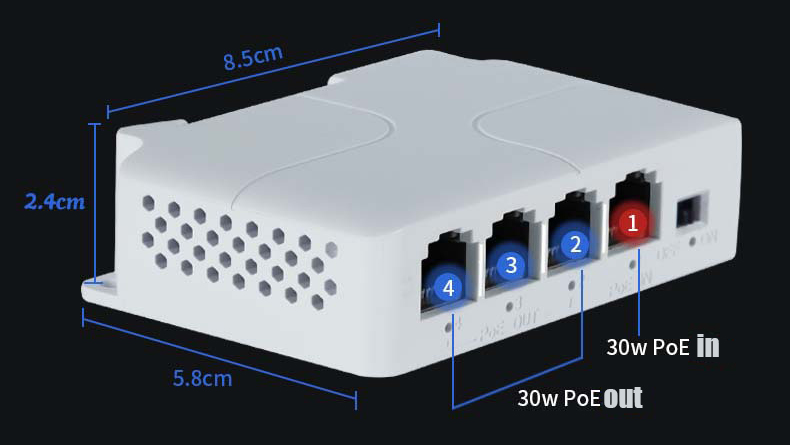

| Size (L*W*H) | 82*52*23mm | |||

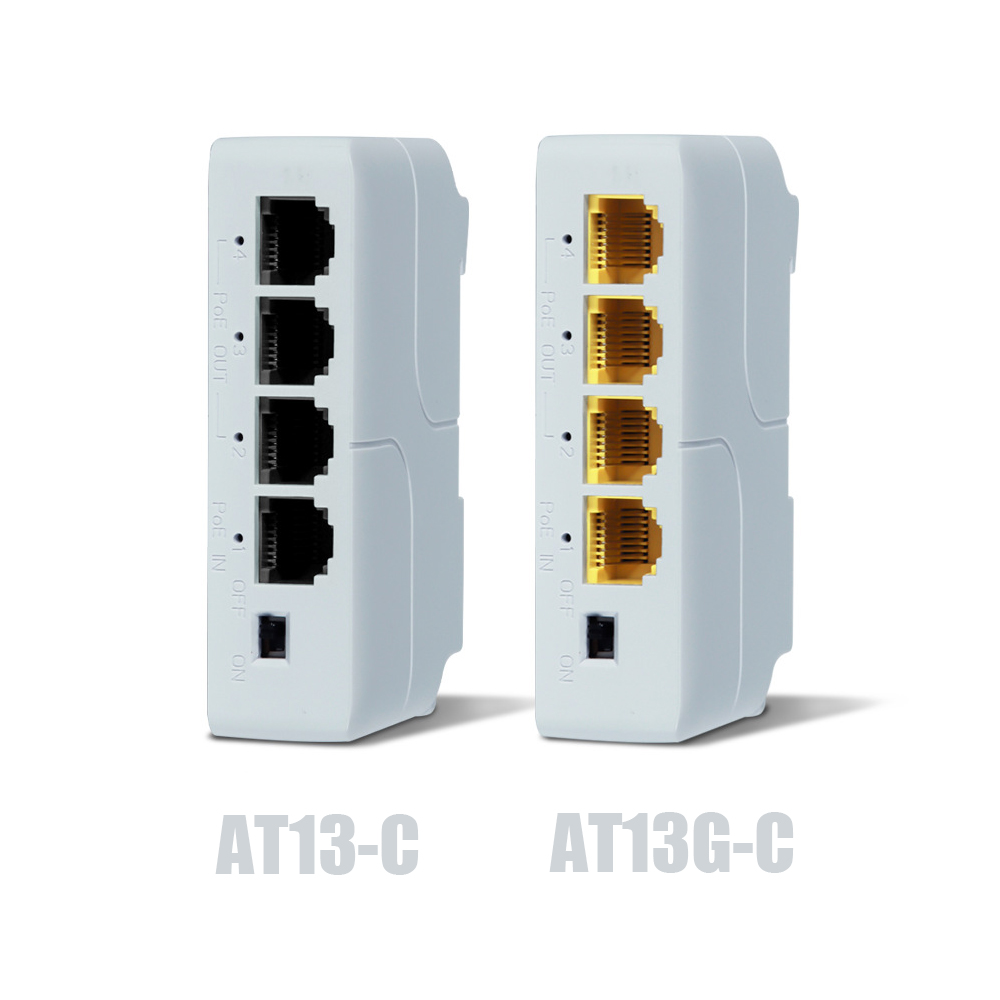

| Model | Introduction |
|---|---|
| AT13-C | POE Extender 10/100Mbps 1-IN 3-OUT, 100m. POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| BT14-A | POE Extender 10/100Mbps 1-IN 4-OUT, 100m. POE Input: 44~57V/90W, POE Output: Port 2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
| AT13G-C | POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m. POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| BT14G-A | POE Extender 10/100/1000Mbps 1-IN 4-OUT, 100m. POE Input: 44~57V/90W, POE Output: Port 2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
