Waterproof Rail-mounted 10/100Mbps IEEE 802.3AF/AT/BT PoE Extender Full-Duplex Half-Duplex High Speed Underwater Commercial Use

Send Inquiry

Product Description

Outdoor Waterproof PoE Extender

Save time Reduce costs More convenient

Built-in professional POE chip

Automatically identify POE-connected devices

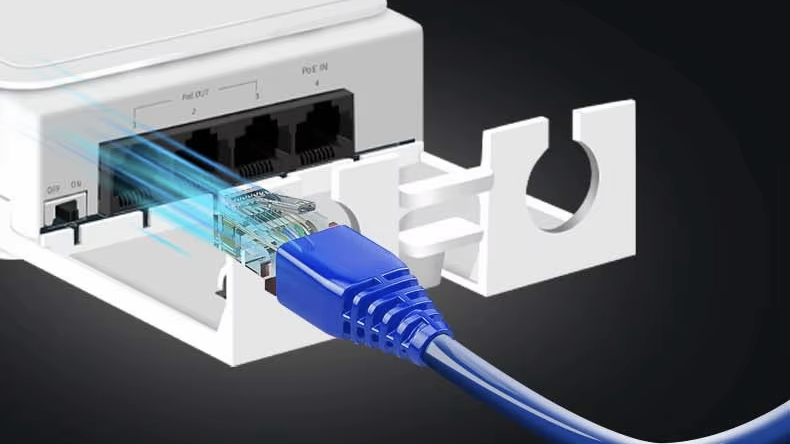

Plug-and-play

No need for power supply, Just plug in the network cord and it can be used

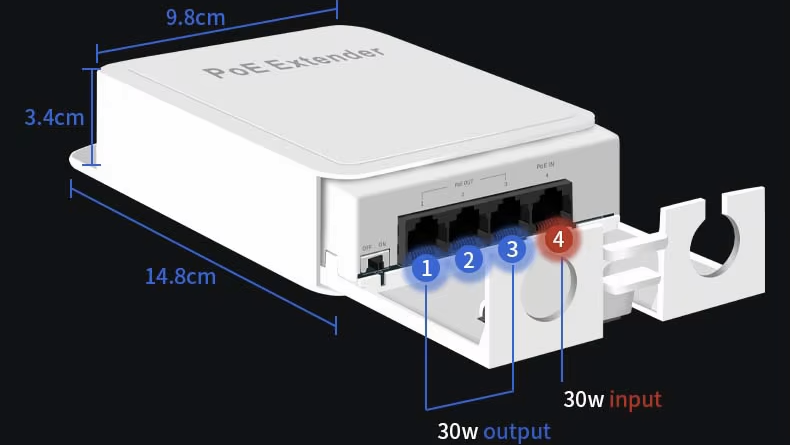

Product Parameters

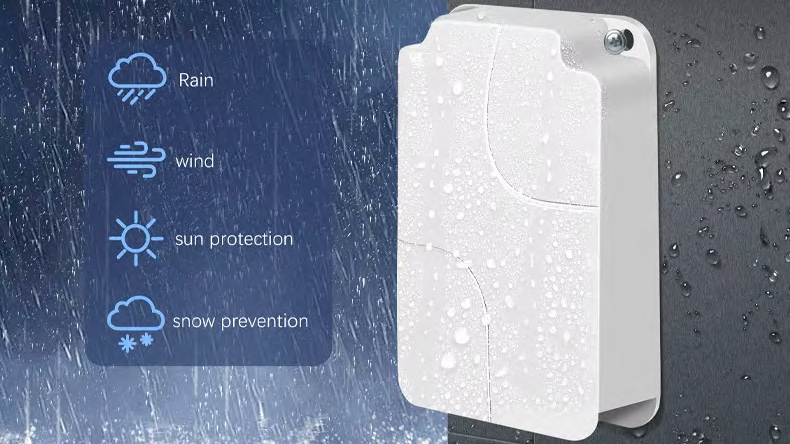

IP55 grade, dustproof and waterproof

Using a highly weather-resistant shell, it can adapt to various extreme weather conditions.

Specification

Model	WAT13-C	WBT14-A
Network Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT/BT
Port	10/100Mbps	10/100/1000Mbps
POE Power	POE Input: 44~57V/30W POE Output (1~3): 44~57V/25W	POE Input: 44~57V/90W POE Output: Port 2: 60W max, Port (3~5): 30W max
POE Connection	POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission
Performance	Store and forward MAC address table 2k
Forwarding Rate	10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port	10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode
Environment	Operating Temperature: -10℃ -- 55℃
Power	Input: DC44-57V
Weight & Size	180g, 98mm × 148mm × 34mm (L × W × H)

Order Info

Model	Introduction
WAT13-C	Outdoor Waterproof POE Extender 10/100Mbps 1-IN 3-OUT, 100m POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT
WBT14-A	Outdoor Waterproof POE Extender 10/100Mbps 1-IN 4-OUT,100m POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT
WAT13G-C	Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT
WBT14G-A	Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 4-OUT,100m POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT

Frequently Asked Questions

Q1 What is your MOQ request?

It depends on the products. Different products have different MOQ. Please reach out to our team for detailed information on specific models.

Q2 Do you Support ODM/OEM service?

Yes, we offer customization services tailored to your specifications and branding requirements.

Q3 Do your products support other brands?

Yes, all of our products are designed without locks and are fully compatible with other industry-standard brands.

Q4 Are you the manufacturer or trading company?

We are the manufacturer, ensuring direct quality control and factory-level support.

Q5 Do you offer free samples?

Yes, for certain models, we are able to provide free testing samples to verify quality and compatibility.

Q6 Are you able to provide the local certificates?

Yes, based on our agreements, we can assist in obtaining regional certifications such as CE, RoHS, Postel, Anatel, and more.
