Save time, Reduce costs, More convenient
Automatically identify POE-connected devices

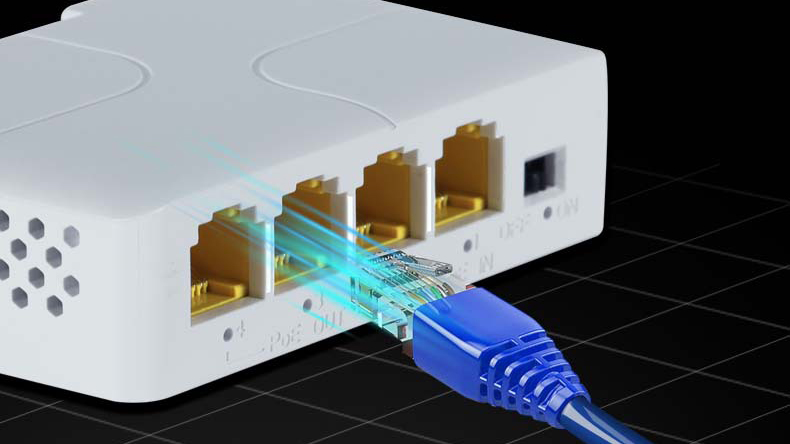

No need for power supply, Just plug in the network cord and it can be used
| Model | AT13-C | BT14-A | AT13G-C | BT14G-A |
|---|---|---|---|---|
| Rate | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps | 10/100/1000Mbps |
| POE Port | 1 in 3 out | 1 in 4 out | 1 in 3 out | 1 in 4 out |
| Power input Pin | 1/2+,3/6- ,4/5+,7/8- | |||
| Power output pin | 1/2+,3/6- | |||
| Whole Power | ≤25W | Port2:60W max, Port(3~5):30W max | ≤25W | Port2:60W max, Port(3~5):30W max |
| POE Protocol | IEEE 802.3af/IEEE 802.3at/EEE 802.3bt | |||
| Power Distance | ≤250m | |||
| POE Protocol | IEEE 802.3af/IEEE 802.3at | |||
| Network Standard | IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at | |||
| Data Distance | ≤100m | |||
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|||
| Working temp | -10°-- 55°C | |||
| Weight | 0.55kg | |||

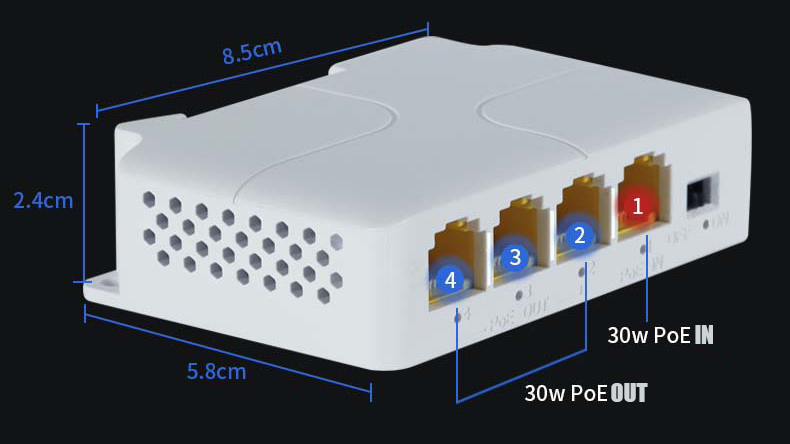

| Size(L*W*H) | 82*52*23mm | |||
| Model | Introduction |
|---|---|
| AT13-C | POE Extender 10/100Mbps 1-IN 3-OUT, 100m POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT |
| BT14-A | POE Extender 10/100Mbps 1-IN 4-OUT,100m POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT |
| AT13G-C | POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT |
| BT14G-A | POE Extender 10/100/1000Mbps 1-IN 4-OUT,100m POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT |
