Save time, Reduce costs, More convenient
Automatically identify POE-connected devices

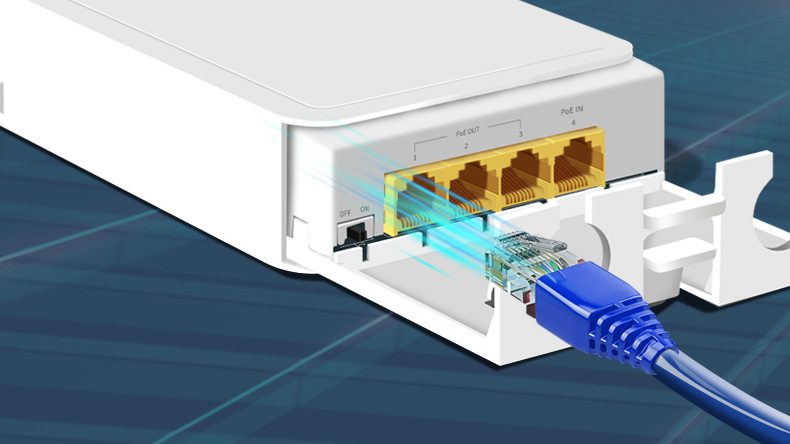

No need for power supply, Just plug in the network cord and it can be used

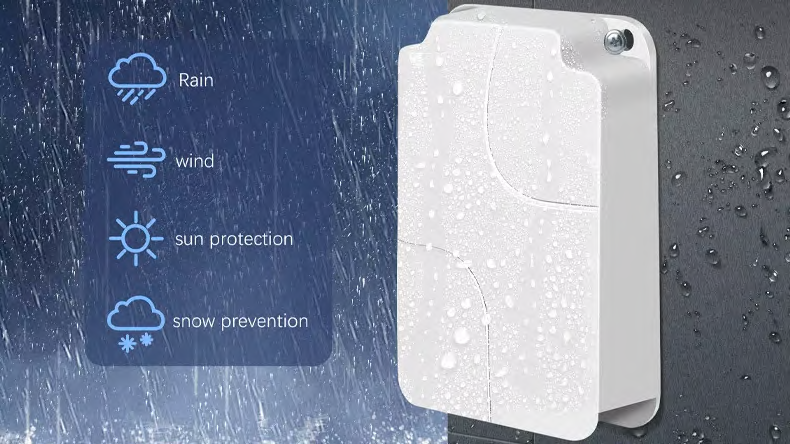

Using a highly weather-resistant shell, it can adapt to various extreme weather conditions.
| Model | WAT13-C | WAT13G-C | WBT14-A | WBT14G-A |
|---|---|---|---|---|
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT/BT | ||
| Port | 10/100Mbps | 10/100/1000Mbps | ||
| POE Power | POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W | POE Input: 44~57V/90W, POE Output: Port2: 60W max, Port(3~5): 30W max | ||
| POE Connection |
POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission |
|||
| Performance |
Store and forward MAC address table 2k |
|||
| Forwarding Rate |
10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port |
10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port |
||
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode | |||
| Environment | Operating Temperature: -10℃ to 55℃ | |||
| Power | Input: DC 44-57V | |||
| Weight & Size | 180g, 98mm × 148mm × 34mm (L × W × H) | |||
| Model | Introduction |
|---|---|
| WAT13-C | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 3-OUT, 100m POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| WBT14-A | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 4-OUT, 100m POE Input: 44~57V/90W, POE Output: Port2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
| WAT13G-C | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| WBT14G-A | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 4-OUT, 100m POE Input: 44~57V/90W, POE Output: Port2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
