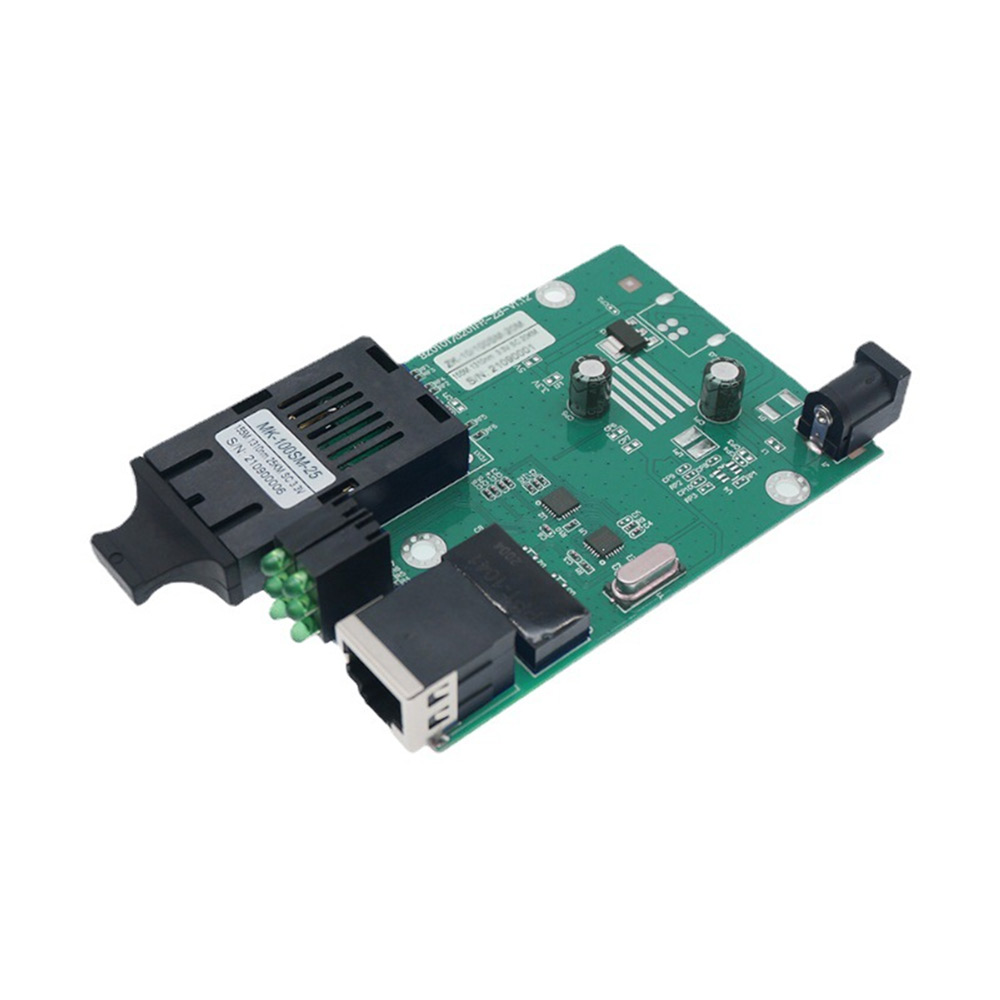

Brand-new complete circuit board, equipped with high-quality chips, ensuring more stable transmission.

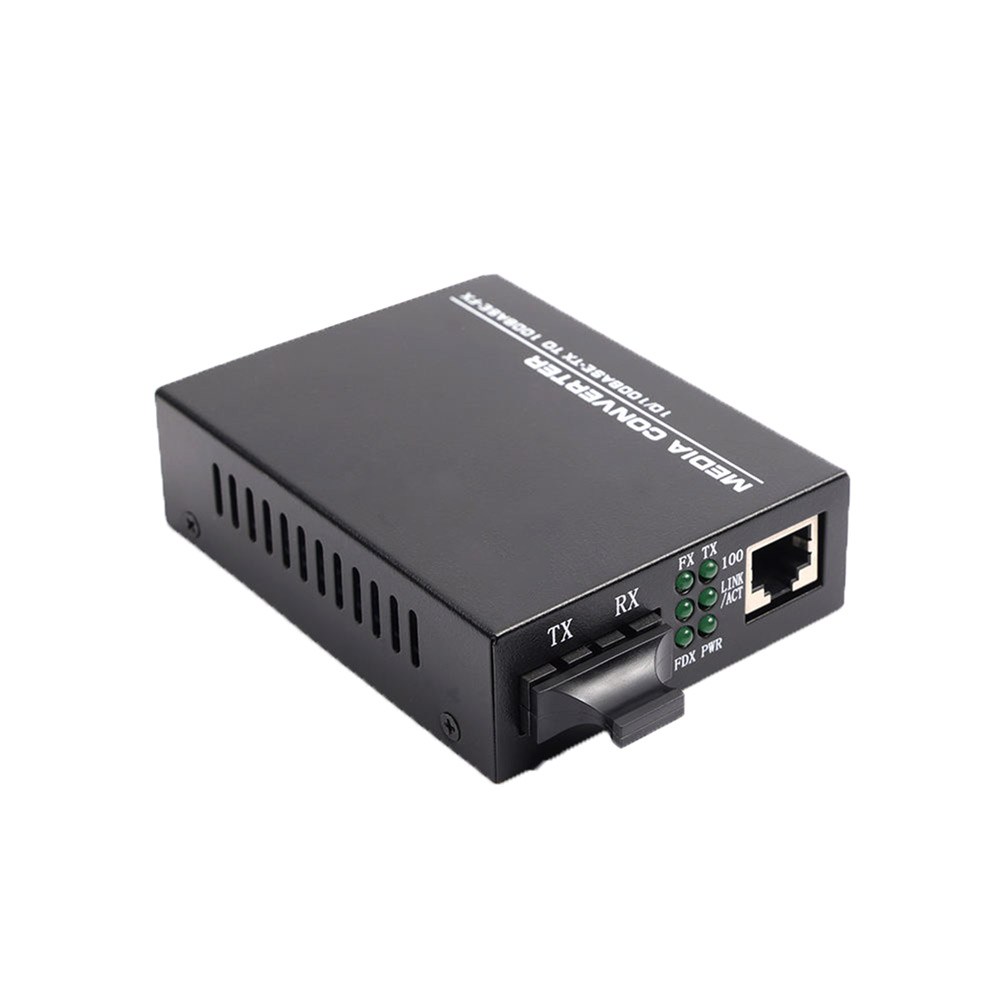

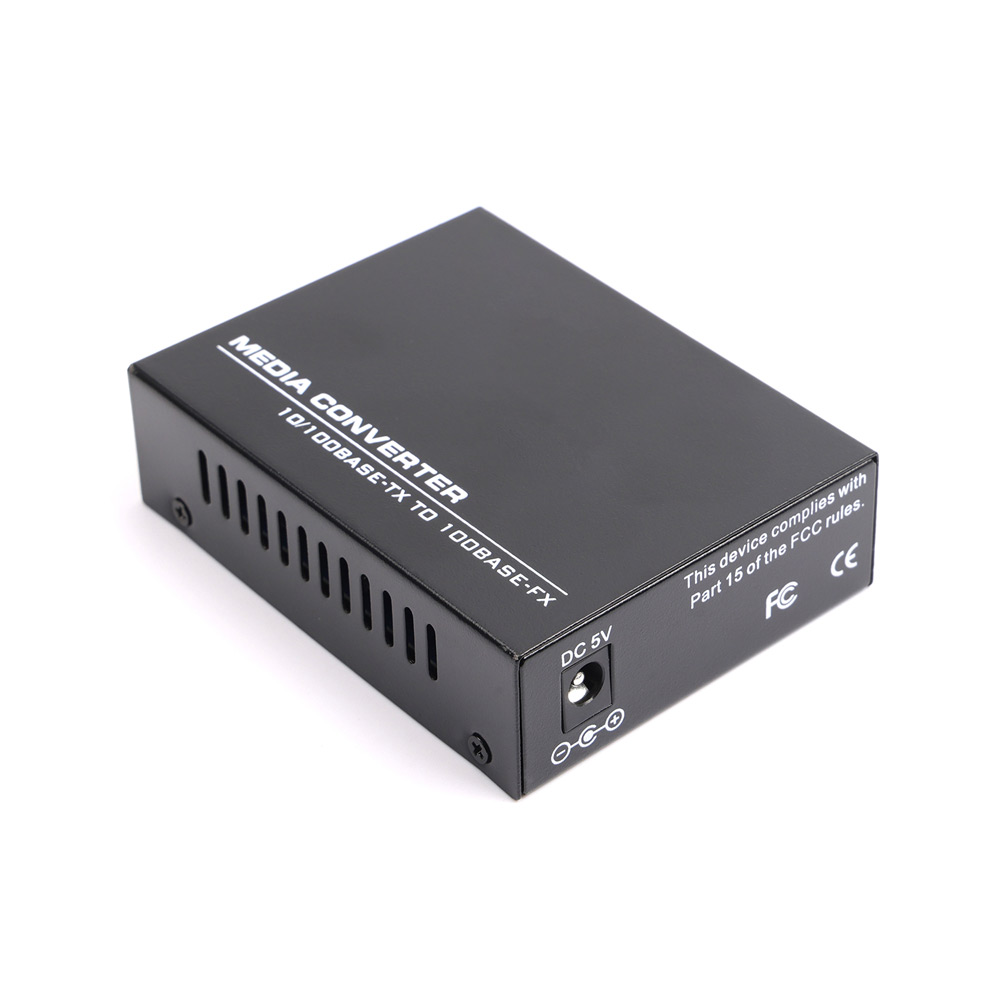

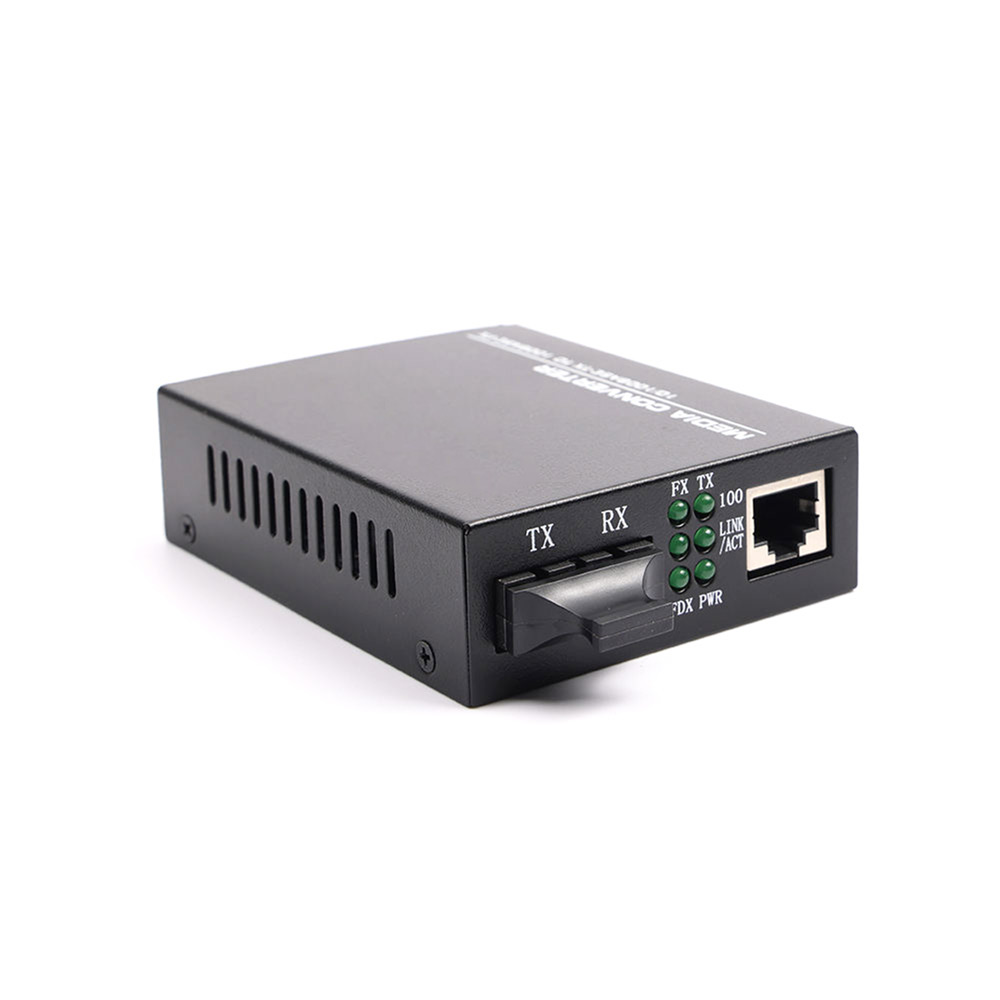

Two sets of cooling holes are designed on both sides, effectively reducing the heat generated during operation, enabling the equipment to work for a longer period of time.
| Technical Parameters | |
|---|---|
| Interface Characteristics | |
| Interface | 1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
| Ethernet Port | 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3, 4, 5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Optical Fiber Port | 155Mbps, multimode dual fiber SC interface |
| Optical Cable/ Distance | Multimode: 850nm / 0 ~ 500m, 1310nm / 0 ~ 2km |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 1.0Gbps |
| Forwarding Rate @ 64byte | 0.3Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frame | 1536byte |

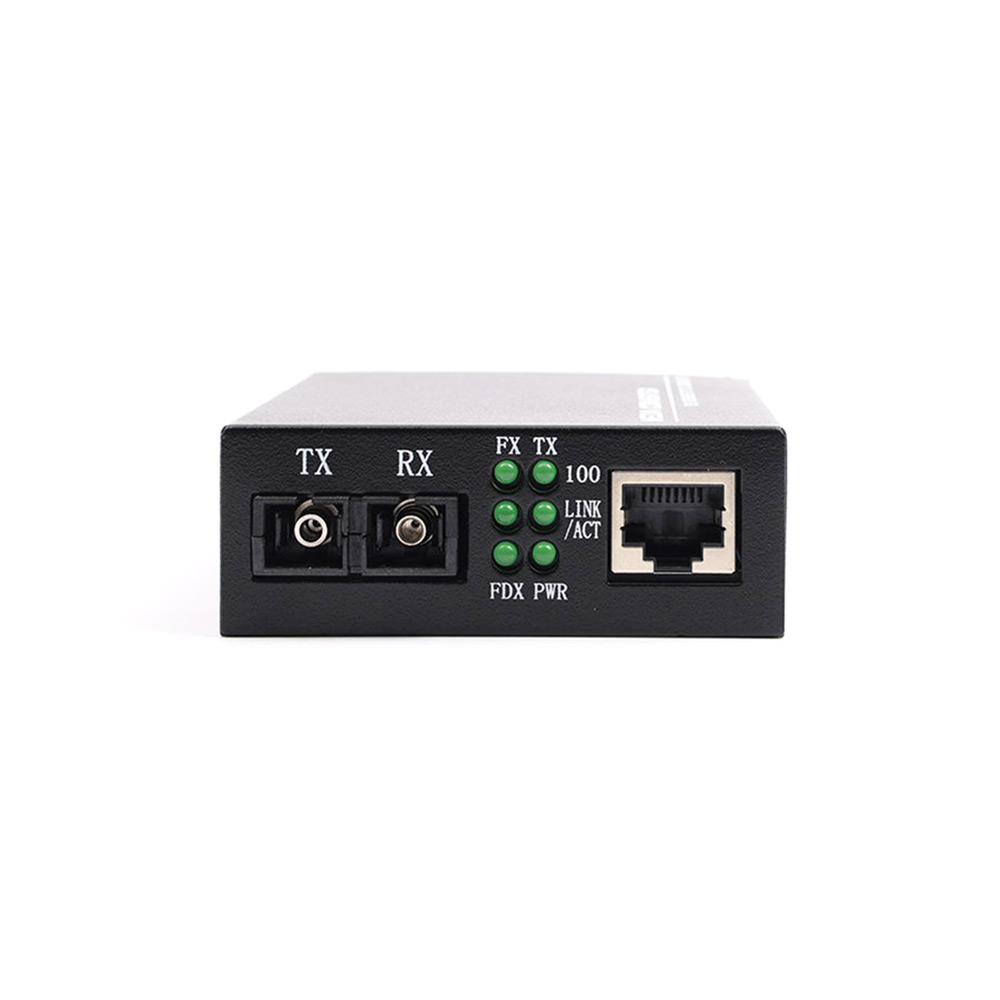

| LED Indicator | Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green), Fiber: FX (green), Rate: 10/100 (green) |
| Power Info | |
| Total PWR / Input Voltage | 3W / (5VDC) |
| Power Consumption | Standby < 1W, Full Load < 3W |
| Physical Parameters | |
| Operation TEMP / Humidity | -20 ~ +55°C; 5% ~ 90% RH Non condensing |
| Storage TEMP / Humidity | -40 ~ +85°C; 5% ~ 95% RH Non condensing |
| Dimension (L*W*H) | 94*71*26mm |
| Net / Gross Weight | <0.2kg / <0.4kg |
| Installation | Desktop, 2U-14 slot rack |
| Certification & Warranty | |
| Lightning protection / protection level | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 1 year, lifelong maintenance. |
| Model | Introduction | Function Details |
|---|---|---|
| RD-FE101-20A RD-FE101-20B |
Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, A: Tx1310nm/Rx1550nm Fiber Media Converter, 10/100Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, B: Tx1550nm/Rx1310nm |
| RD-GS2401-SX | Fiber Media Converter 10/100Mbps 550m | Fiber Media Converter, 10/100Mbps 1*Duplex SC - 1*LAN MM 550m SC DC5V power supply, TRx: 1310nm or 850nm |
| RD-GS2401-LX | Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Duplex SC - 1*LAN SM 20km SC DC5V power supply, TRx: 1310nm |
