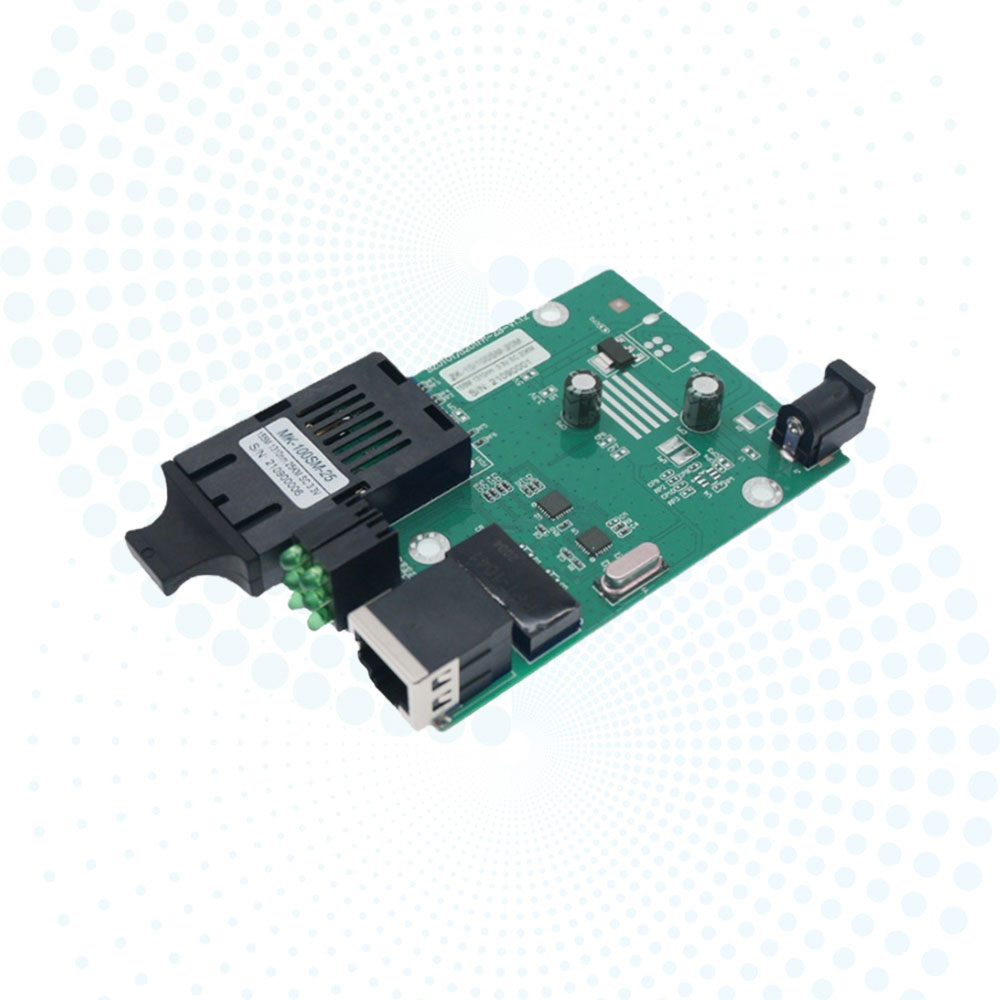

Brand-new complete circuit board, equipped with high-quality chips, ensuring more stable transmission.

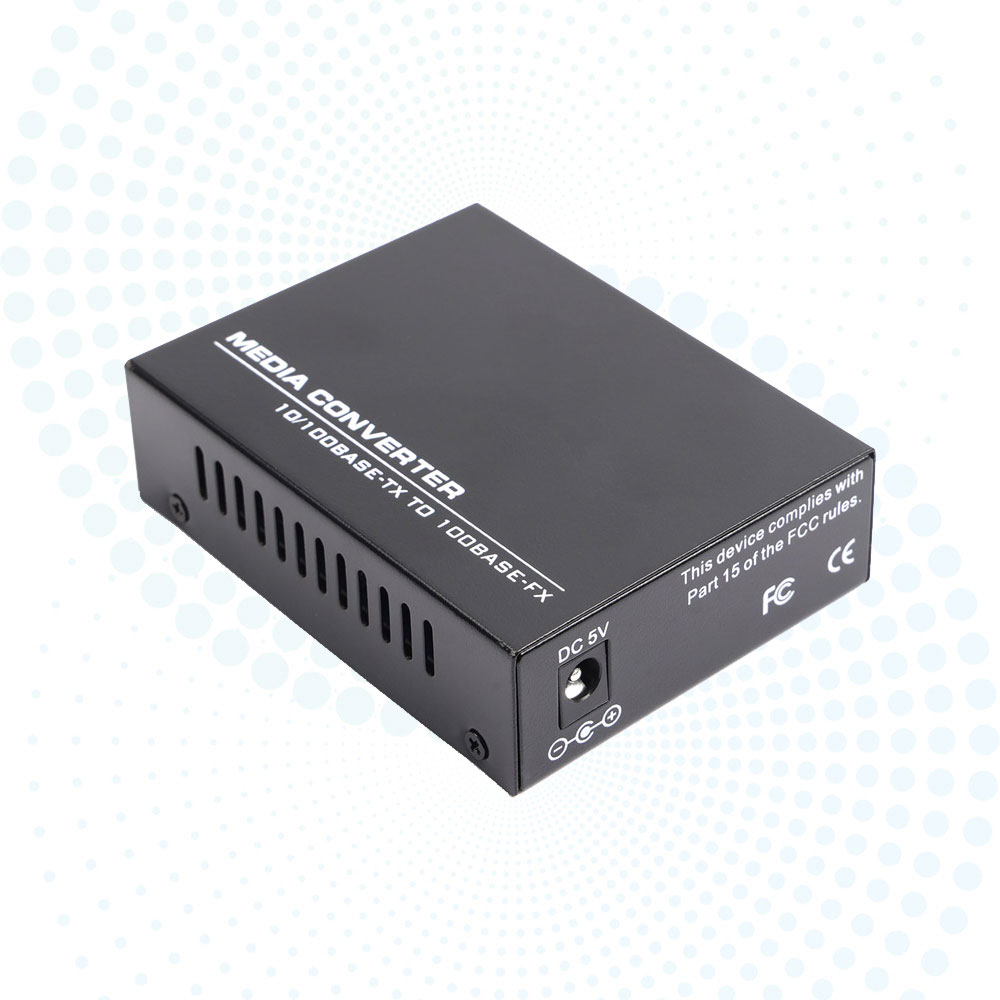

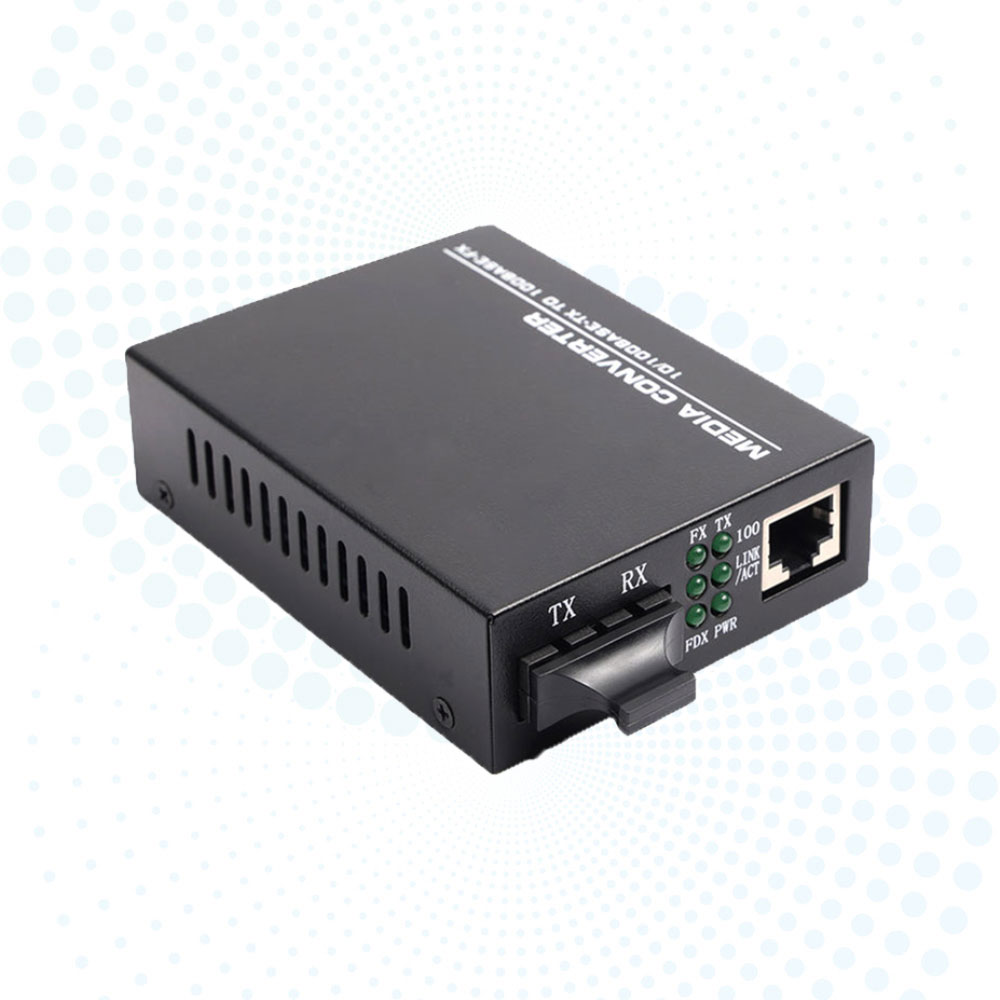

Two sets of cooling holes are designed on both sides, effectively reducing the heat generated during operation, enabling the equipment to work for a longer period of time.
| Parameter Name | Details & Specifications | |
|---|---|---|
| Interface Characteristics | ||
| Interface | 1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
|
| Ethernet Port | 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
| Optical Fiber Port | 155Mbps, single-mode dual fiber SC interface | |
| Optical Cable/ Distance | single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km. | |
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
|
| Forwarding Mode | Store and Forward (Full Wire Speed) | |
| Switching Capacity | 1.0Gbps | |
| Forwarding Rate@64byte | 0.3Mpps | |
| MAC | 1K | |
| Buffer Memory | 768K | |
| Jumbo Frame | 1536byte | |

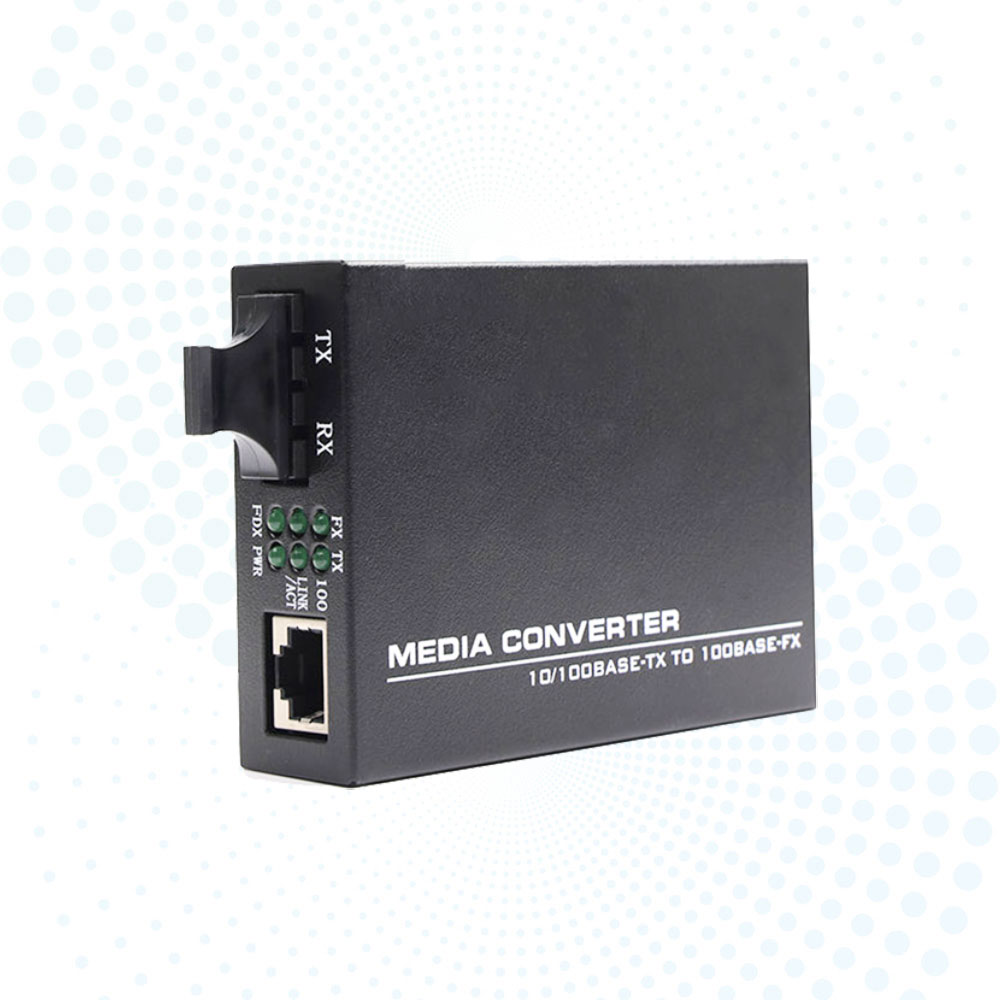

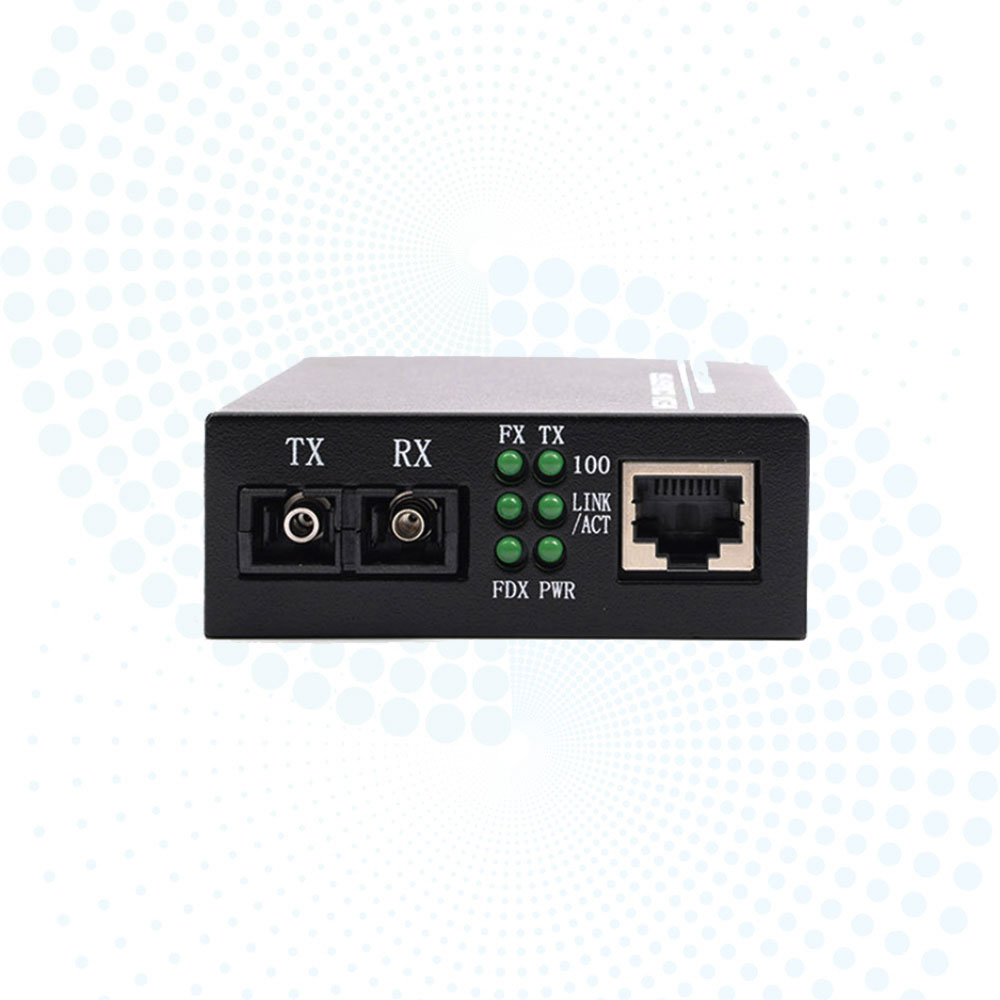

| LED Indicator | Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green), Fiber: FX (green), rate: 10/100 (green) |
|
| Power | ||
| Total PWR / Input Voltage | 3W/ (5VDC) | |
| Power Consumption | Standby < 1W, Full Load < 3W | |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C; 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+85°C; 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 94*71*26mm | |
| Net / Gross Weight | < 0.2kg / < 0.4kg | |
| Installation | Desktop, 2U-14 slot rack | |
| Certification & Warranty | ||
| Lightning protection / level | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
| Model | Introduction | Function |
|---|---|---|
| RD-FE101-20A RD-FE101-20B |
Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS2401-SX | Fiber Media Converter 10/100Mbps 550m | Fiber Media Converter, 10/100Mbps 1*Duplex SC - 1*LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm |
| RD-GS2401-LX | Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Duplex SC - 1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
We are an optical communication manufacturer founded in 2017. Our products are sold globally, including key markets in Asia, North America, Europe, the Middle East, and South America, served by a dedicated team.
You can purchase a full range of fiber optic equipment, including FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other optical communication solutions.
We are a top-tier optical communication supplier. Our core focus lies in PON and switching solutions, backed by a strong engineering team that delivers reliable products and value-added services globally.
This device features a 10/100Base-TX RJ45 data port and a 155M uplink SC fiber port. It uses store-and-forward mode, supports a transmission range from 550m up to 120km, is housed in an IP30-rated protective casing with 4KV lightning protection, and operates in temperatures ranging from -20°C to +55°C.
