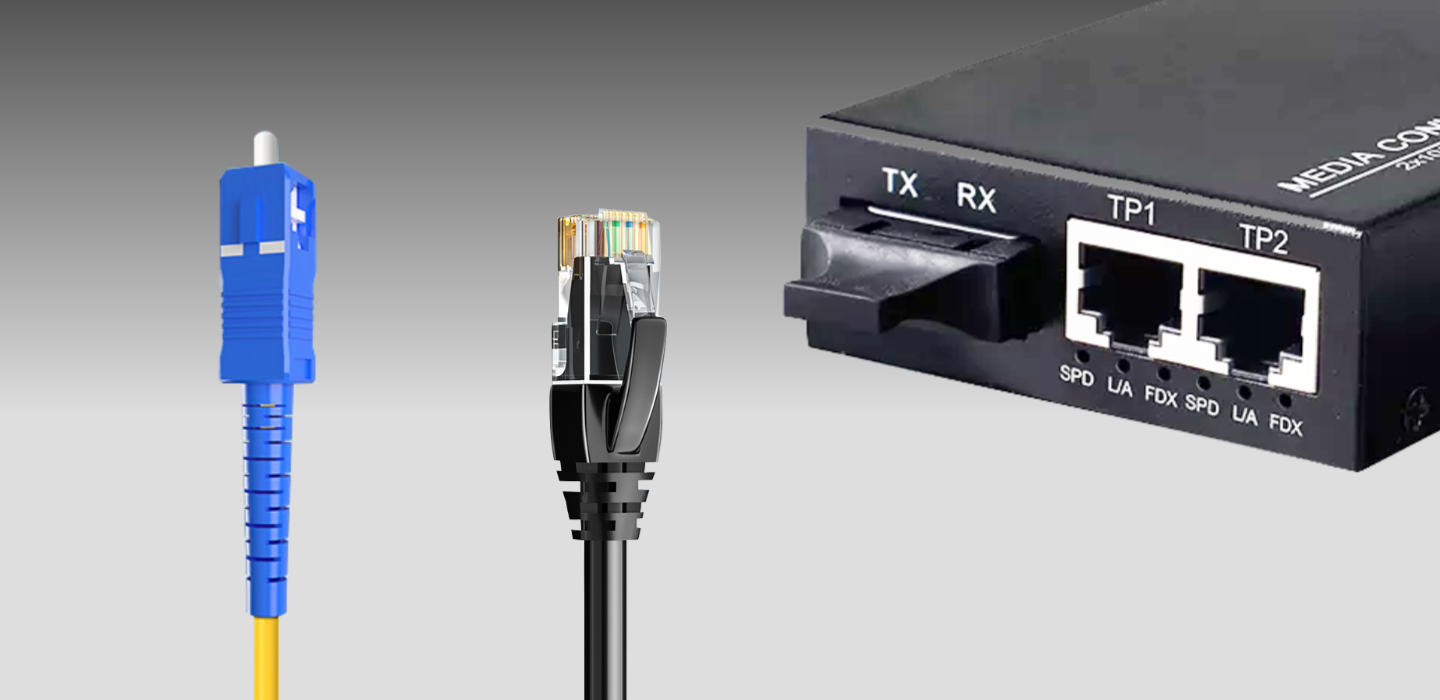

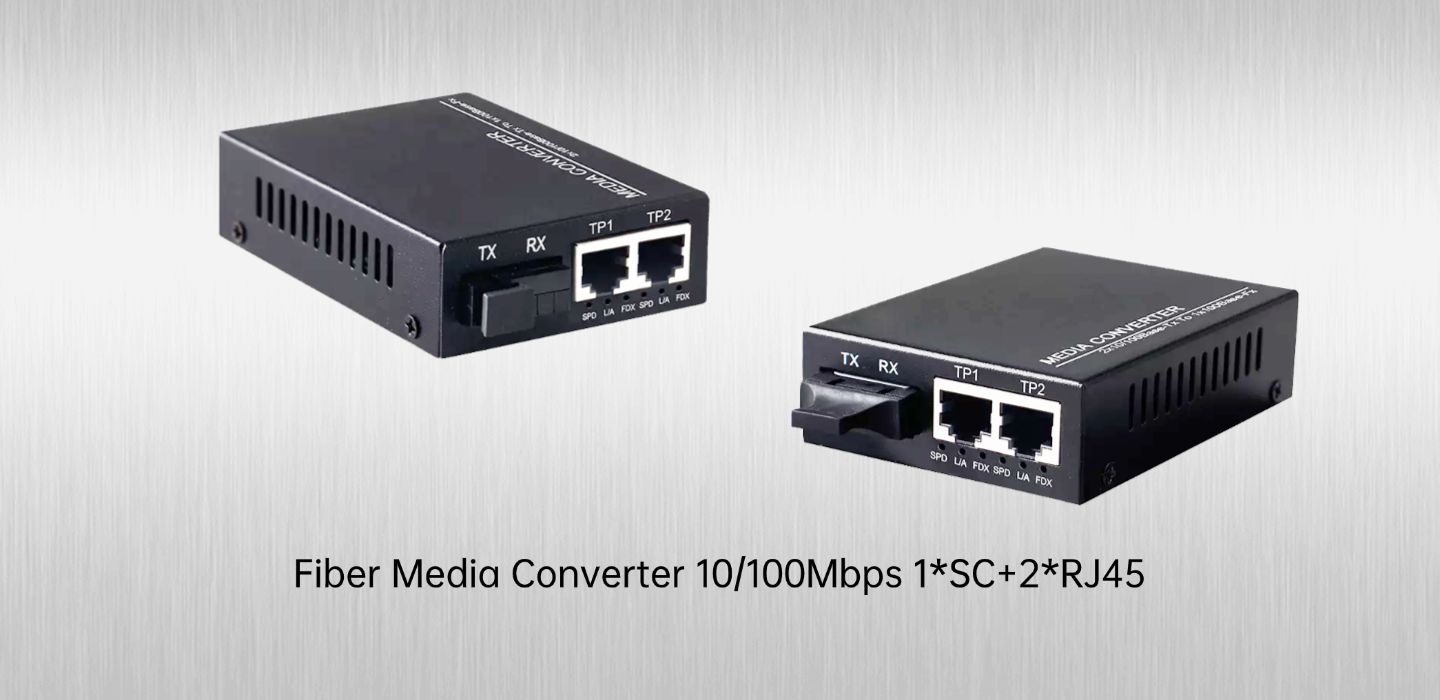

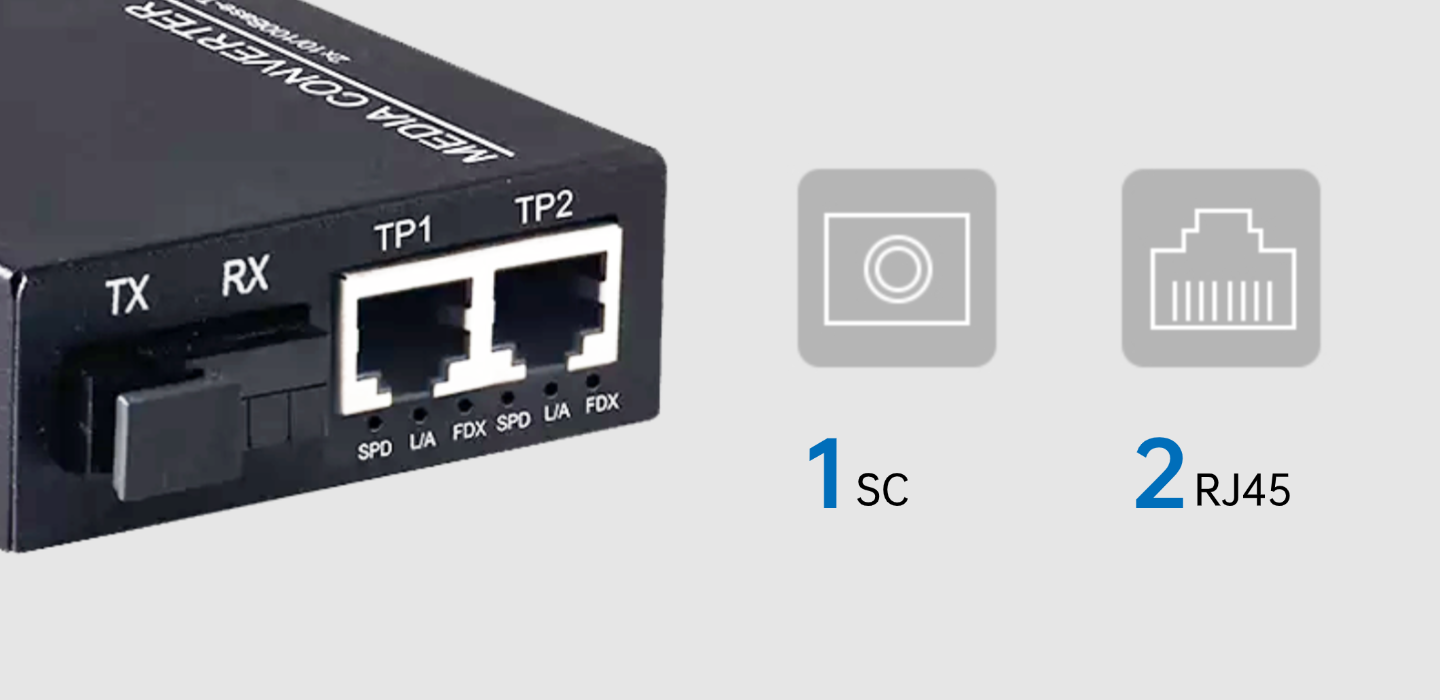

1 SC optical fiber interface + 2 gigabit RJ45 interfaces ensure stable and smooth data transmission
Plug-and-play, no setup required
Compact layout engineered for efficient heat dissipation and simplified connectivity
| Parameter | Details |
|---|---|
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Interface | 1 * 155Mbps SC optical fiber interface 1 * 10/100Mbps adaptive RJ45 port |
| Wavelength | 1310nm |
| Distance | Maximum transmission distance: 3km |
| Optical Parameter | Optical power: -17 ~ -1dBm Reception sensitivity: -22dBm |
| Media | Cable: Category 5 or higher UTP and STP Fiber: 50/125um or 62.5/125um multimode optical fiber |
| Power | DC12V/1A |
| Size | 95mm * 74mm * 27mm |
| Operating Environment | Working temperature: -20°C to 60°C Storage temperature: -40°C to 85°C Working humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 90% RH (non-condensing) |
| Model Number | Optic Fiber | Wavelength | Distance |
|---|---|---|---|
| RD-FE102-M | Dual fiber Singlemode | 850nm | 550m |
| RD-FE102-A | SMF (1) | 1310nm / 1550nm | 3km |
| RD-FE102-B | SMF | 1550nm / 1310nm | 3km |
| RD-FE102-20A | SMF | 1310nm / 1550nm | 20km |
| RD-FE102-20B | SMF | 1550nm / 1310nm | 20km |
| RD-FE102-40A | SMF | 1310nm / 1550nm | 40km |
| RD-FE102-40B | SMF | 1550nm / 1310nm | 40km |
