| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Interface | • 1*155Mbps SC optical fiber interface • 8*RJ45 10/100Mbps |
| Distance | • 100m @ Cat5e • 20km @ SMF |
| Wavelength | • A: Tx1310nm/Rx1550nm • B: Tx1550nm/Rx1310nm |
| Transmission media | • Cable: Cat5e or higher UTP and STP • Optical Fiber: 9/125μm single-mode optical fiber |
| Optical parameter | • Average emission power: -9 to -3 dBm • Receiving sensitivity: -22 dBm |
| Power | DC 5V/2A |
| Size | 195mm * 92mm * 28mm |
| Environment | • Operating temperature: -5°C to 60°C • Operating humidity: 10% to 90% RH (non-condensing) • Storage temperature: -40°C to 70°C • Storage humidity: 5% to 90% RH (non-condensing) |
| Model Code | Description |

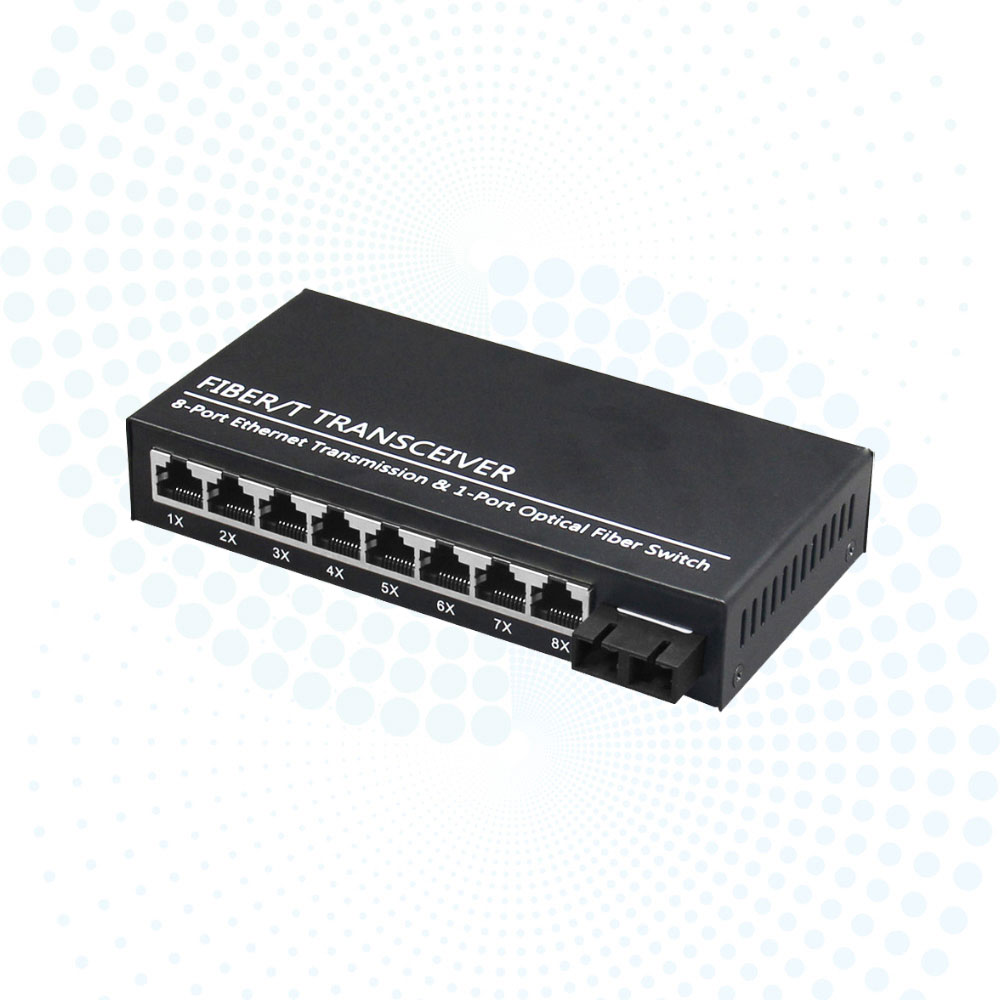

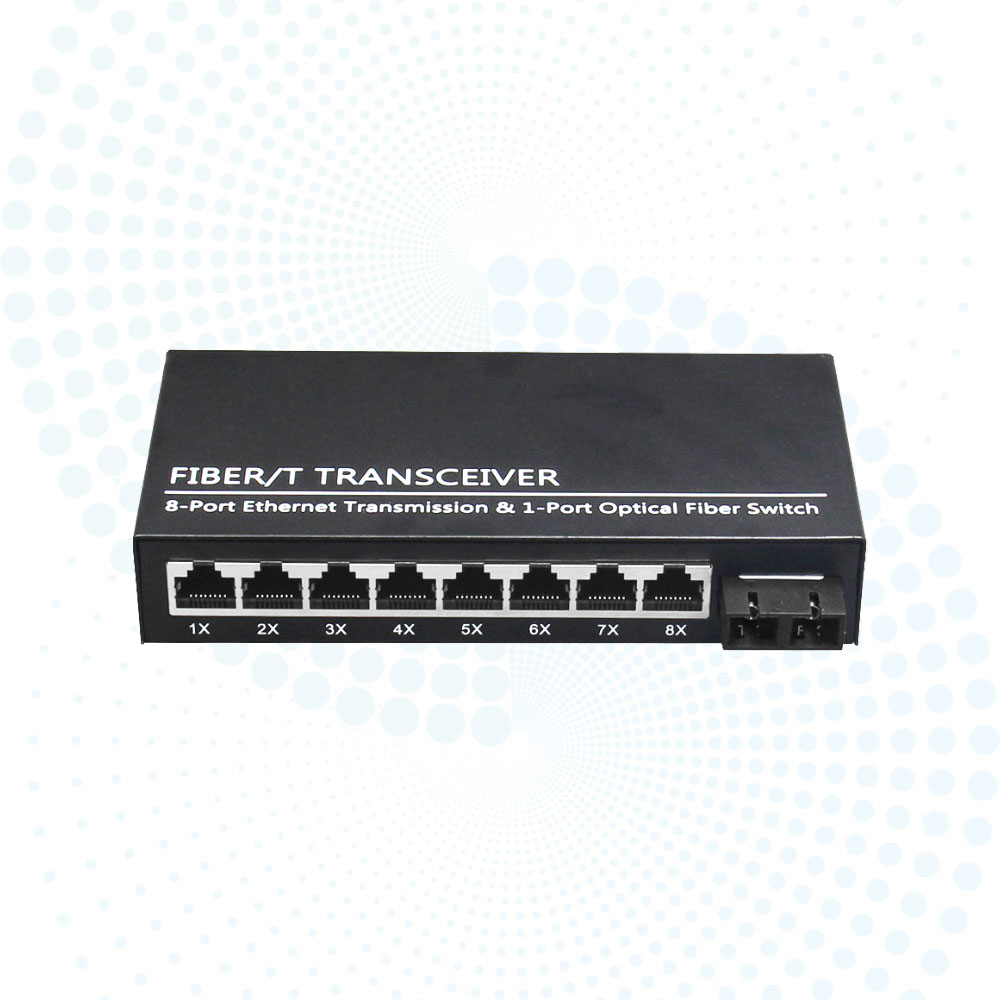

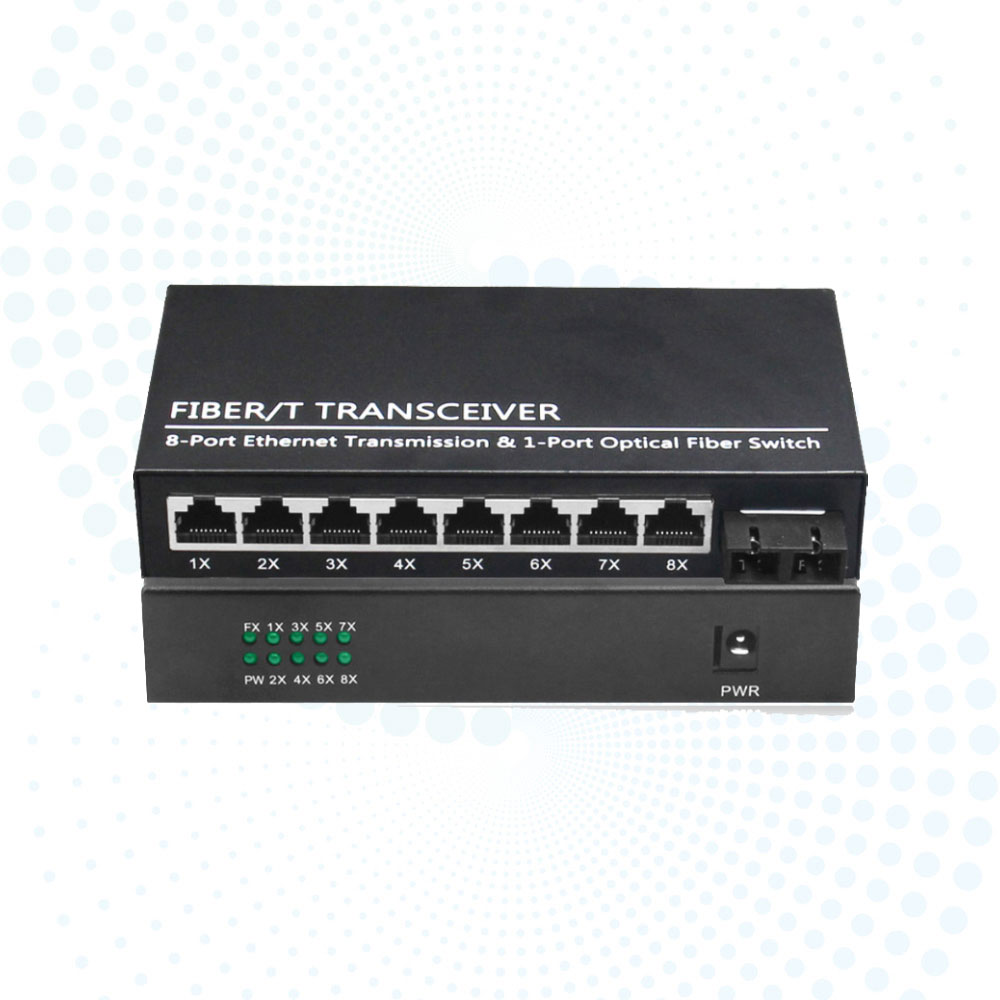

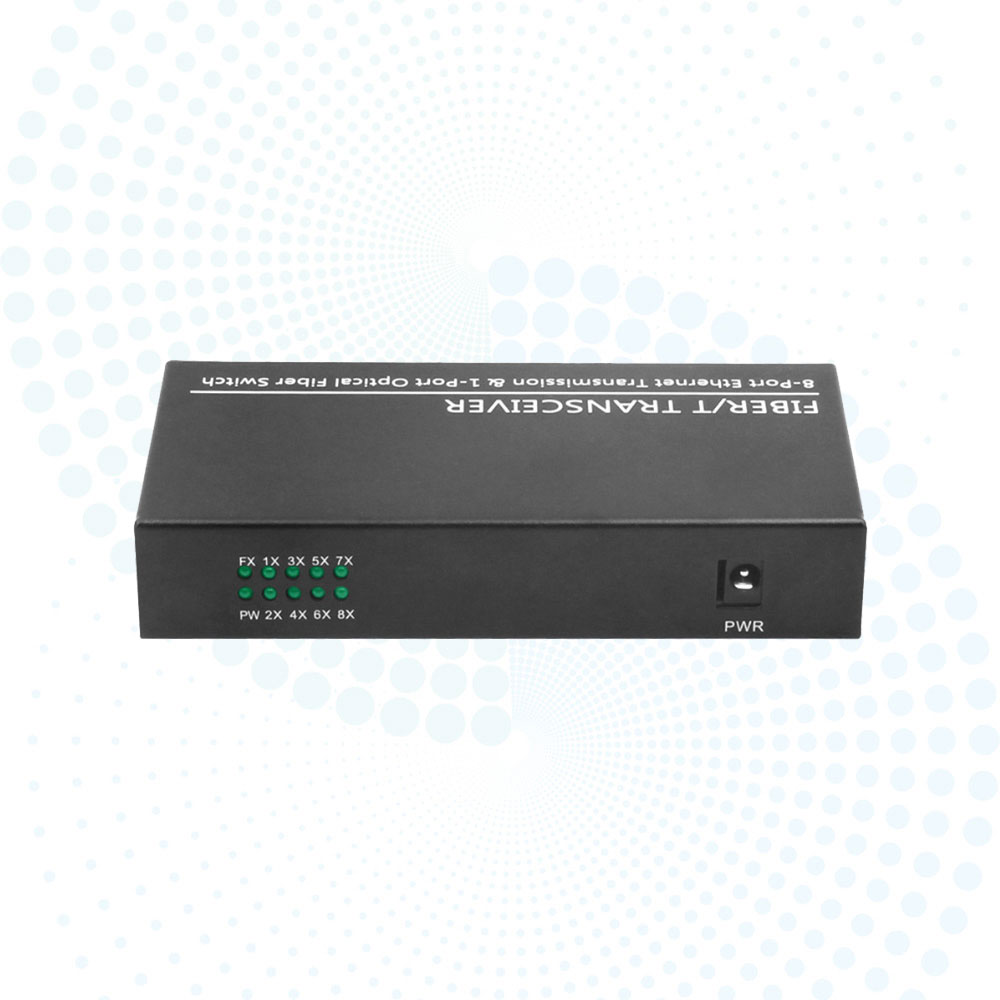

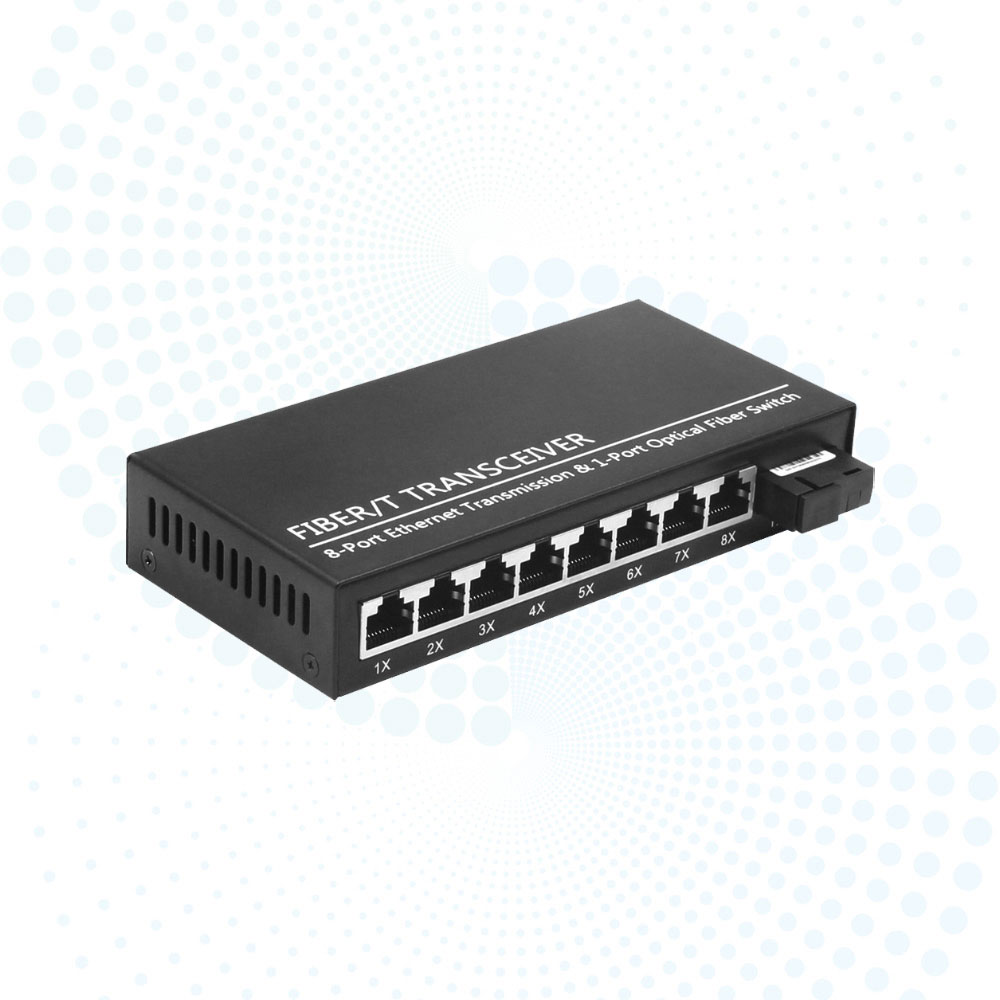

| RD-FE108-T | Fiber Media Converter 10/100MB 1*SC + 8*RJ45 (1310-TX) |
| RD-FE108-R | Fiber Media Converter 10/100MB 1*SC + 8*RJ45 (1550-TX) |
