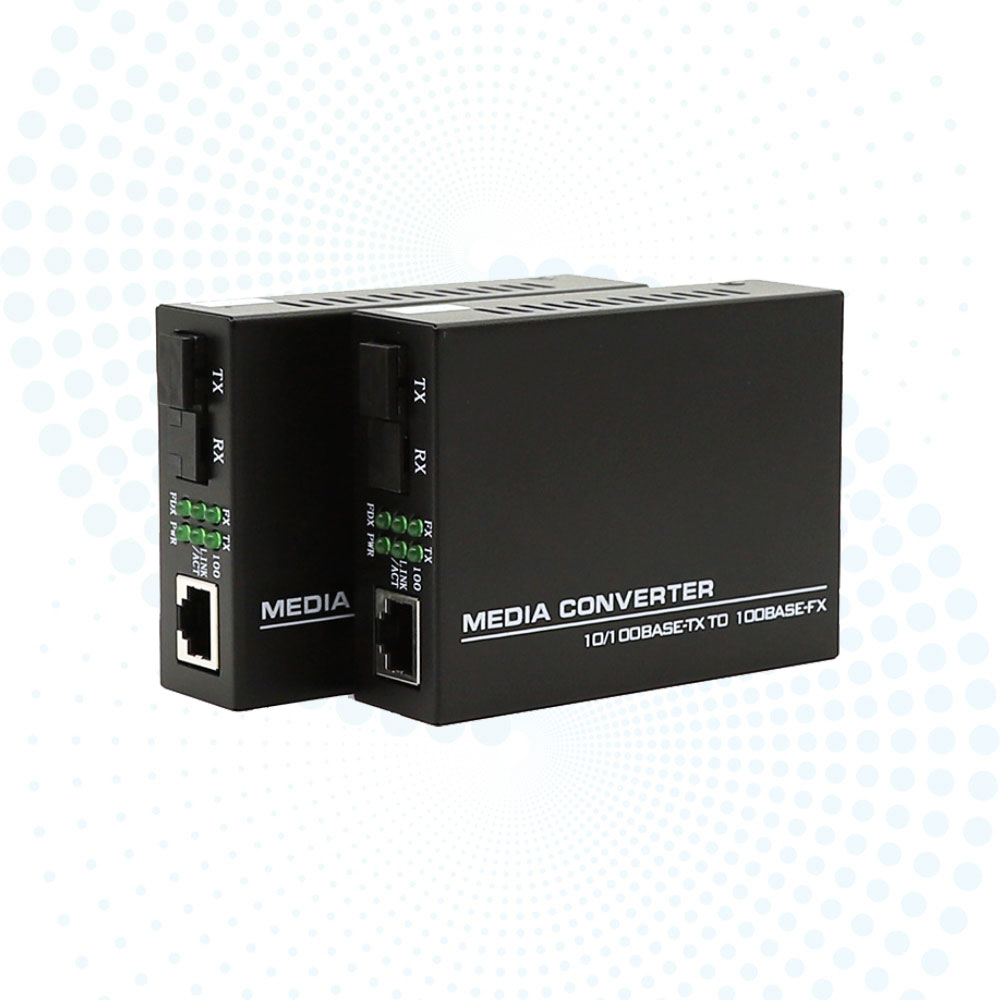

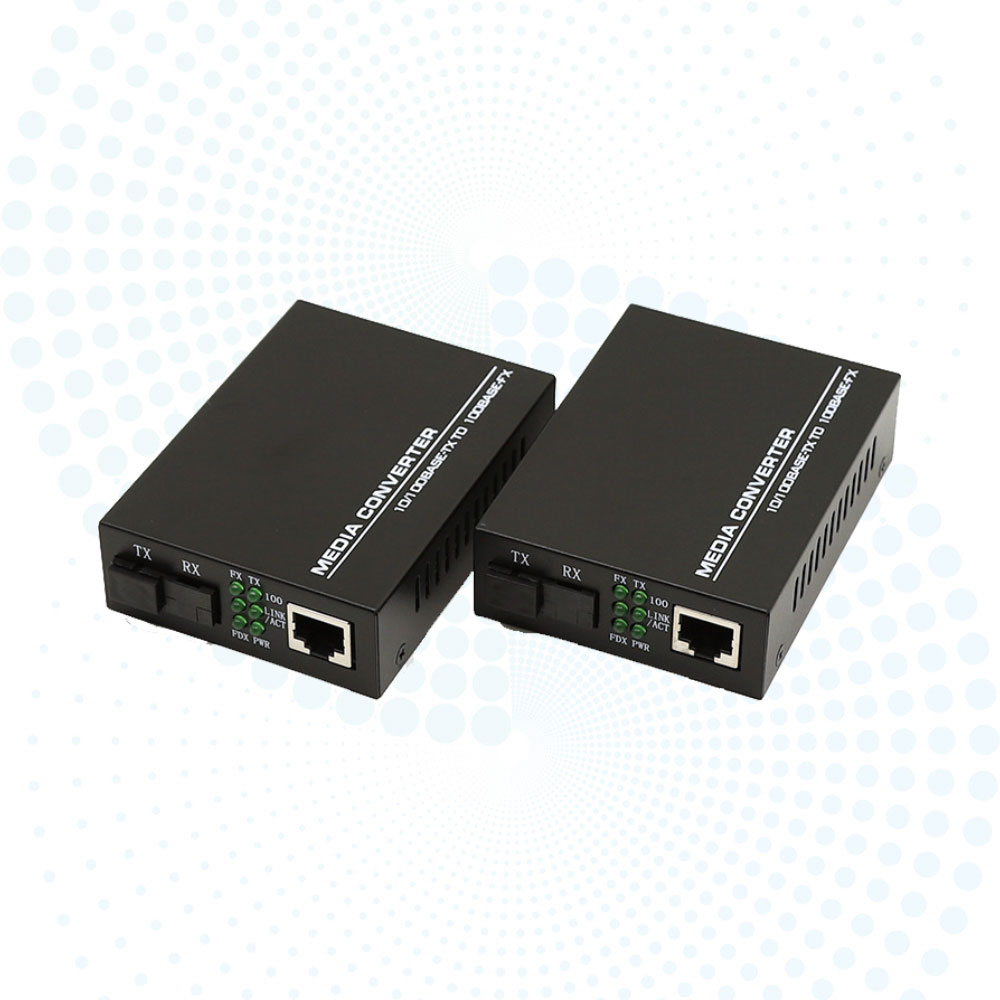

Fiber Media Converts converts electrical signals into optical signals and transmits the signals over long distances through the fiber. It is applicable to applications such as security monitoring, wireless networks and fiber access.
Use WDM technology (wavelength division multiplexing technology), multiple wavelength channels can be carried on a single optical fiber without interfering with each other. Only one optical fiber is needed for data transmission and reception.
Data transmission is stable and smooth.
| Technical Parameters | |
|---|---|
| Interface Characteristics | |
| Interface | 1* 10/100Base-TX RJ45 port (Data) 1*155M uplink SC fiber port (Data) |
| Ethernet Port | 10/100Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3, 4, 5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Optical Fiber Port | 155Mbps, single-mode single fiber SC interface |
| Optical Cable/ Distance | Single mode: 1310nm / 0 ~ 40km, 1550nm 0 ~ 120km |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 1.0Gbps |
| Forwarding Rate@64byte | 0.3Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frame | 1536byte |

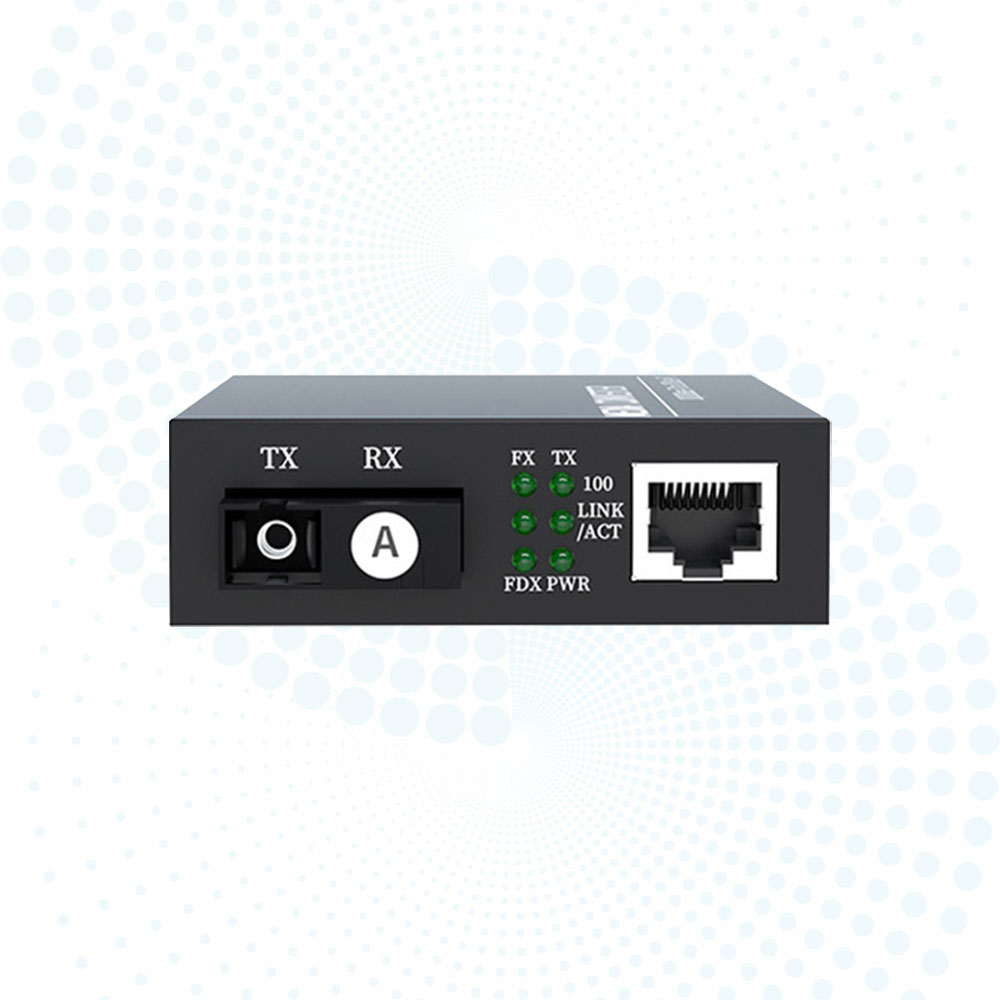

| LED Indicator | Power: PWR (green), Data: L/A (green), Single / duplex: FDX (green), Fiber: FX(green), rate: 10/100 (green) |
| Power | |

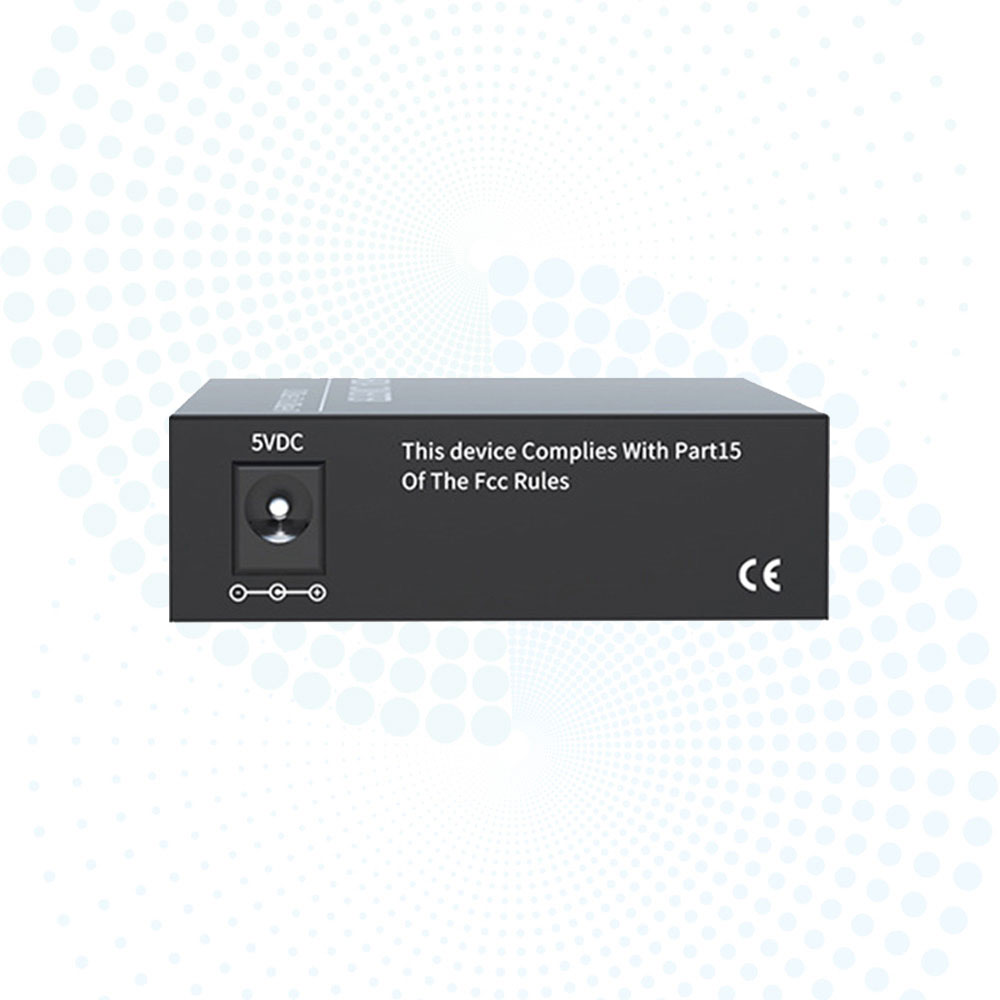

| Total PWR / Input Voltage | 3W / (5VDC) |
| Power Consumption | Standby < 1W, Full Load < 3W |
| Physical Parameter | |
| Operation TEMP / Humidity | -20 ~ +55°C; 5% ~ 90% RH Non-condensing |
| Storage TEMP / Humidity | -40 ~ +85°C; 5% ~ 95% RH Non-condensing |
| Dimension (L*W*H) | 94*71*26mm |
| Net / Gross Weight | < 0.2kg / < 0.4kg |
| Installation | Desktop, 2U-14 slot rack |
| Certification & Warranty | |
| Lightning protection / protection level | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 1 year, lifelong maintenance |
| Order Information | ||
|---|---|---|
| Model | Introduction | Function |
| RD-FE101-20A RD-FE101-20B |
Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS2401-SX | Fiber Media Converter 10/100Mbps 550m | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm |
| RD-GS2401-LX | Fiber Media Converter 10/100Mbps 20Km | Fiber Media Converter, 10/100Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
